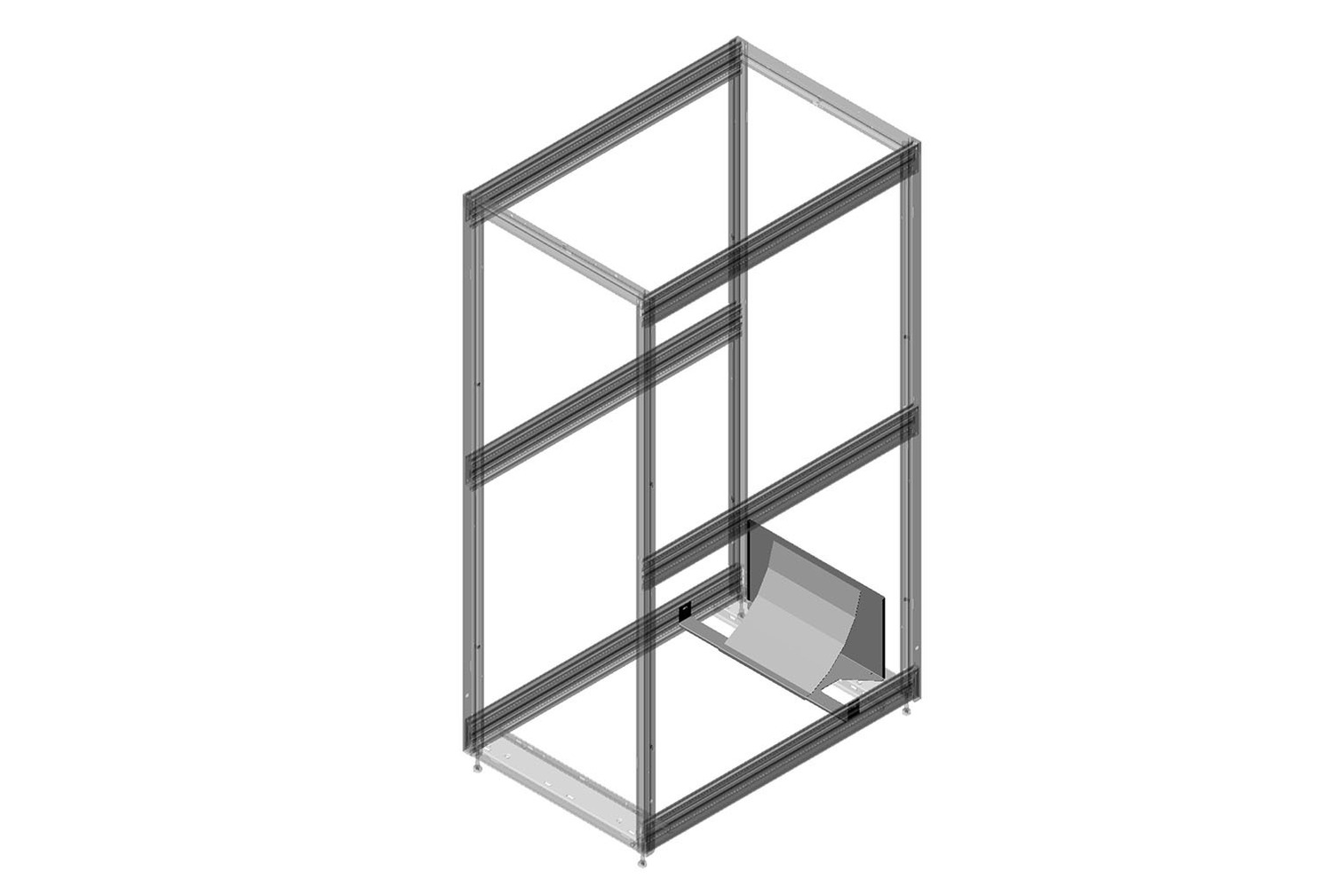

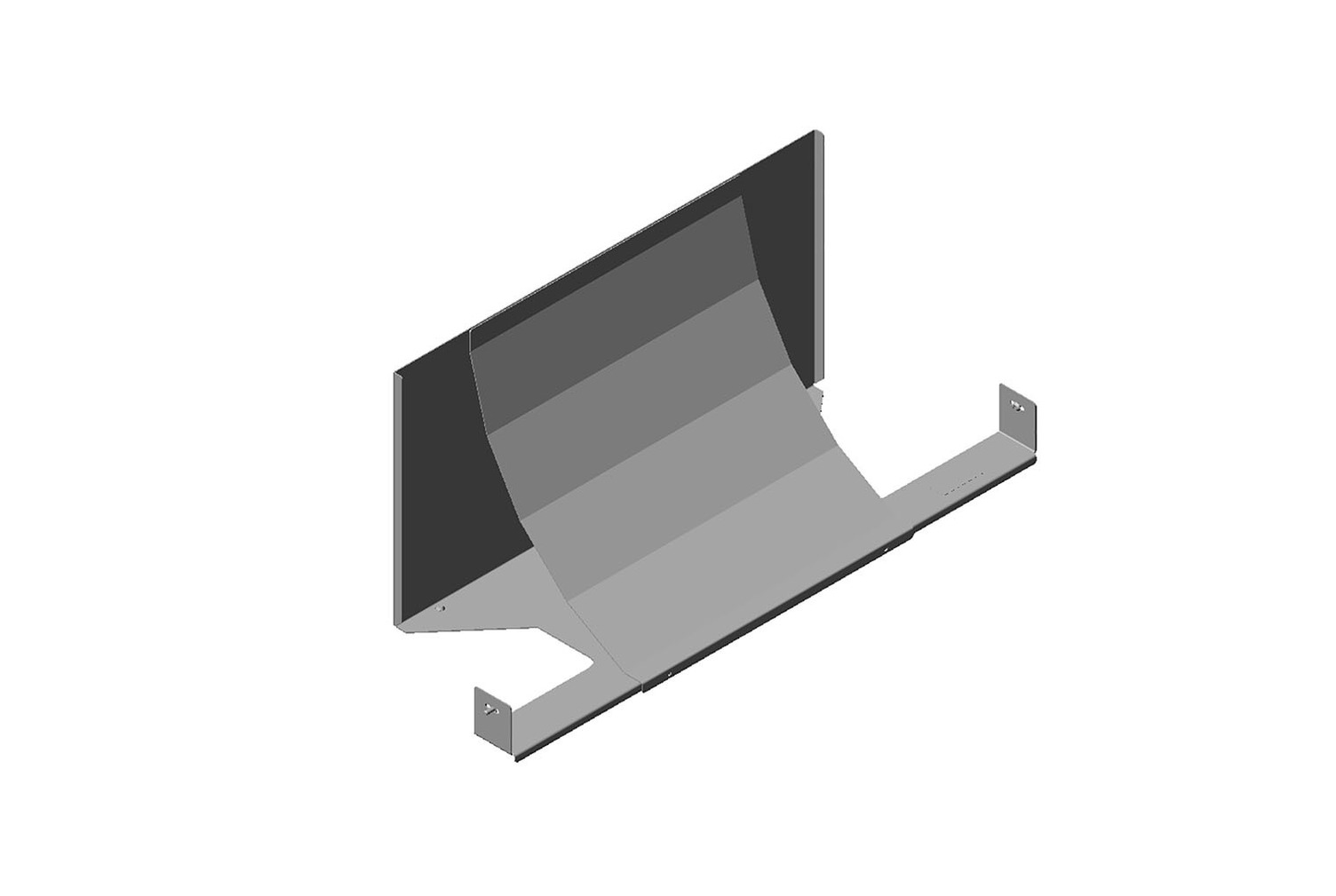

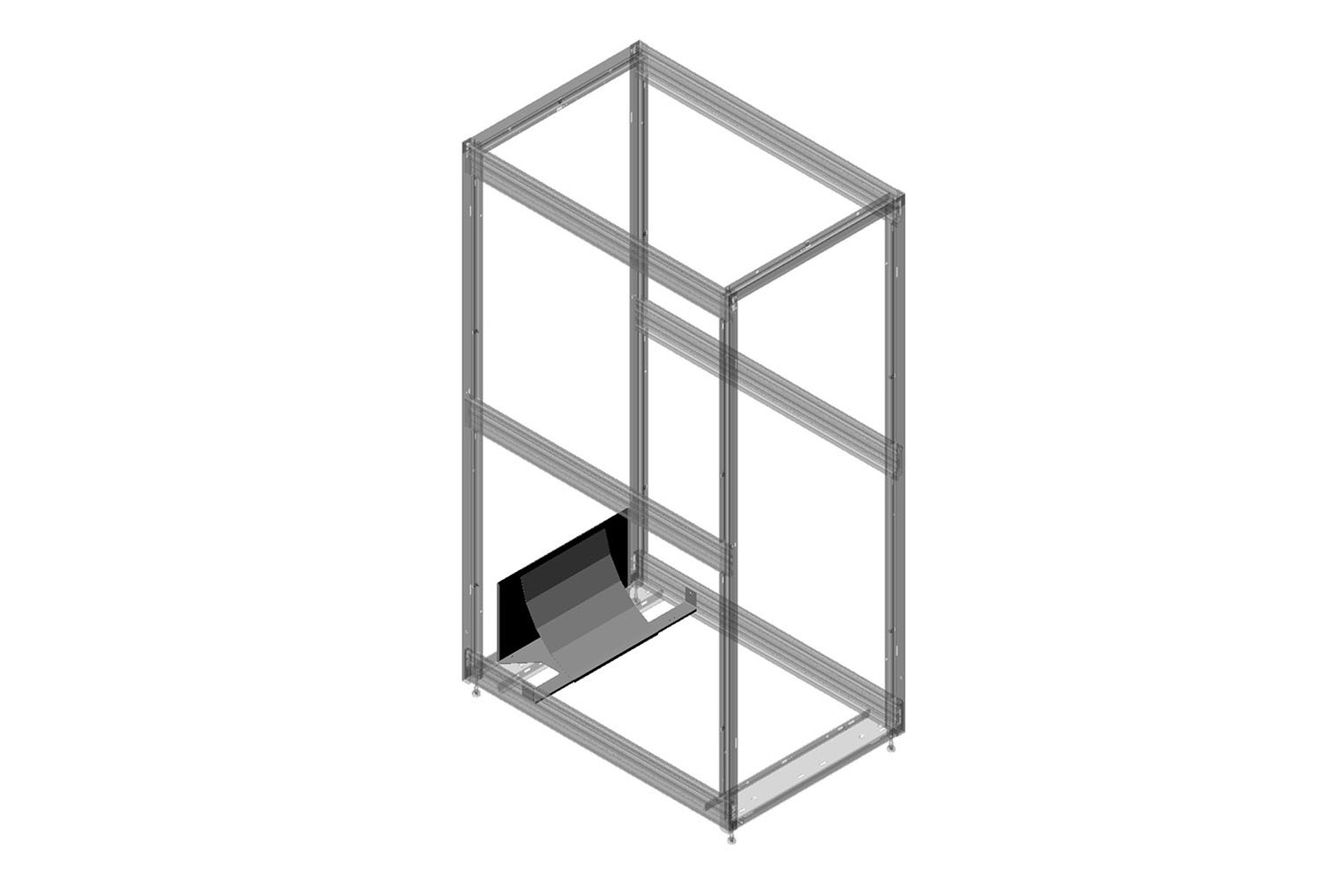

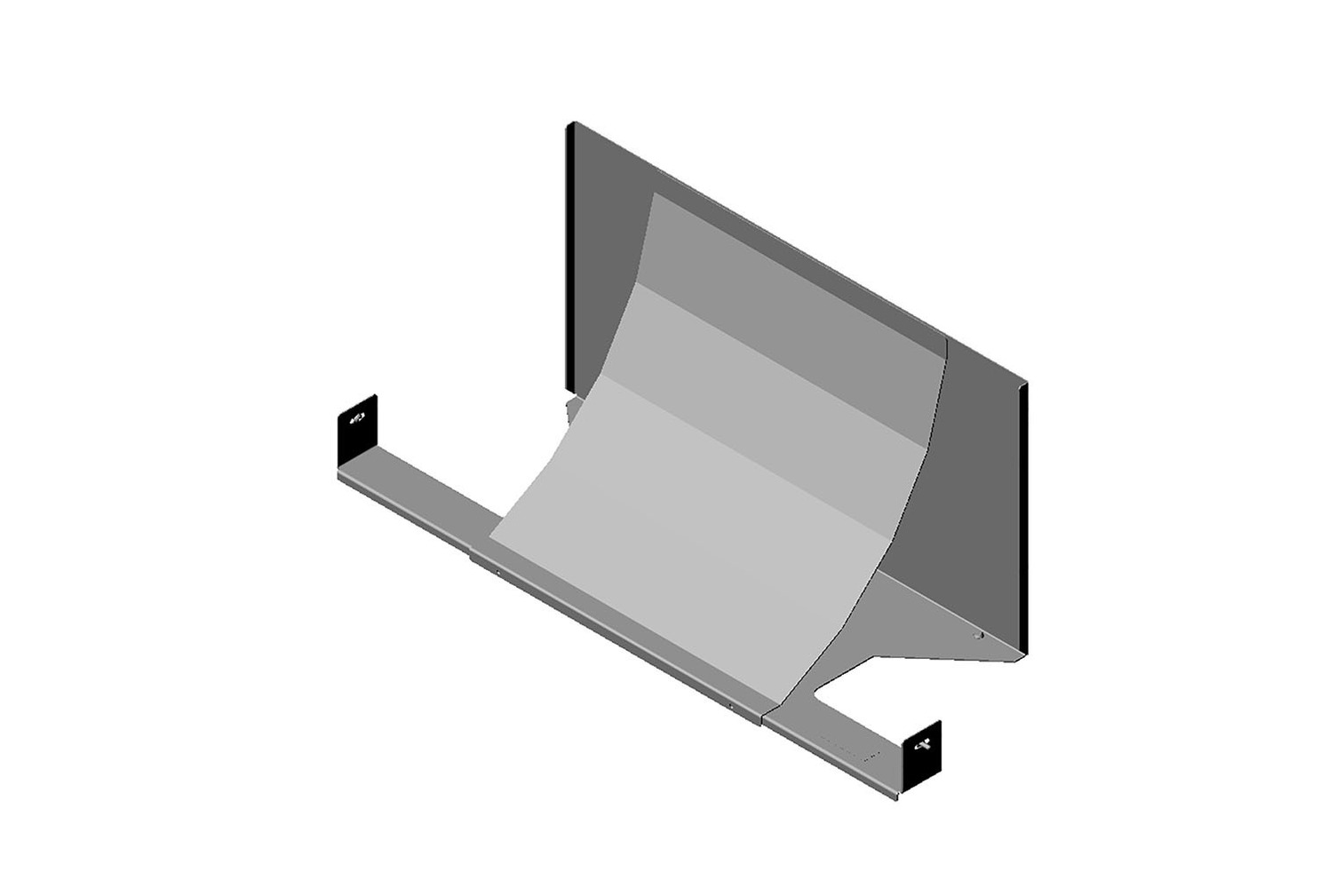

Air Director is an angled panel used at the back of cabinets for higher heat load applications with Vertical Exhaust Duct top panels to guide exhaust air toward the top of the cabinet. Configure with cabinet or available separately as an accessory.
Width

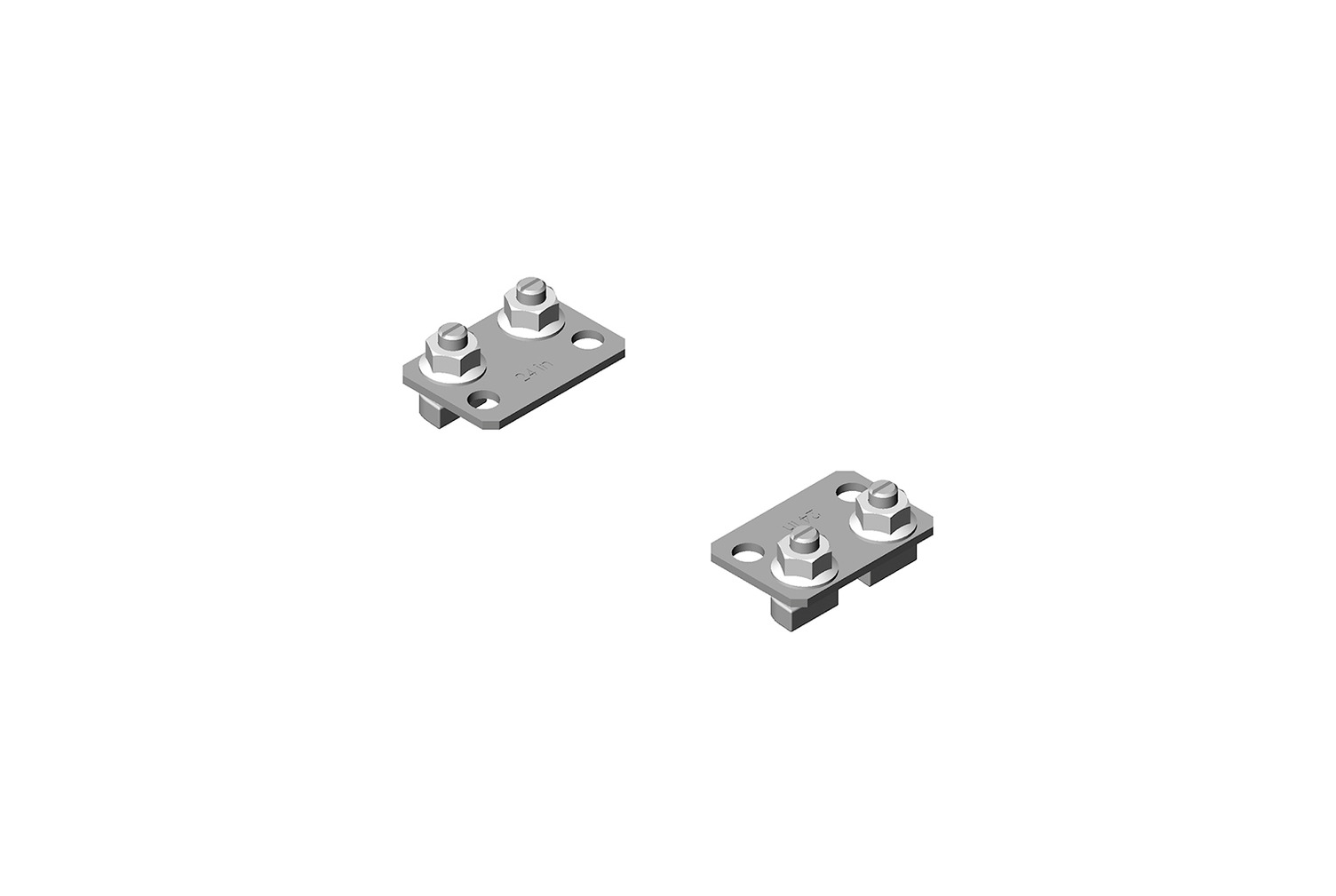

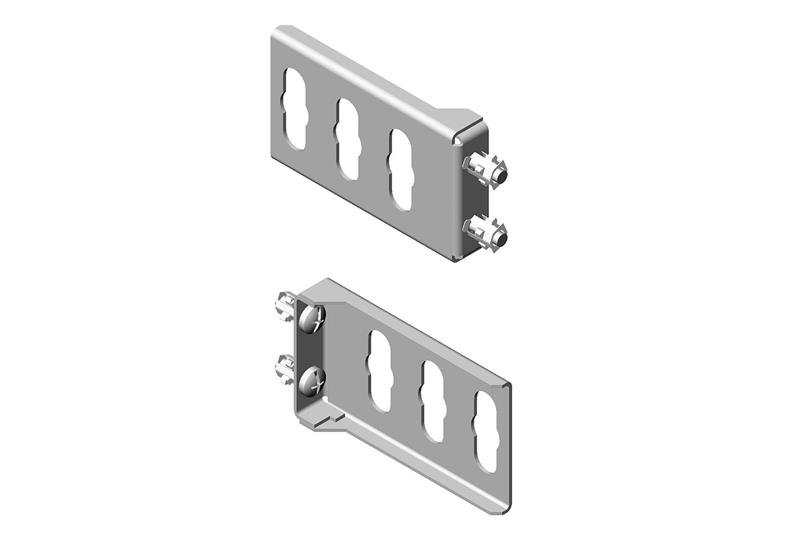

Baying Bracket Kit for ZetaFrame Cabinet; Zinc

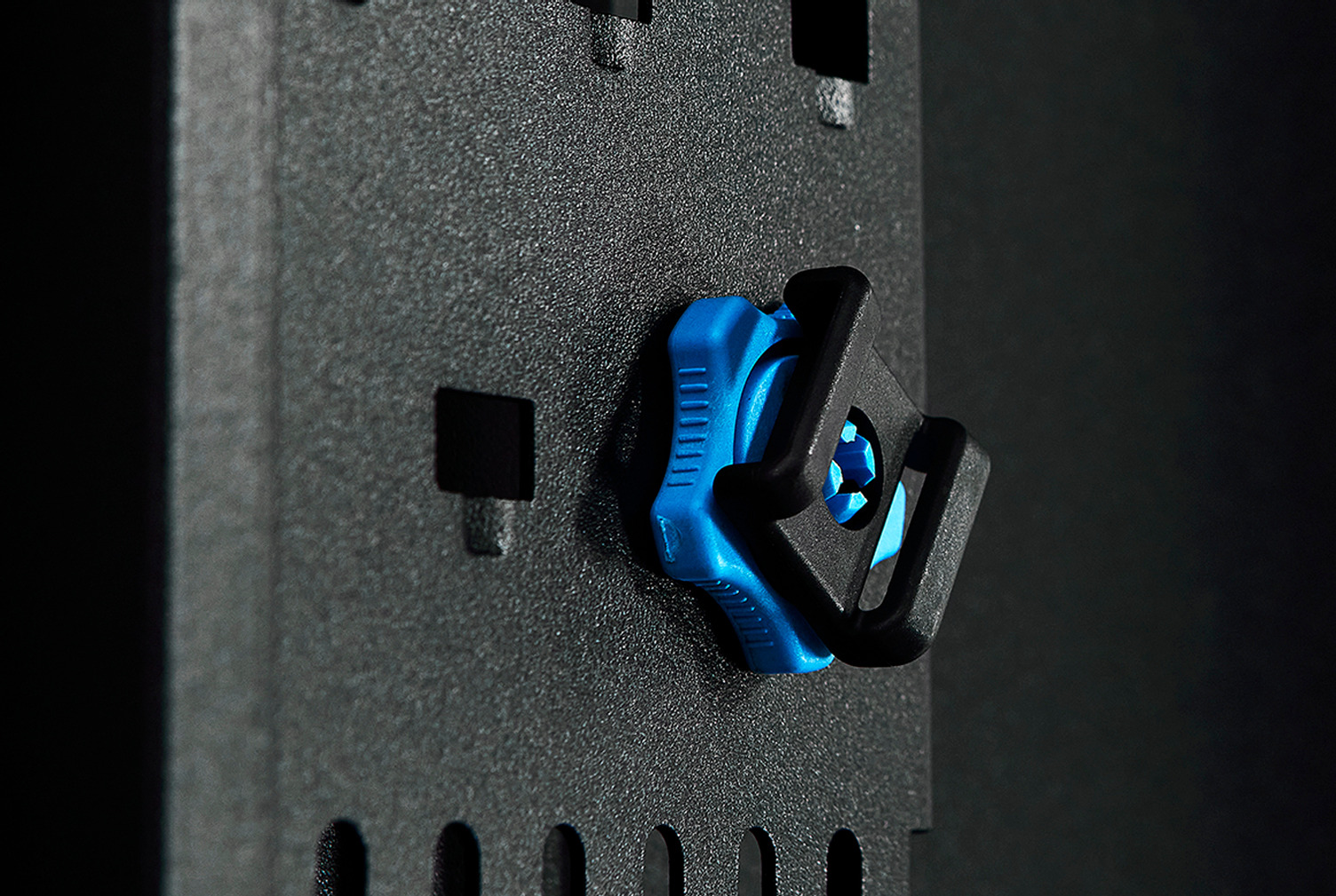

Creates simple, vertical pathways for small cable bundles
Cable Width, Color, Height RMU

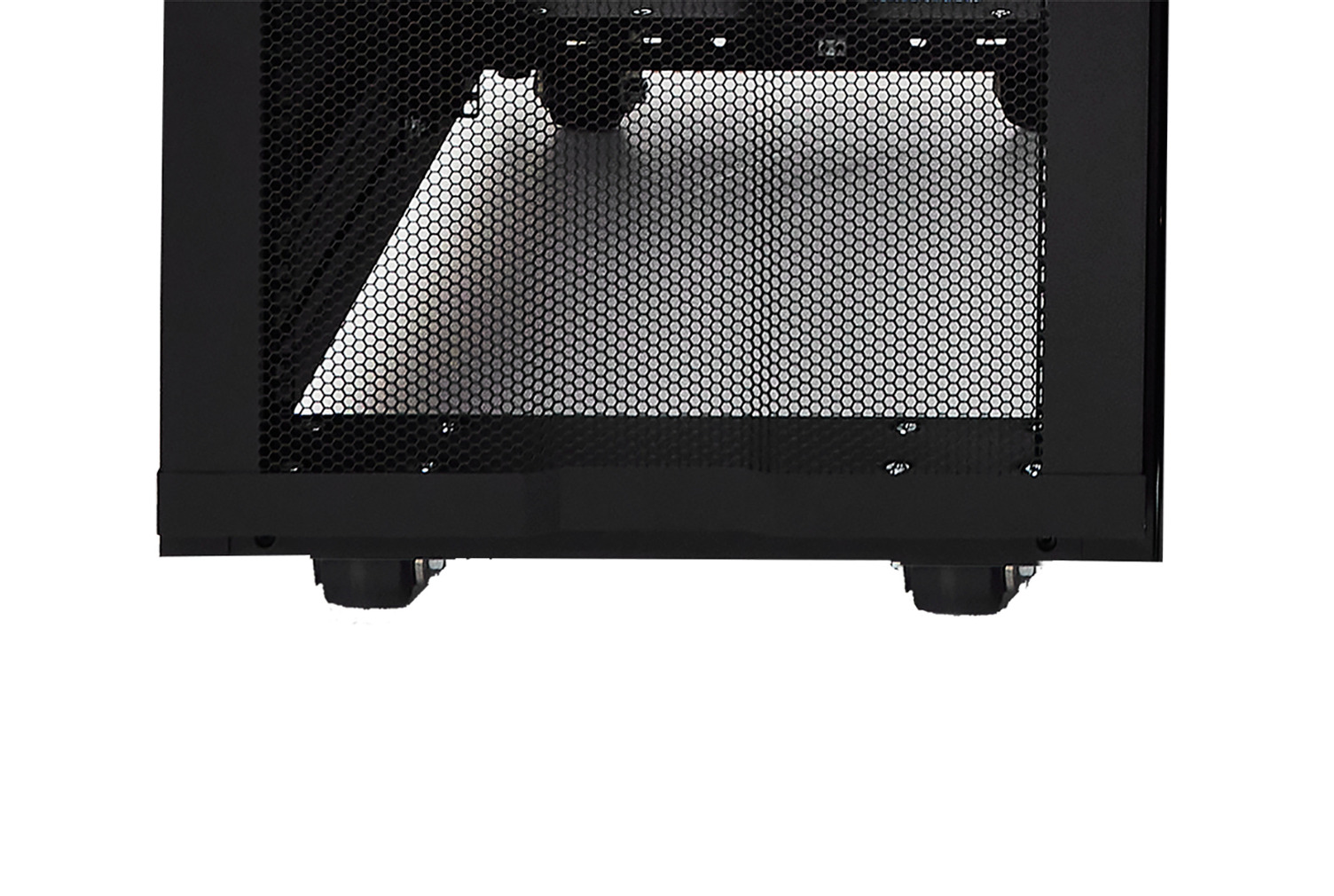

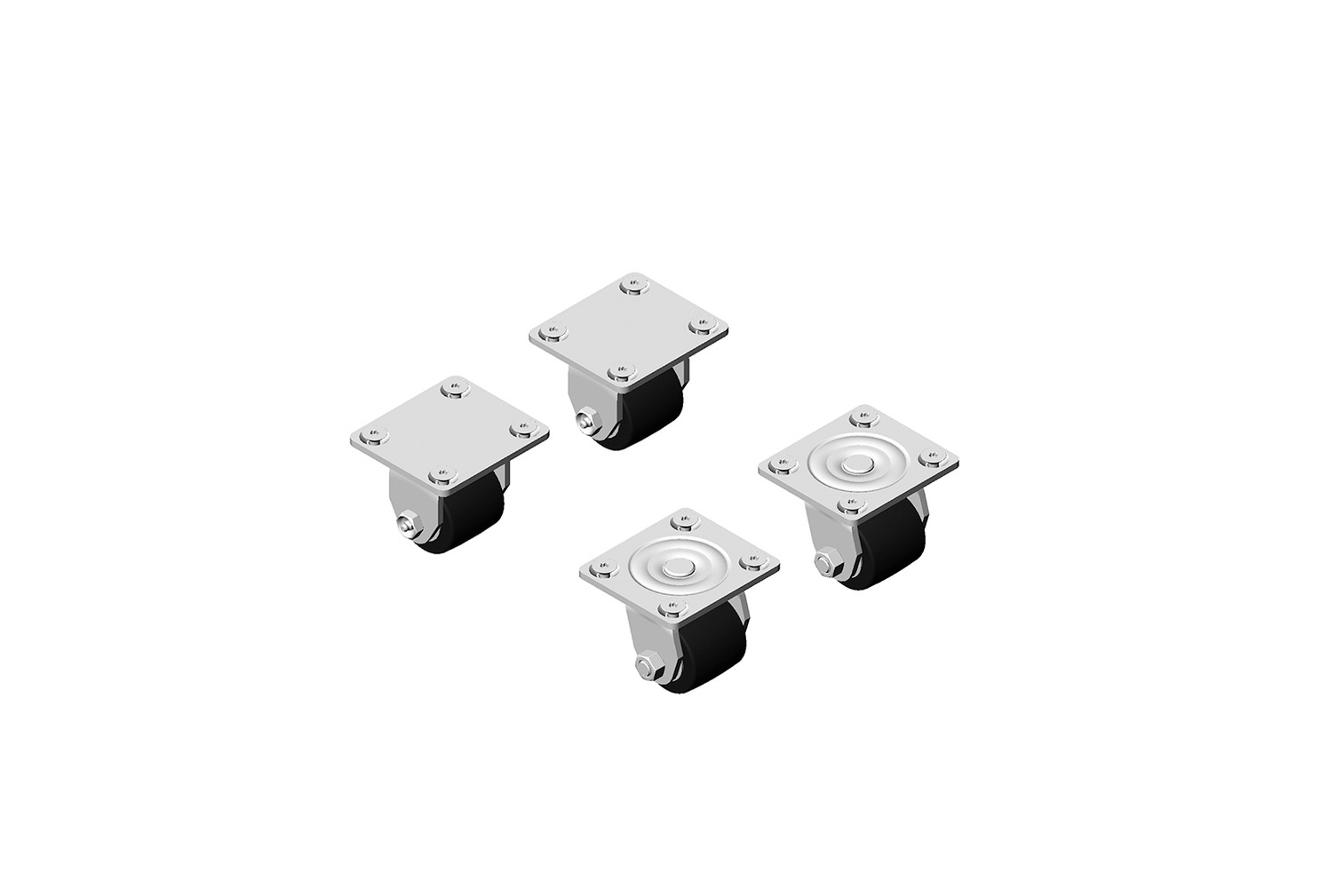

Caster Kit for ZetaFrame Cabinet; 2 Fixed Casters; 2 Swivel Casters

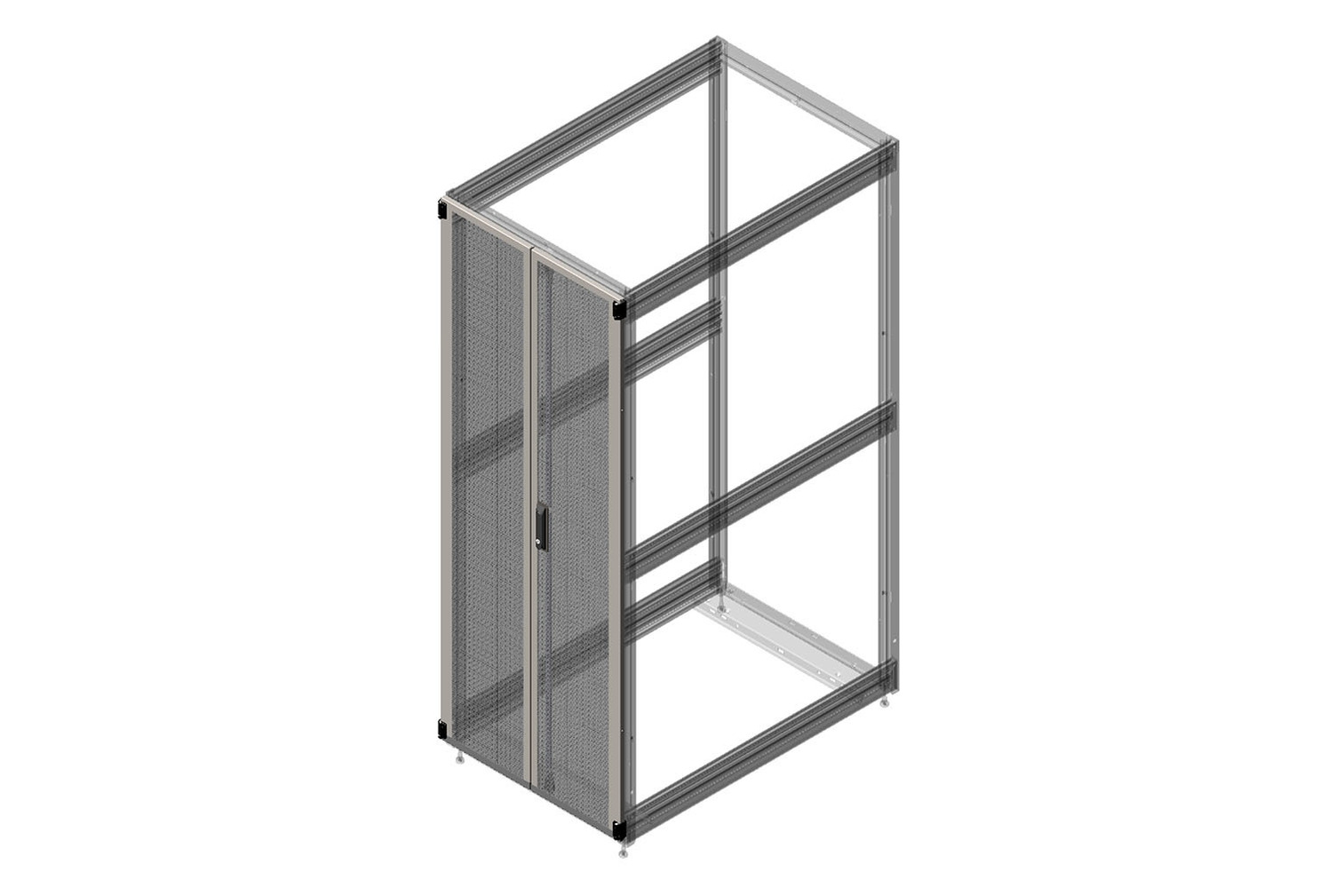

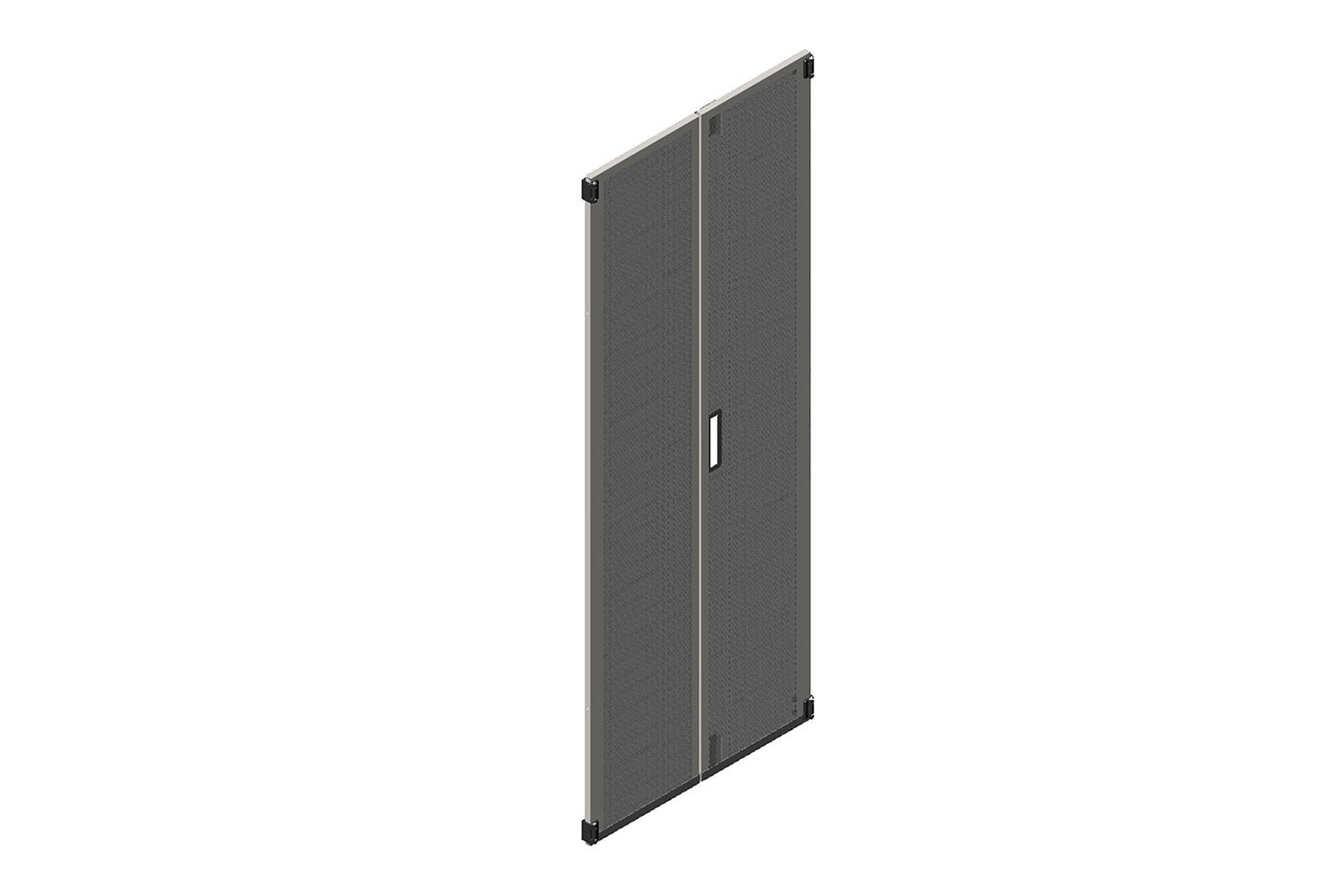

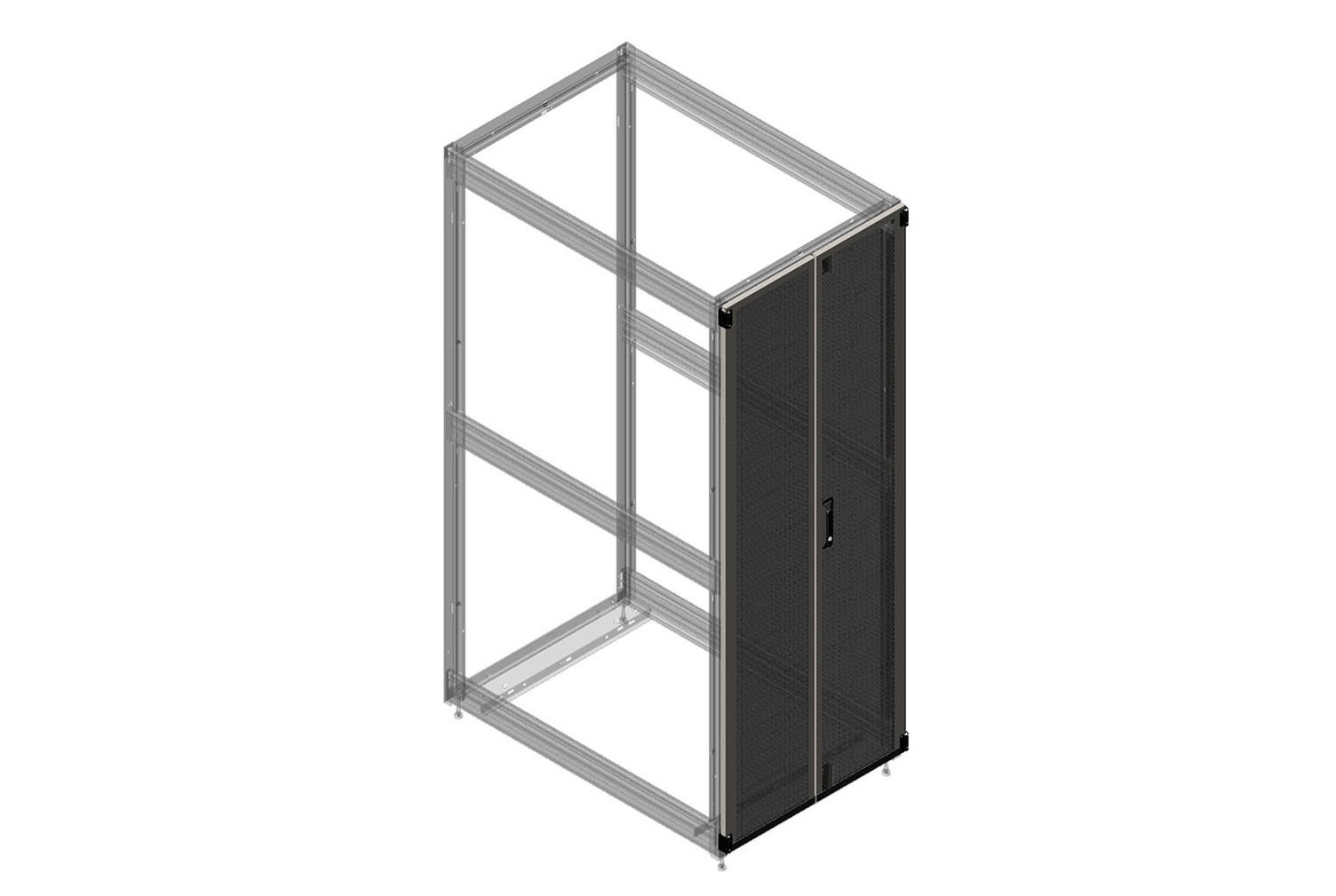

Double Perforated Metal Rear Door for ZetaFrame® Cabinet
Cabinet Width, Color, Height RMU

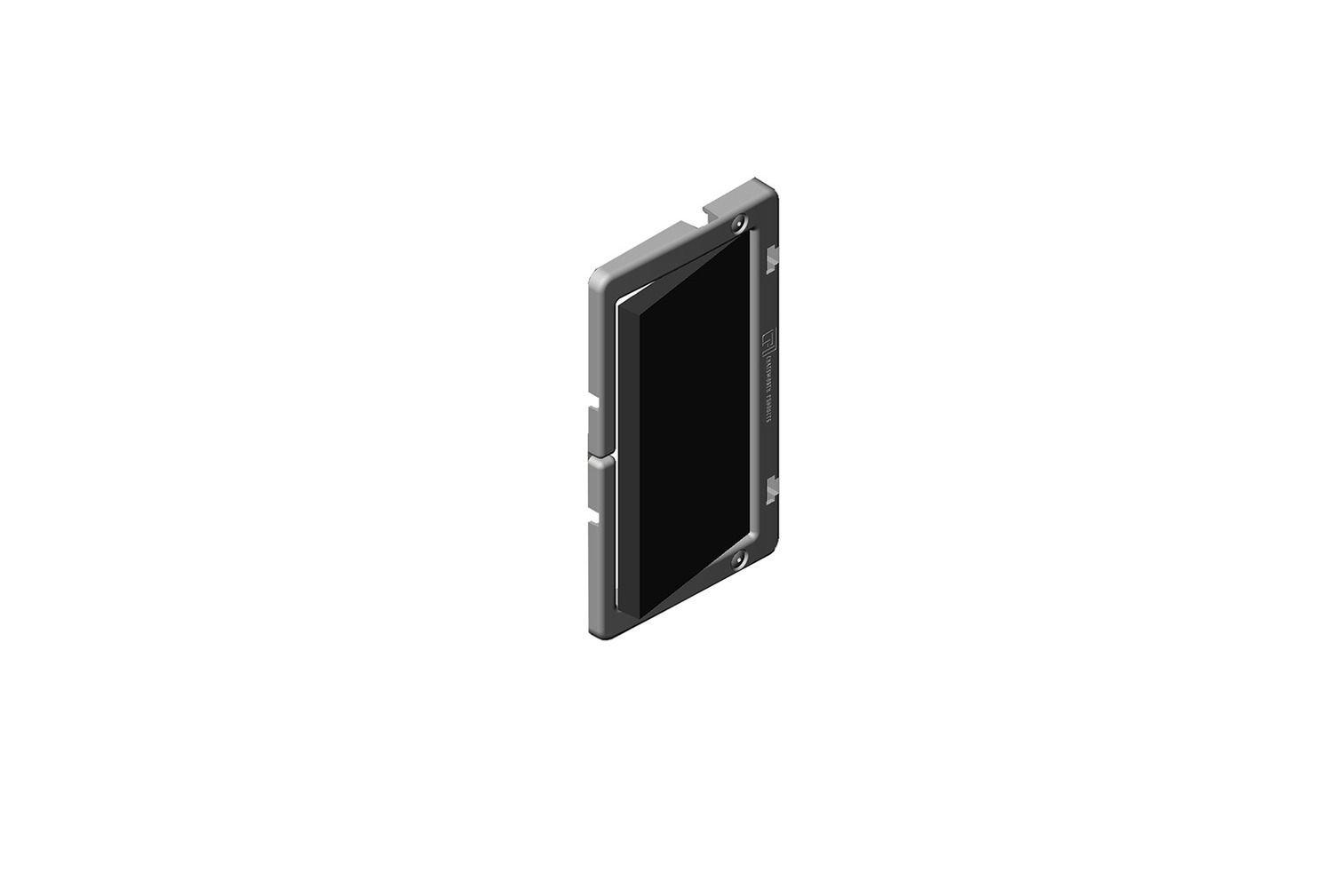

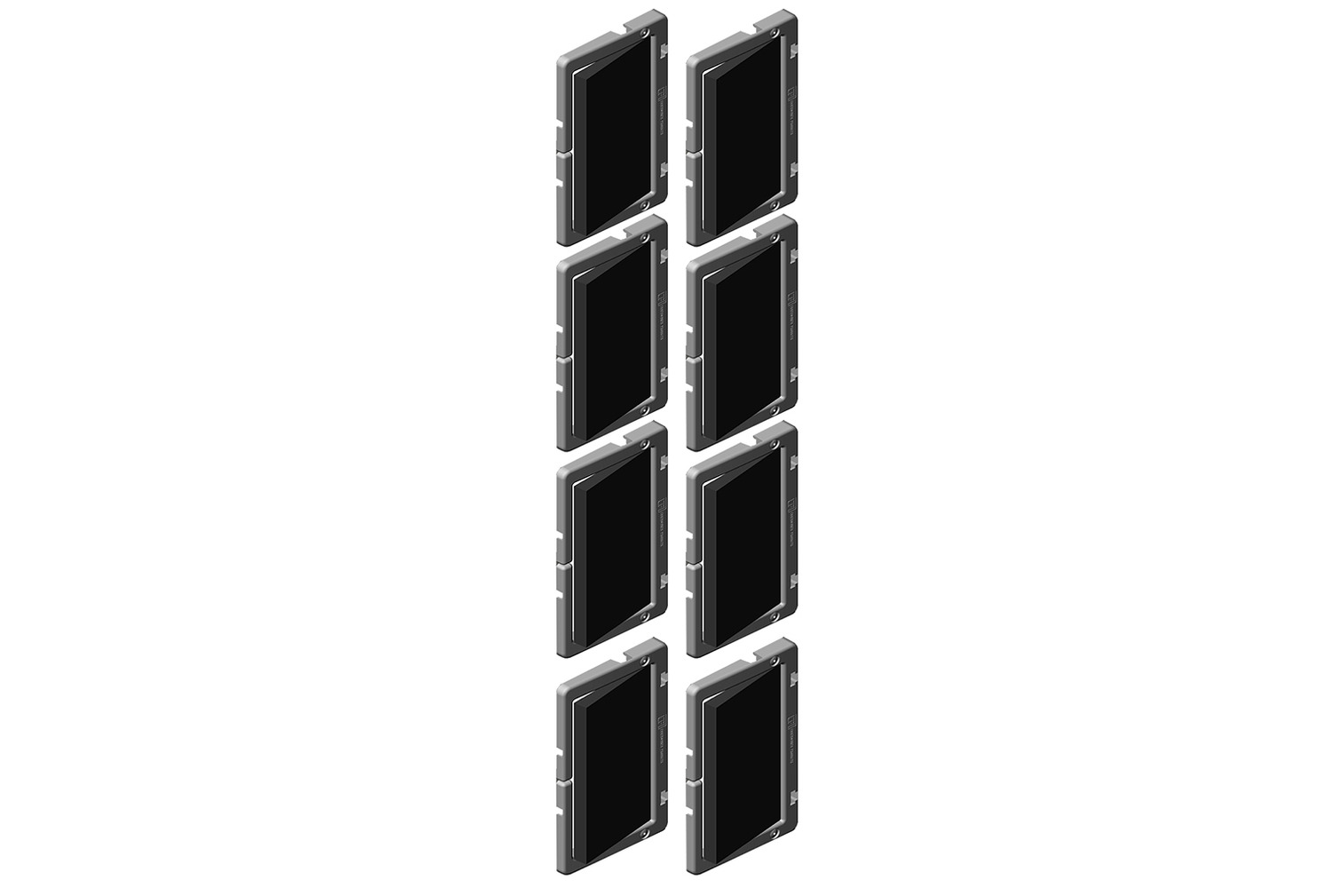

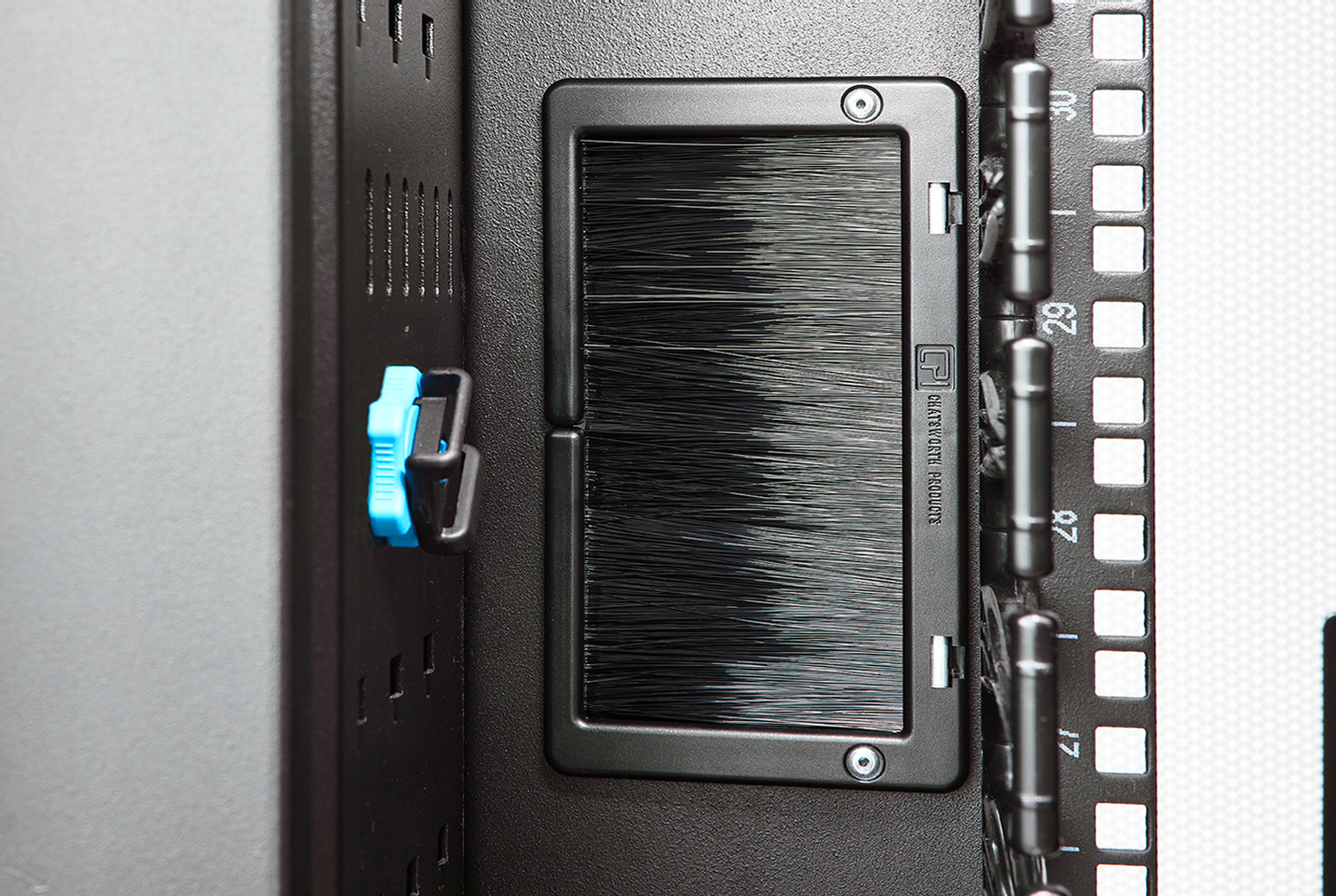

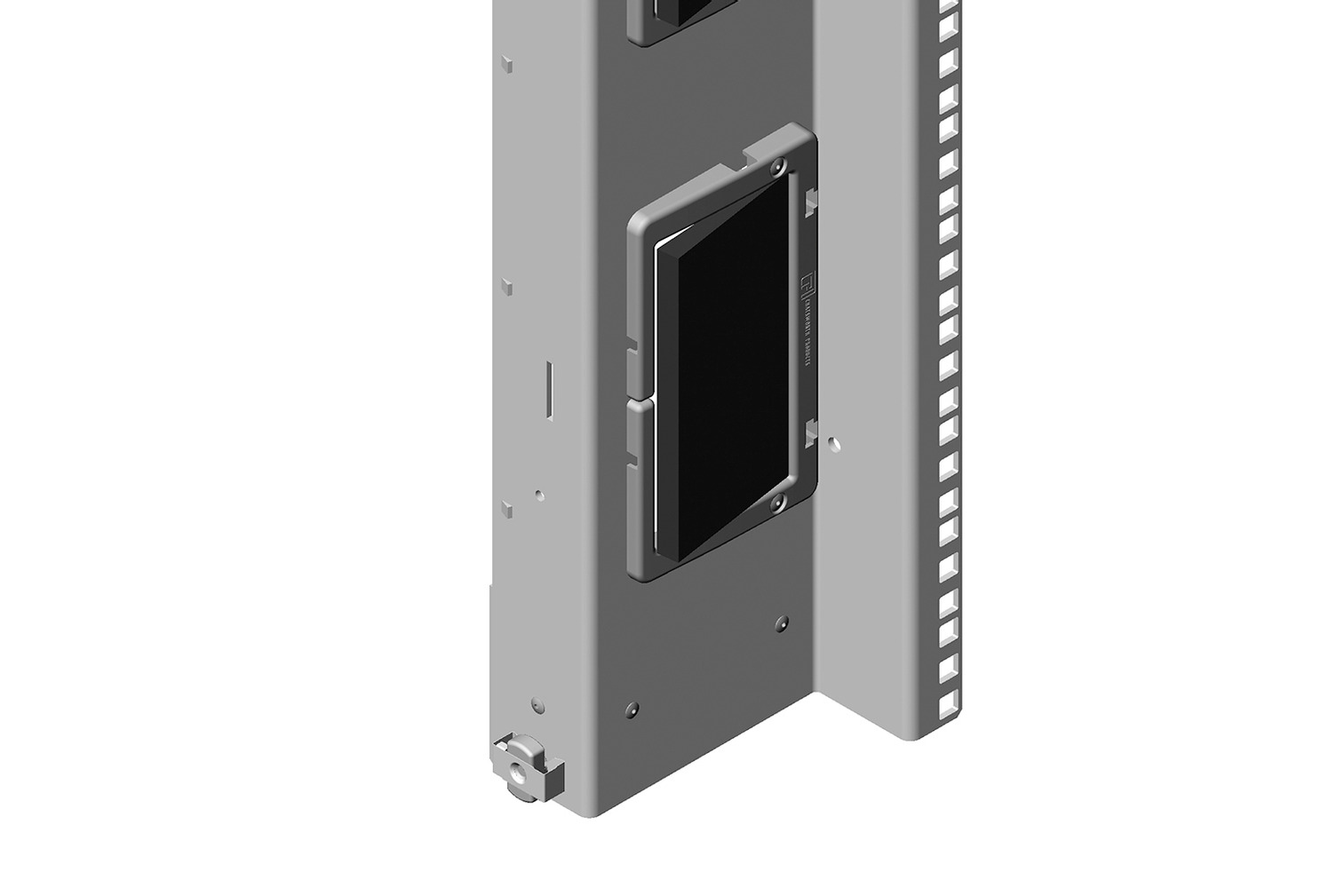

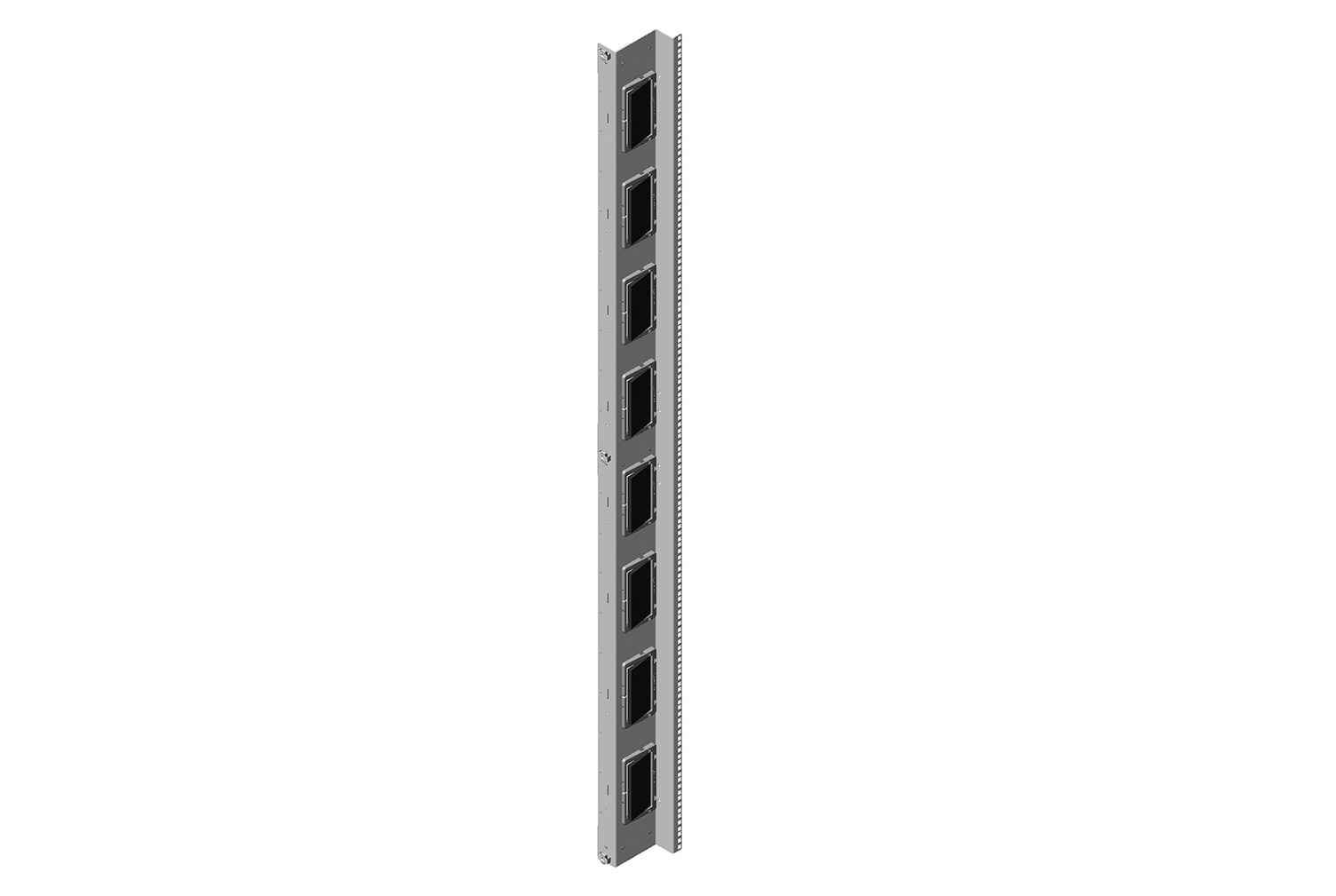

Set of (8) brush covers that conceal cable openings in the equipment mounting rails to block airflow around equipment.
Cabinet Width

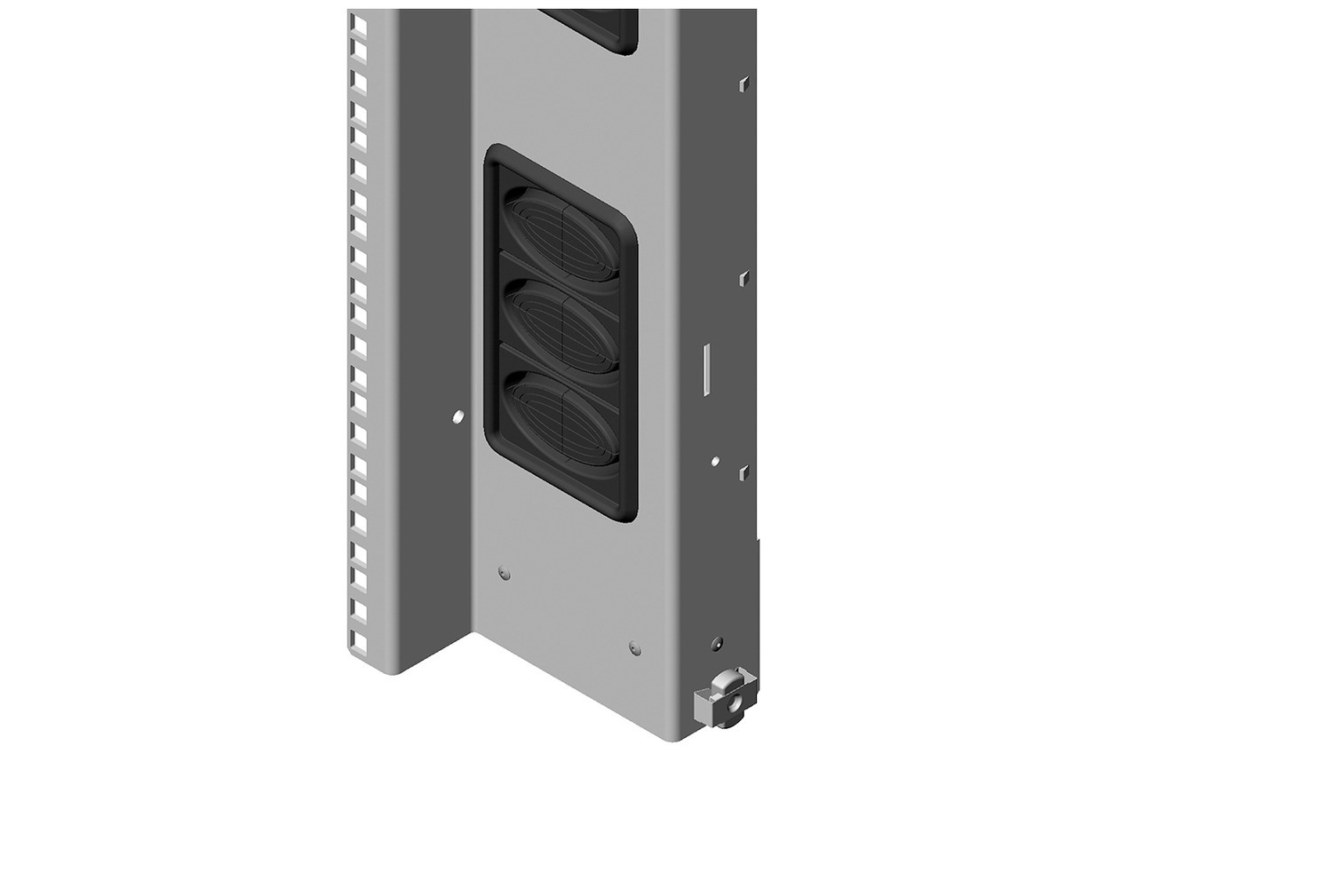

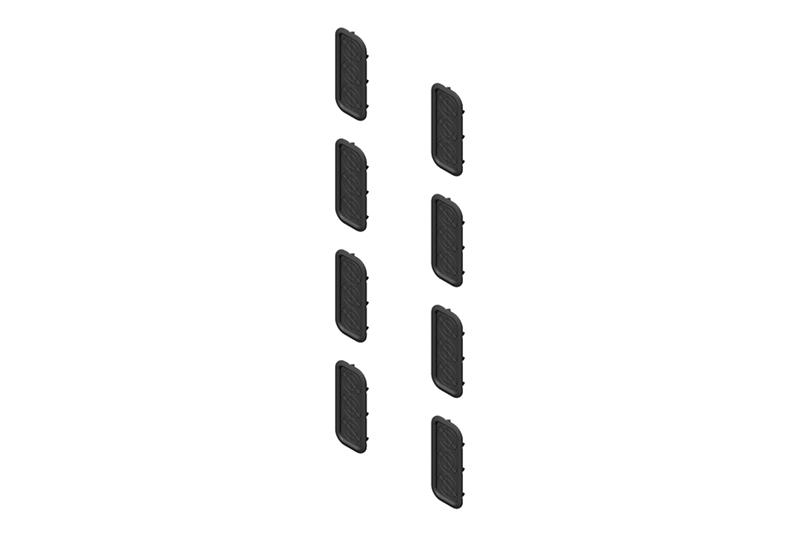

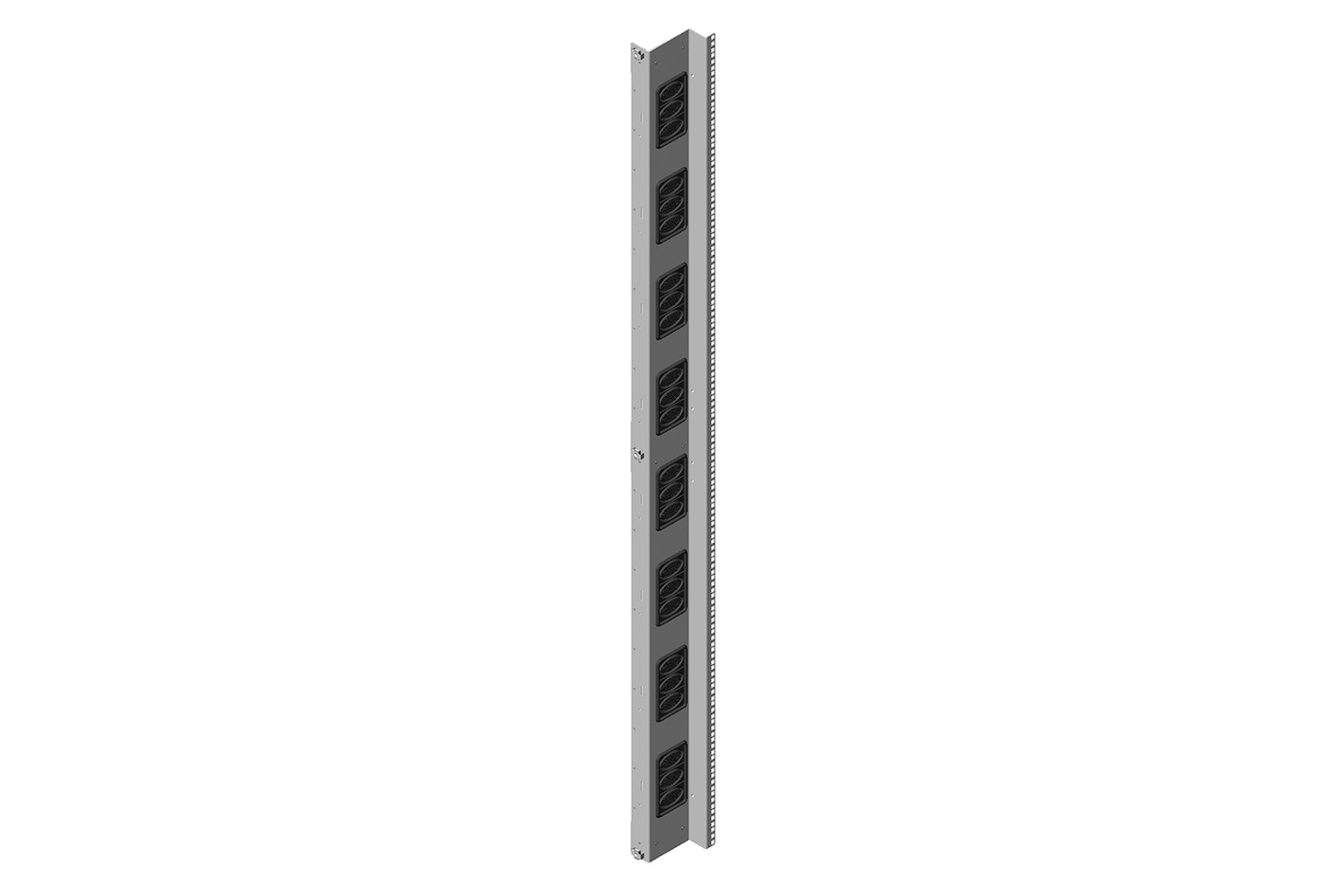

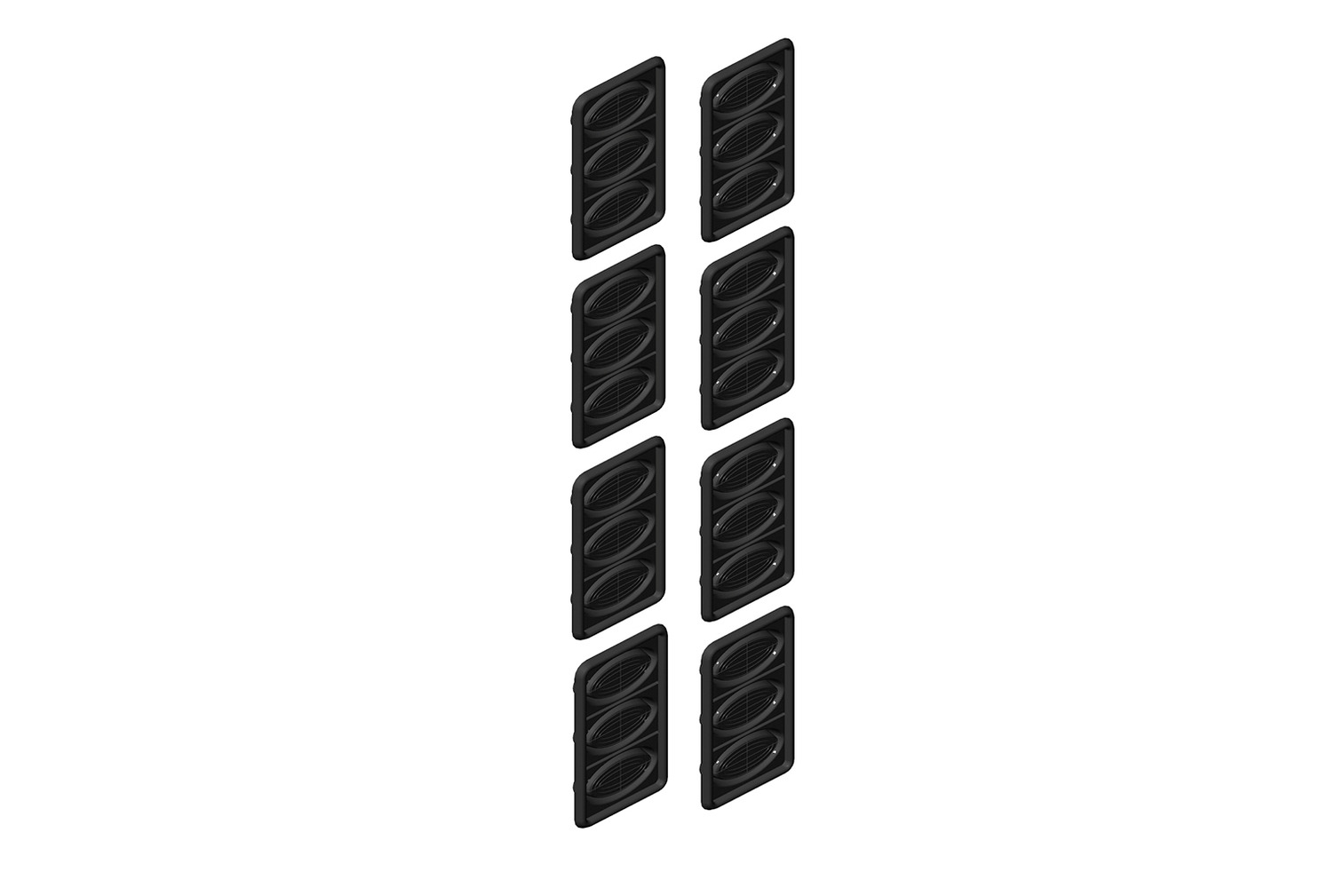

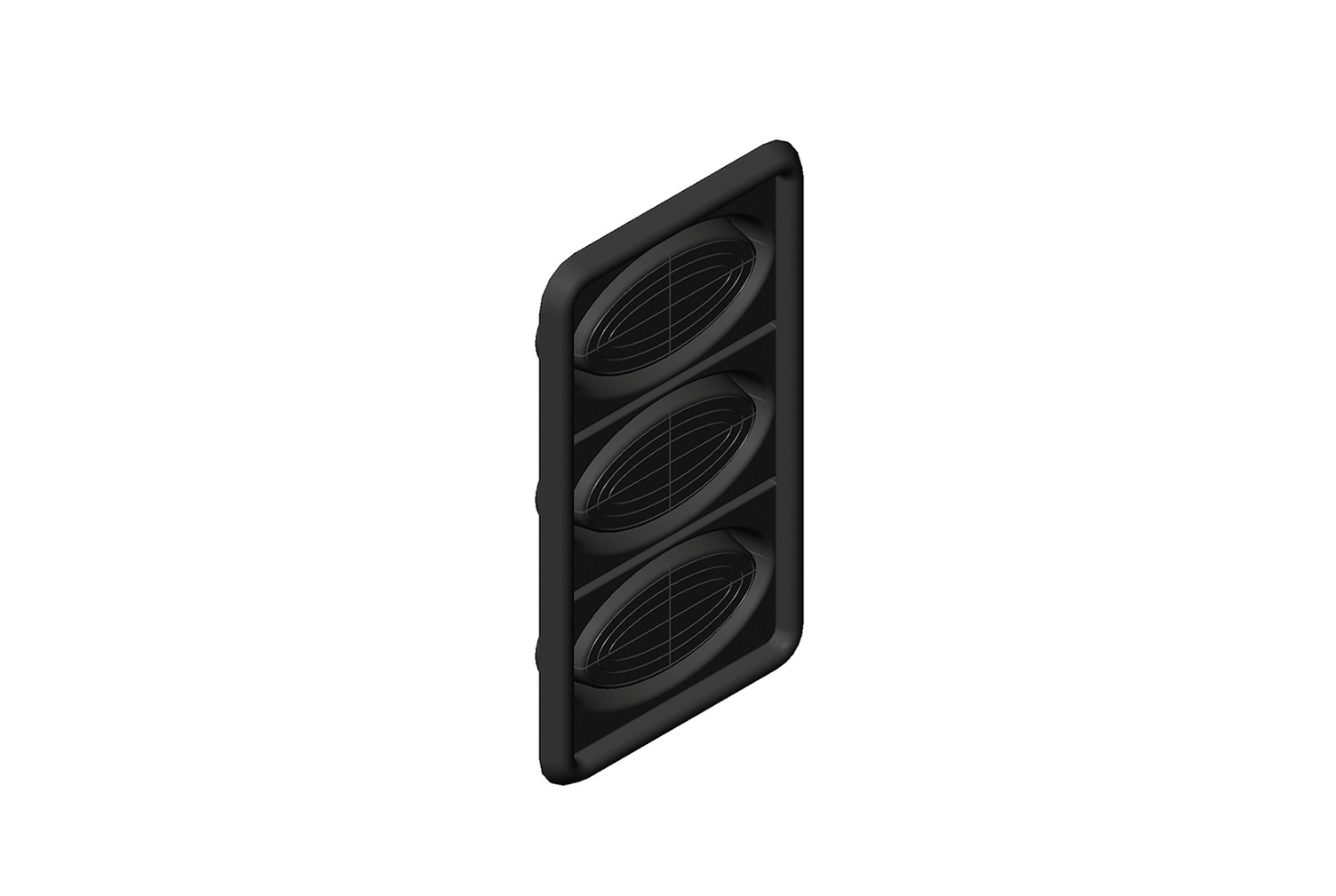

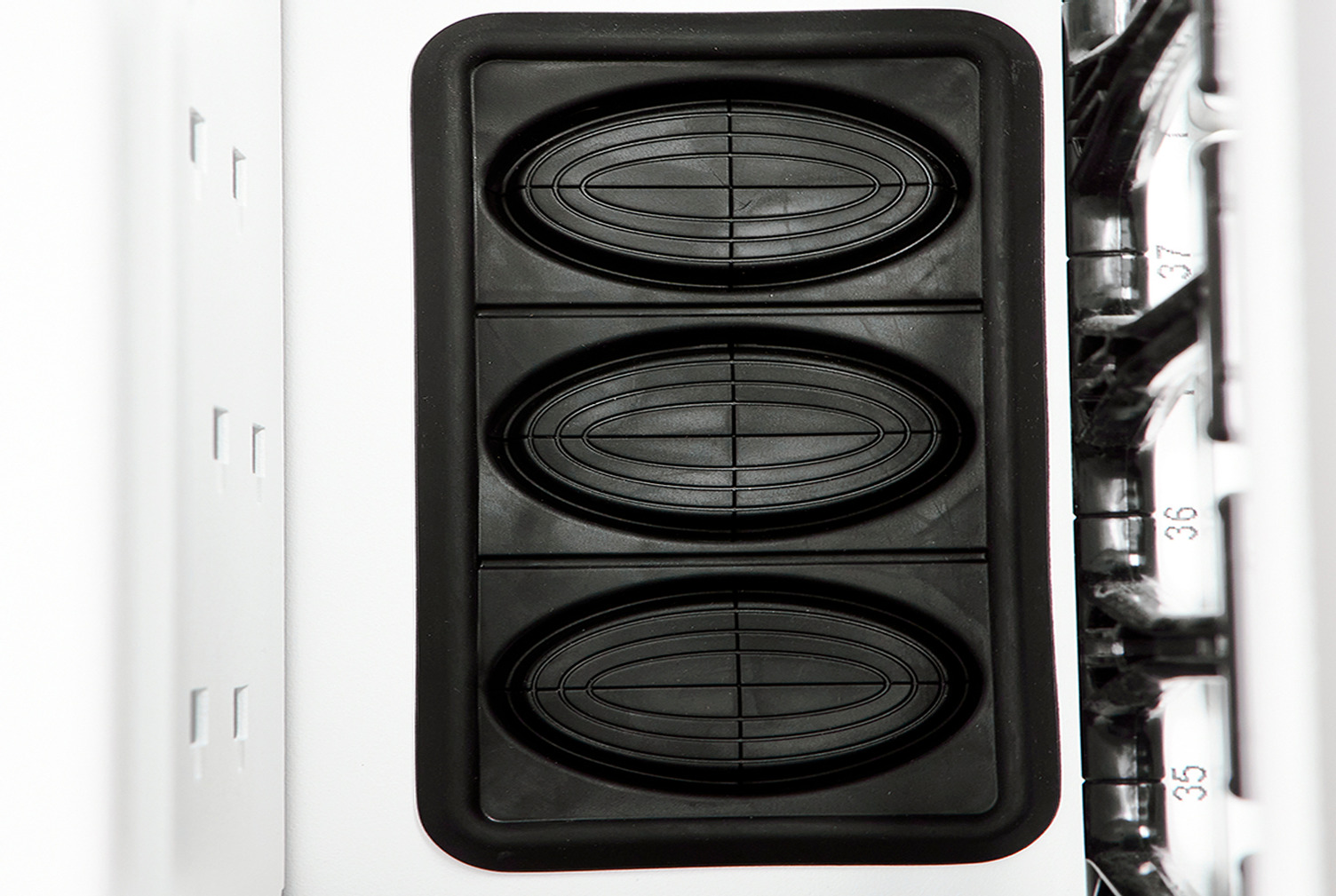

Set of (8) flexible plastic grommets that cover cable openings in the equipment mounting rails to block airflow around equipment.

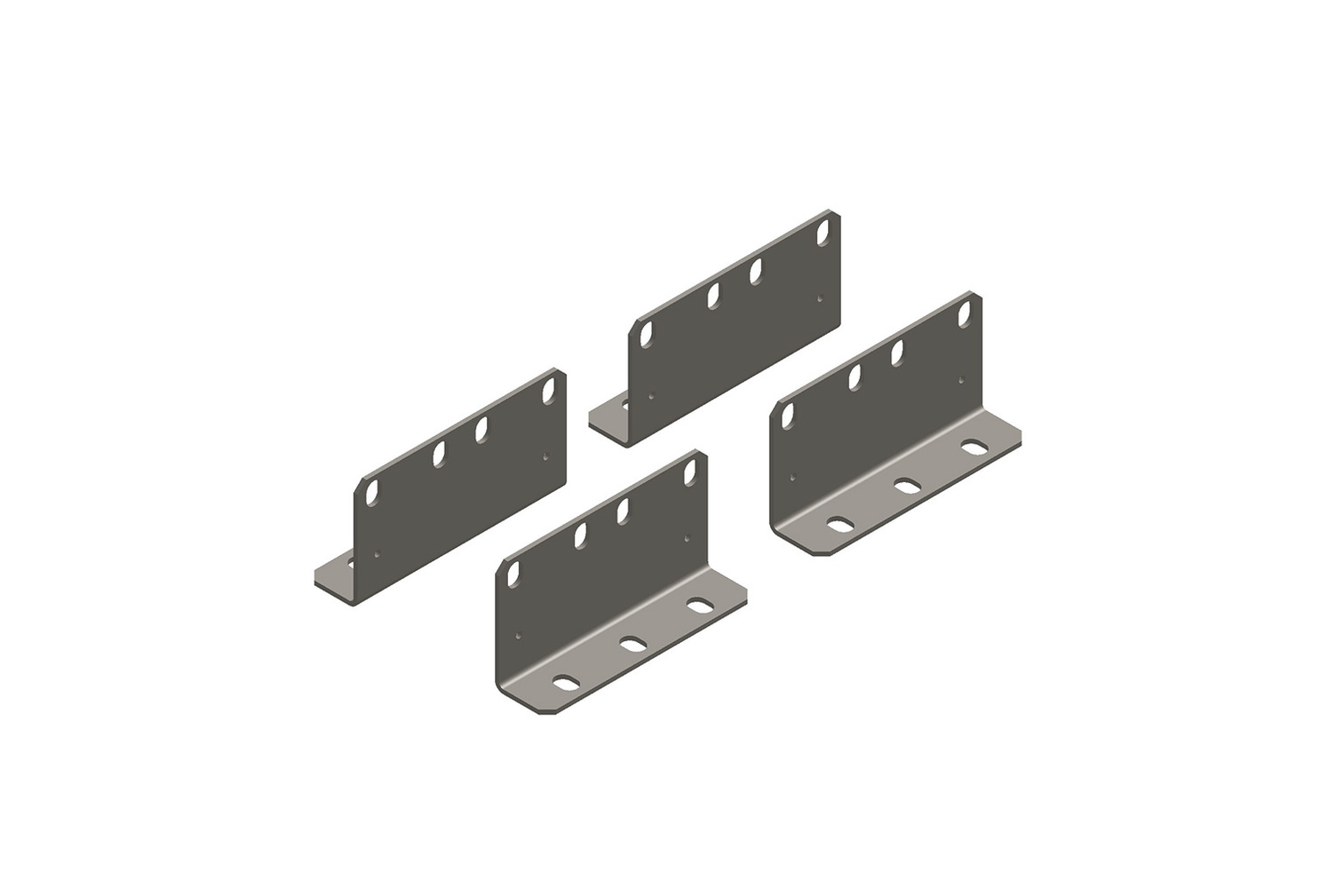

Floor Mounting Bracket Kit For ZetaFrame®; Zinc Plated

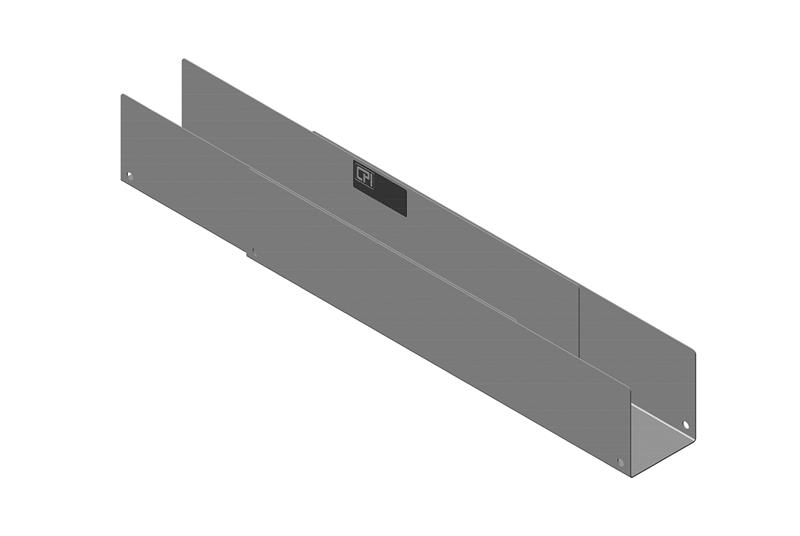

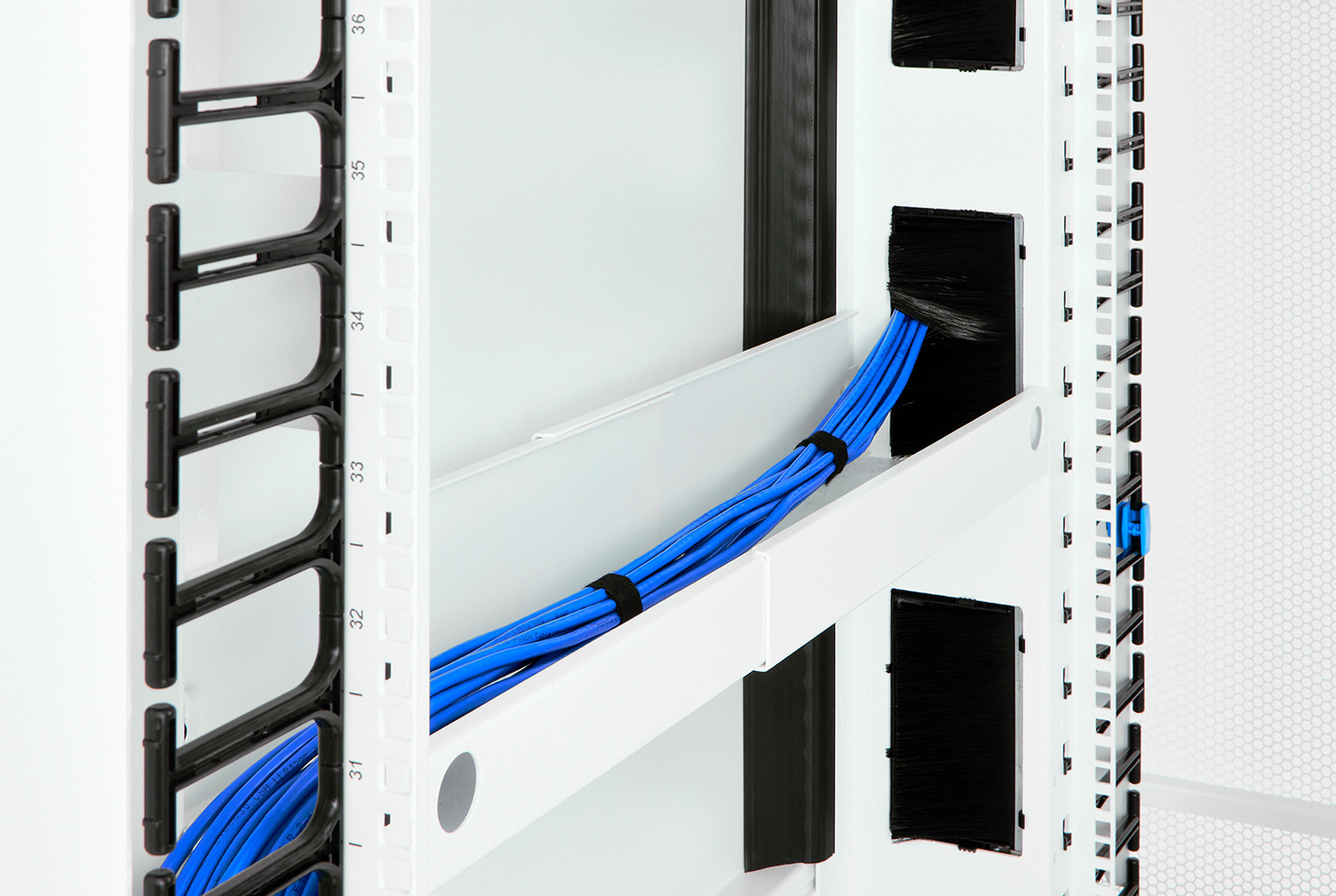

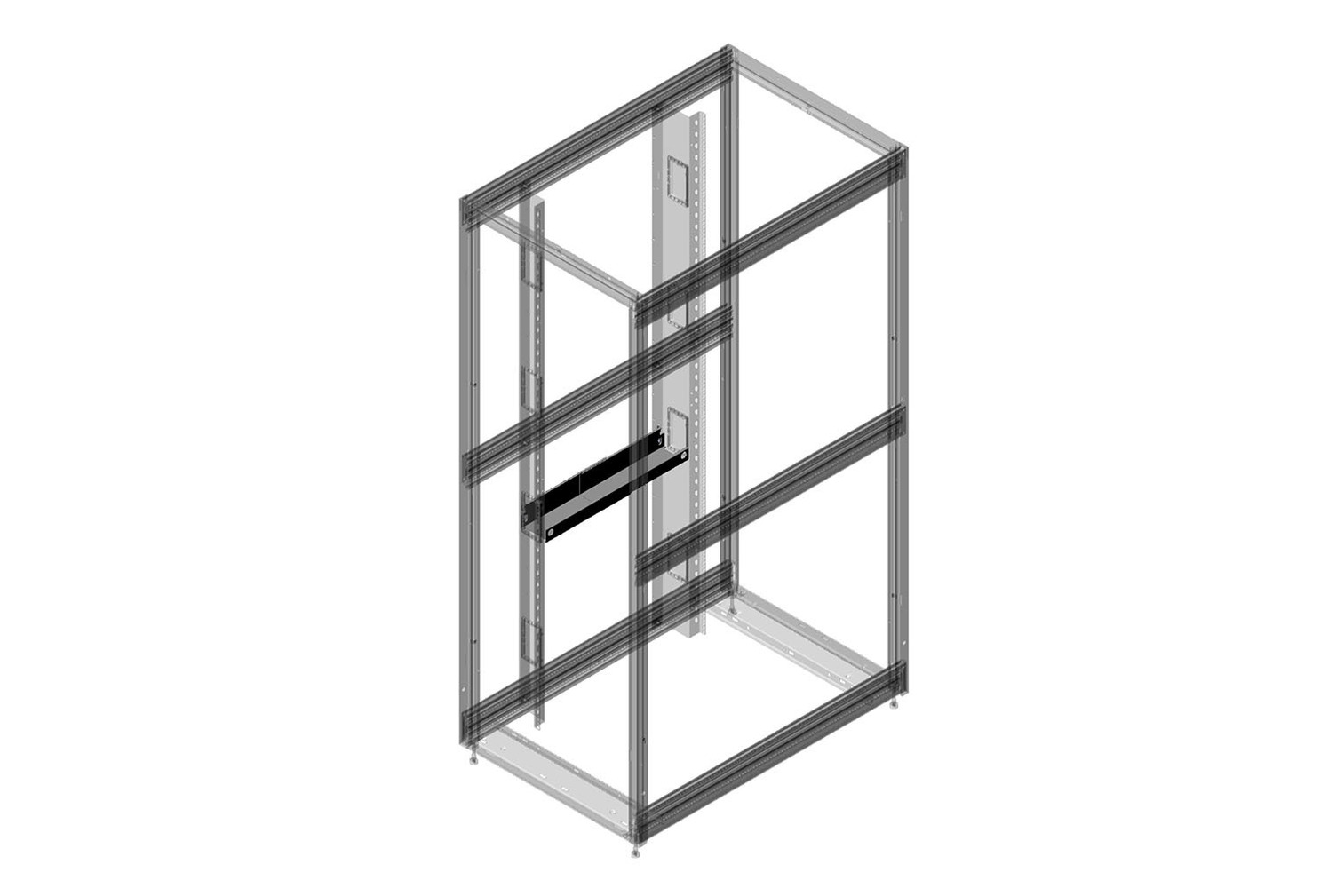

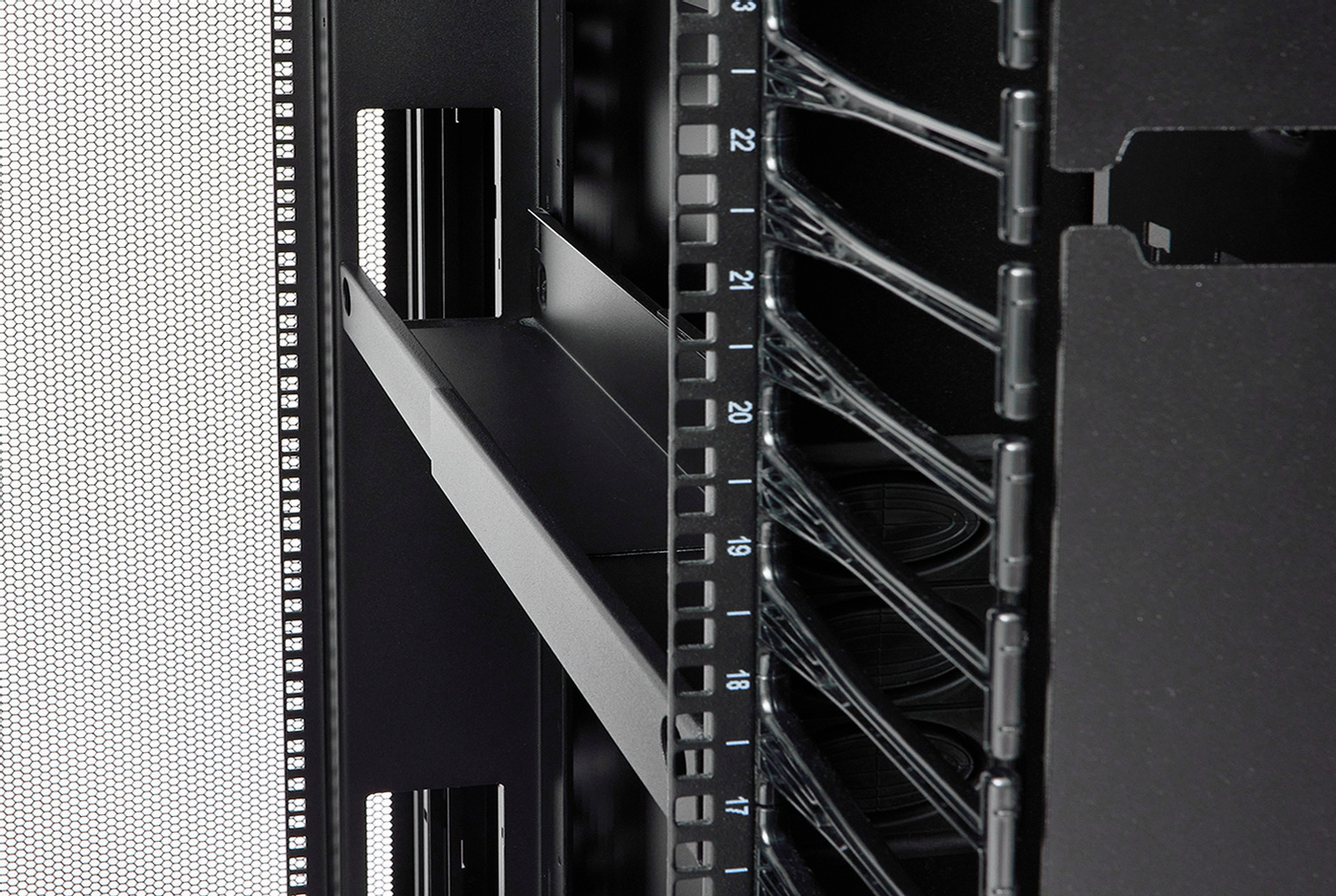

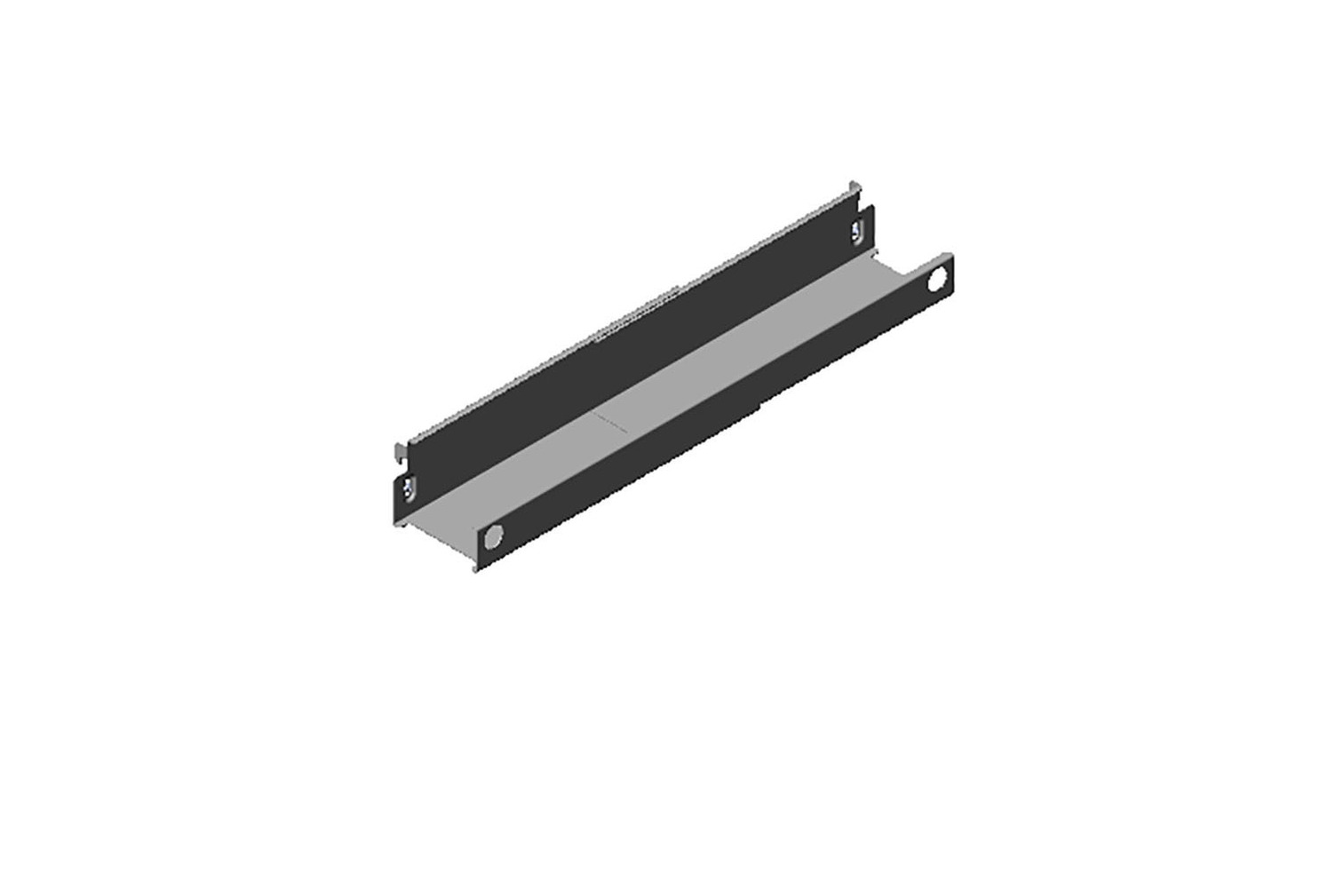

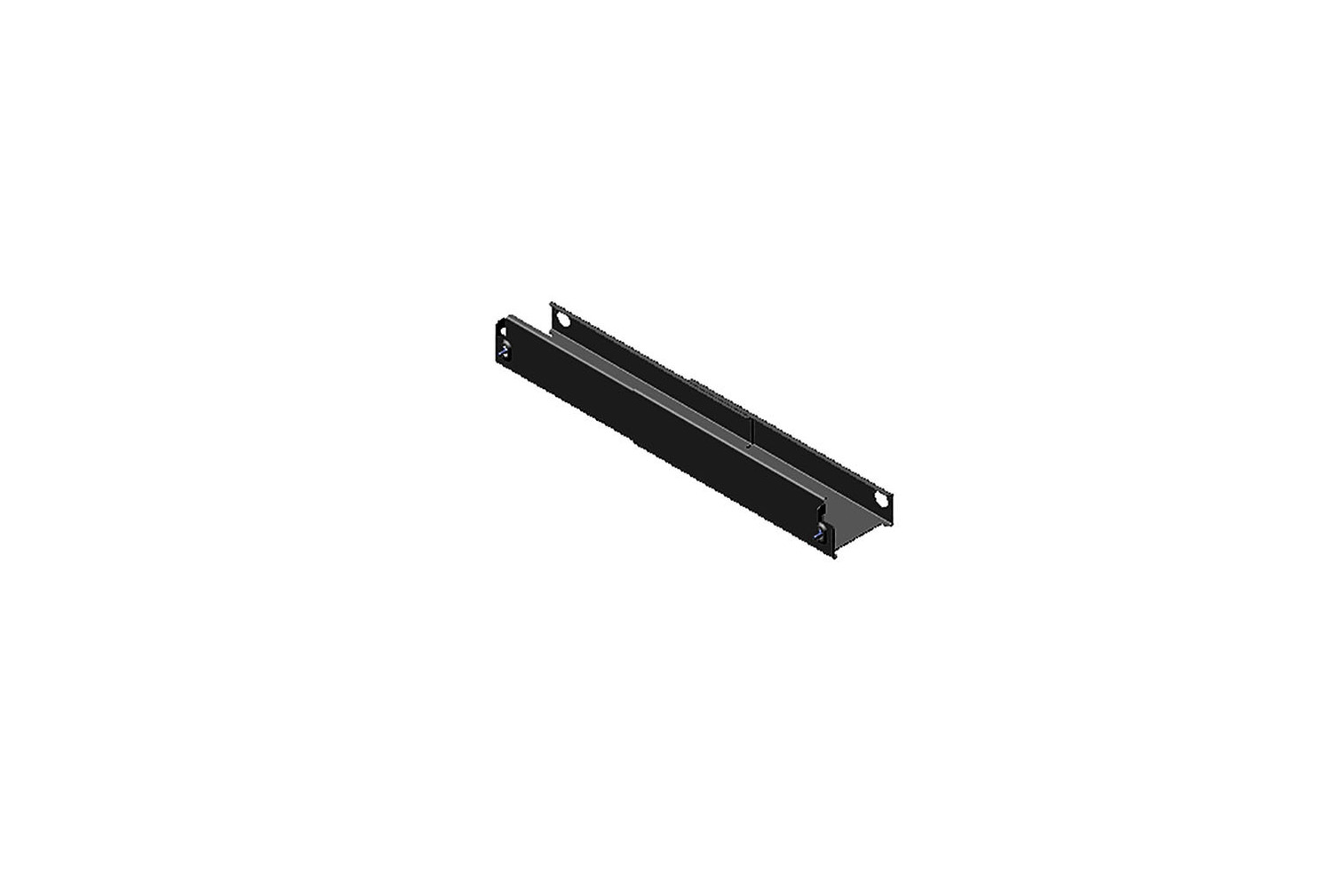

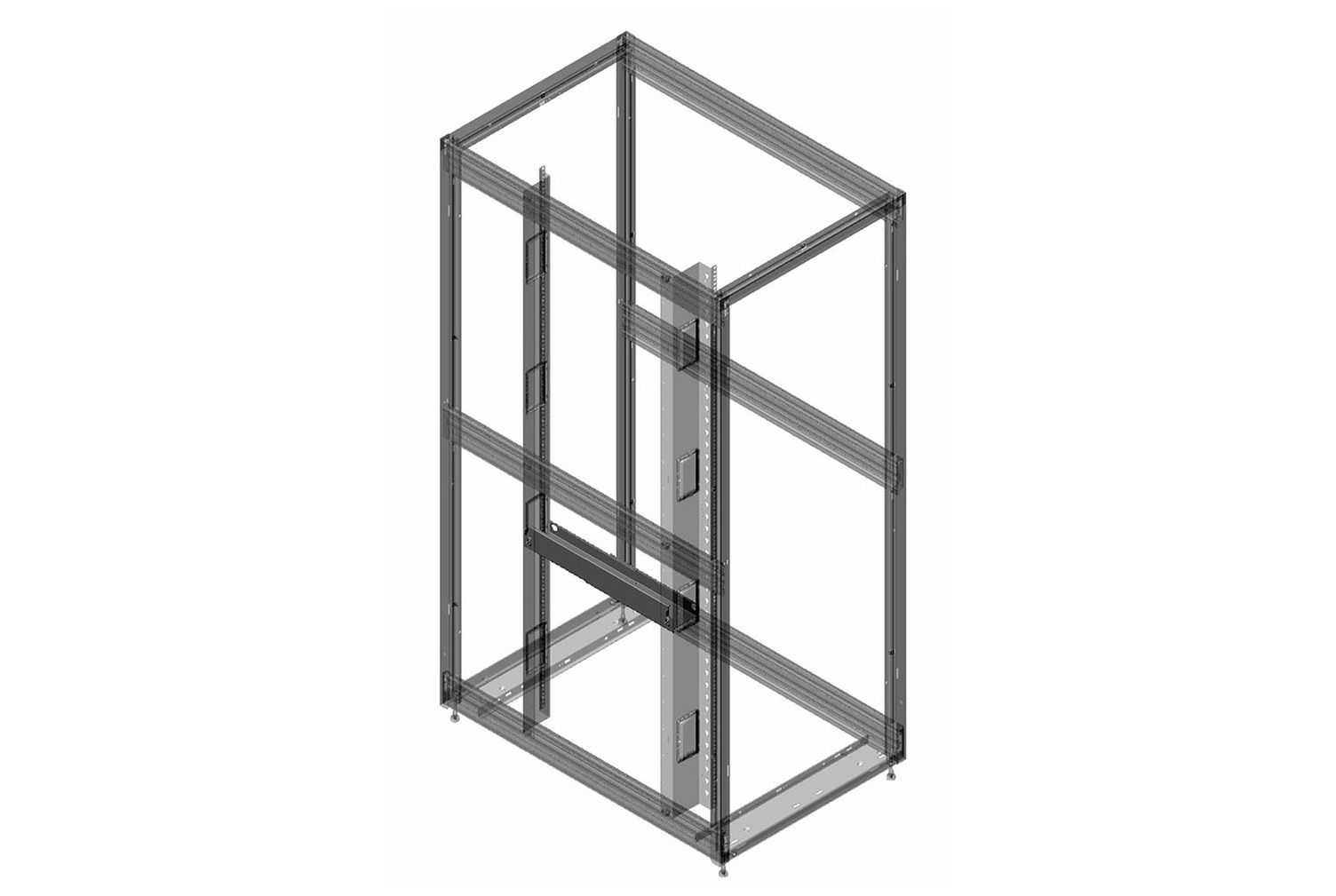

Front-to-Rear Cable Manager attaches to the back of equipment mounting rails wherever there are cable openings, creating a cable pathway between front and rear rails.
Cabinet Width, Color
Attach eConnect® PDUs to the cabinet.
PDU Chasis Width, Height RMU, Color

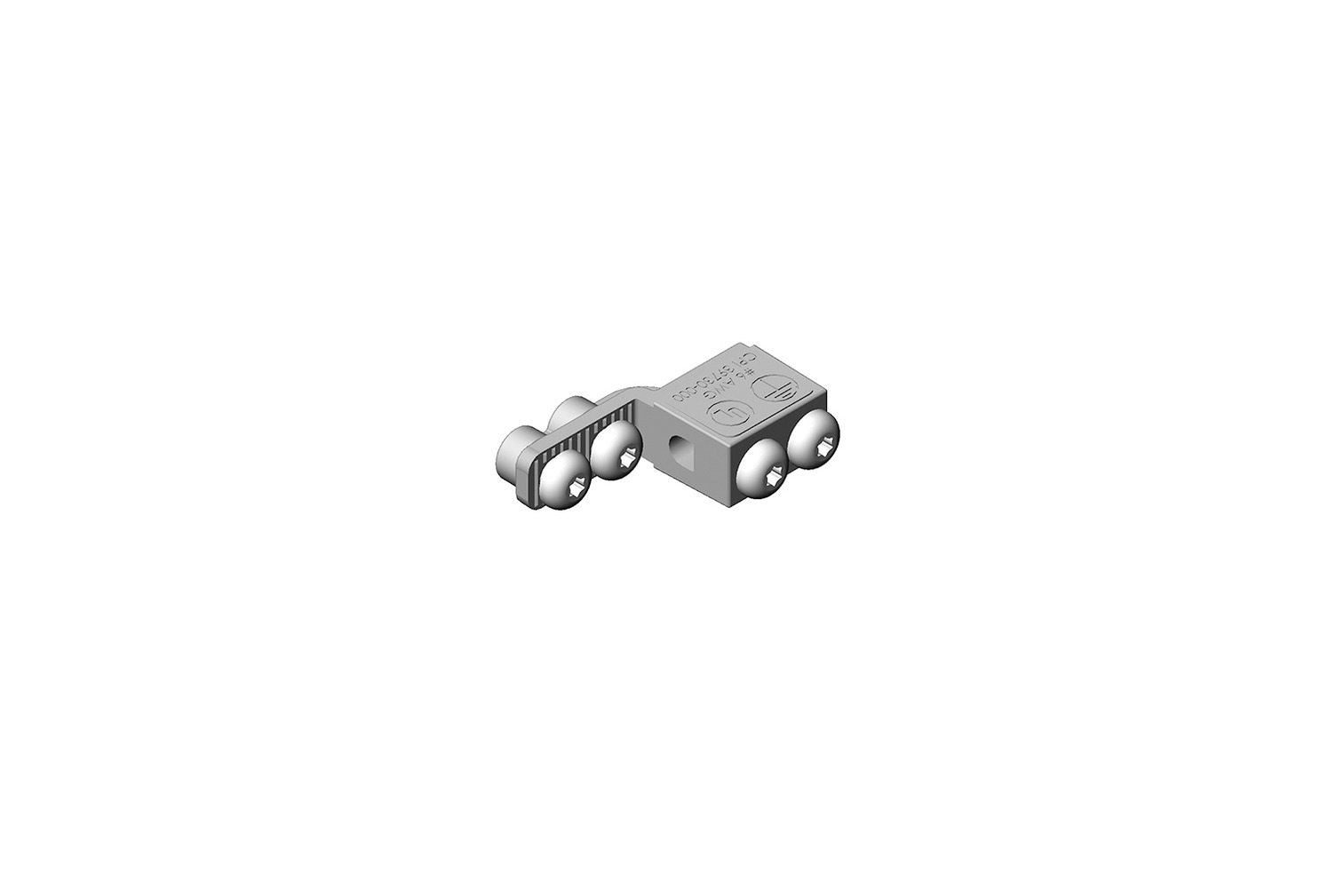

Ground Block Kit for ZetaFrame® Cabinet

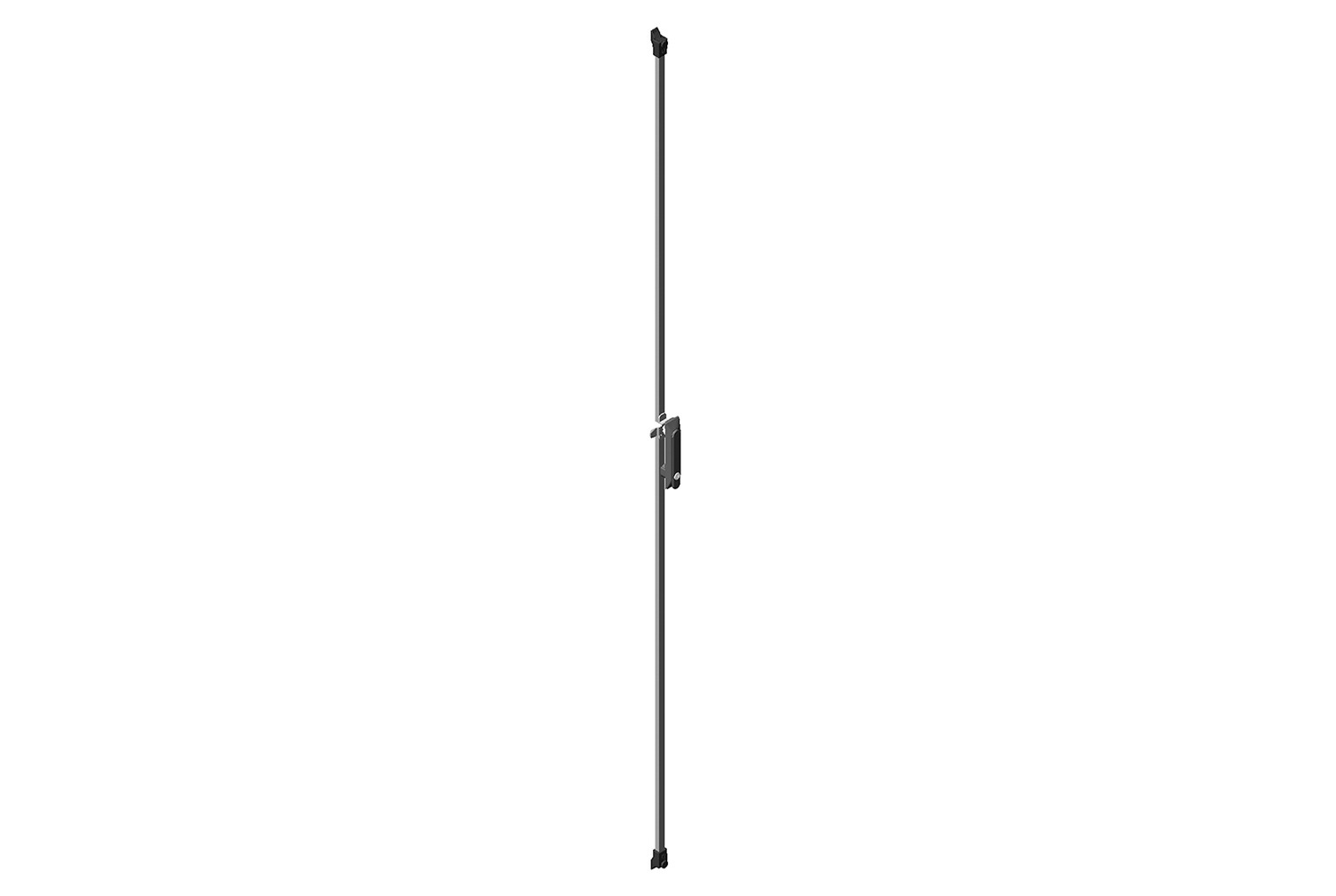

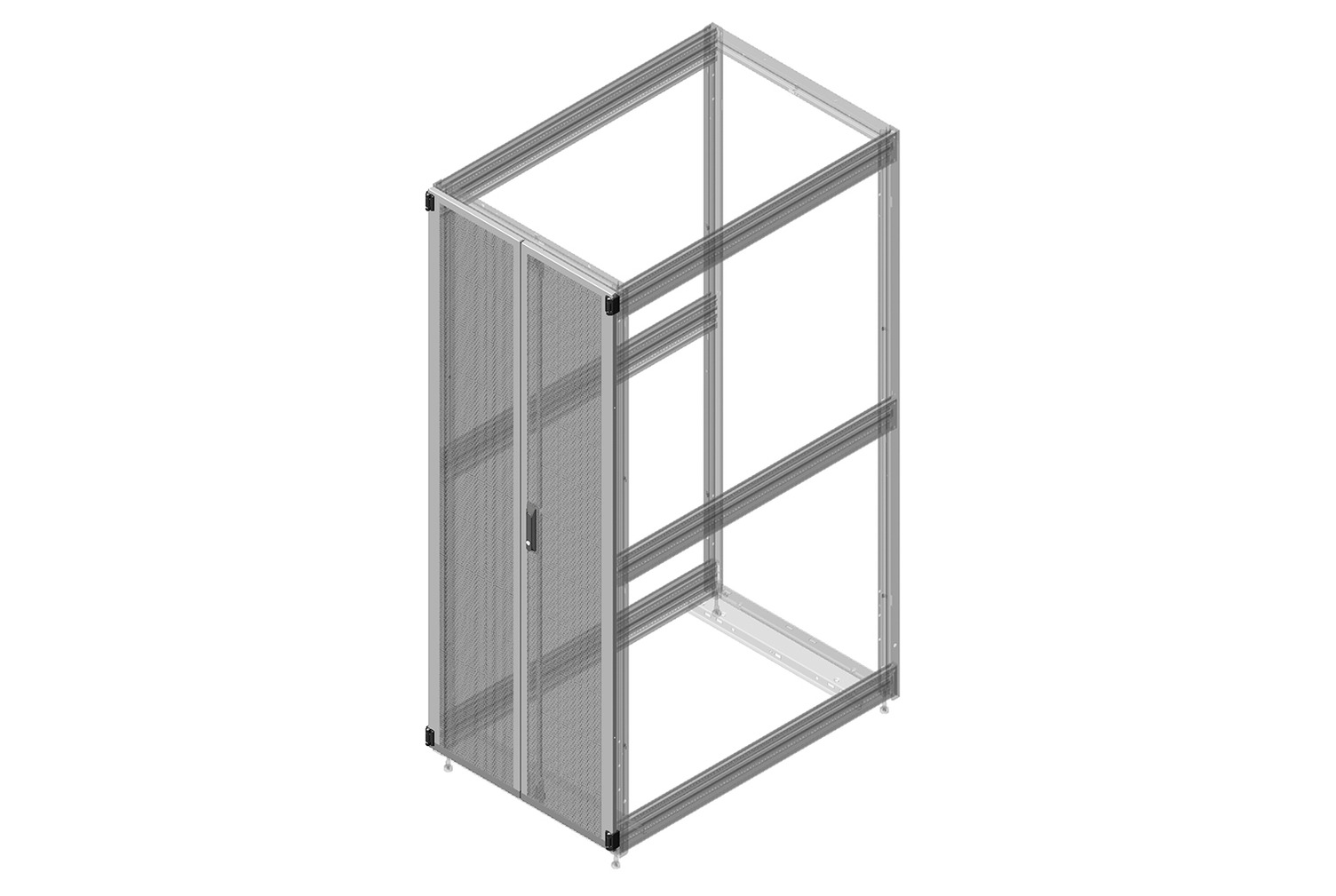

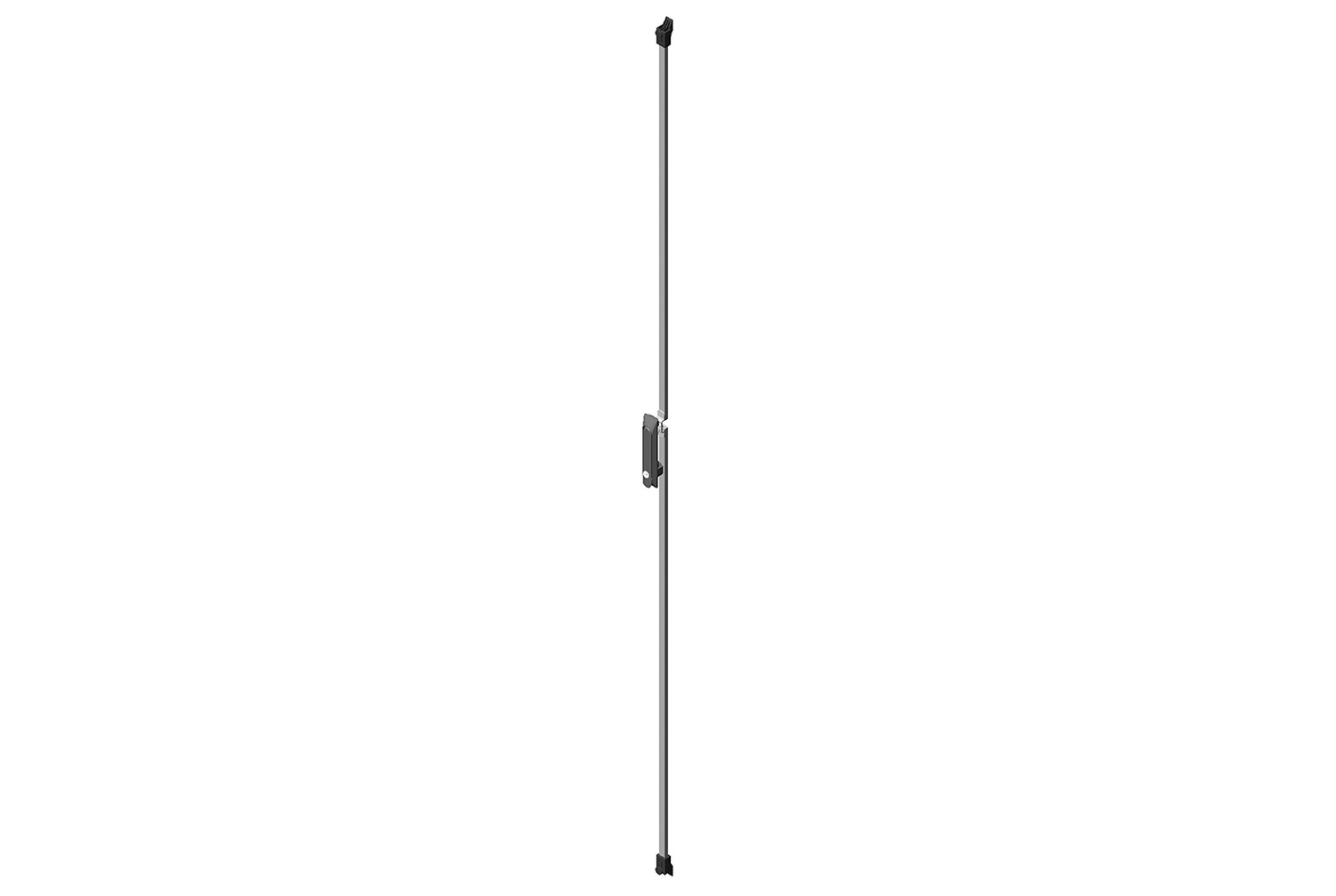

Latch Kit for Double Perforated Metal Rear Door for ZetaFrame® Cabinet
Height RMU

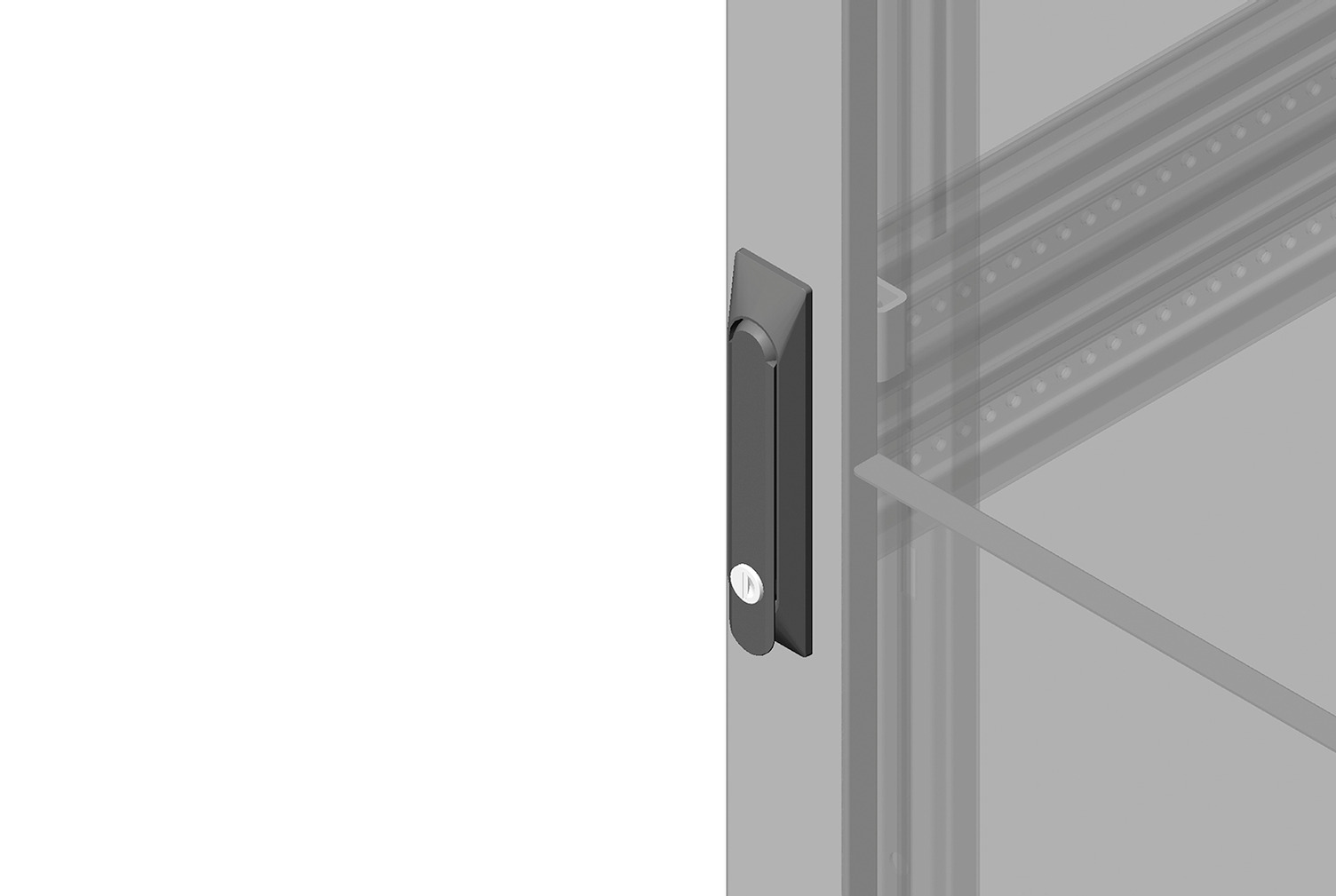

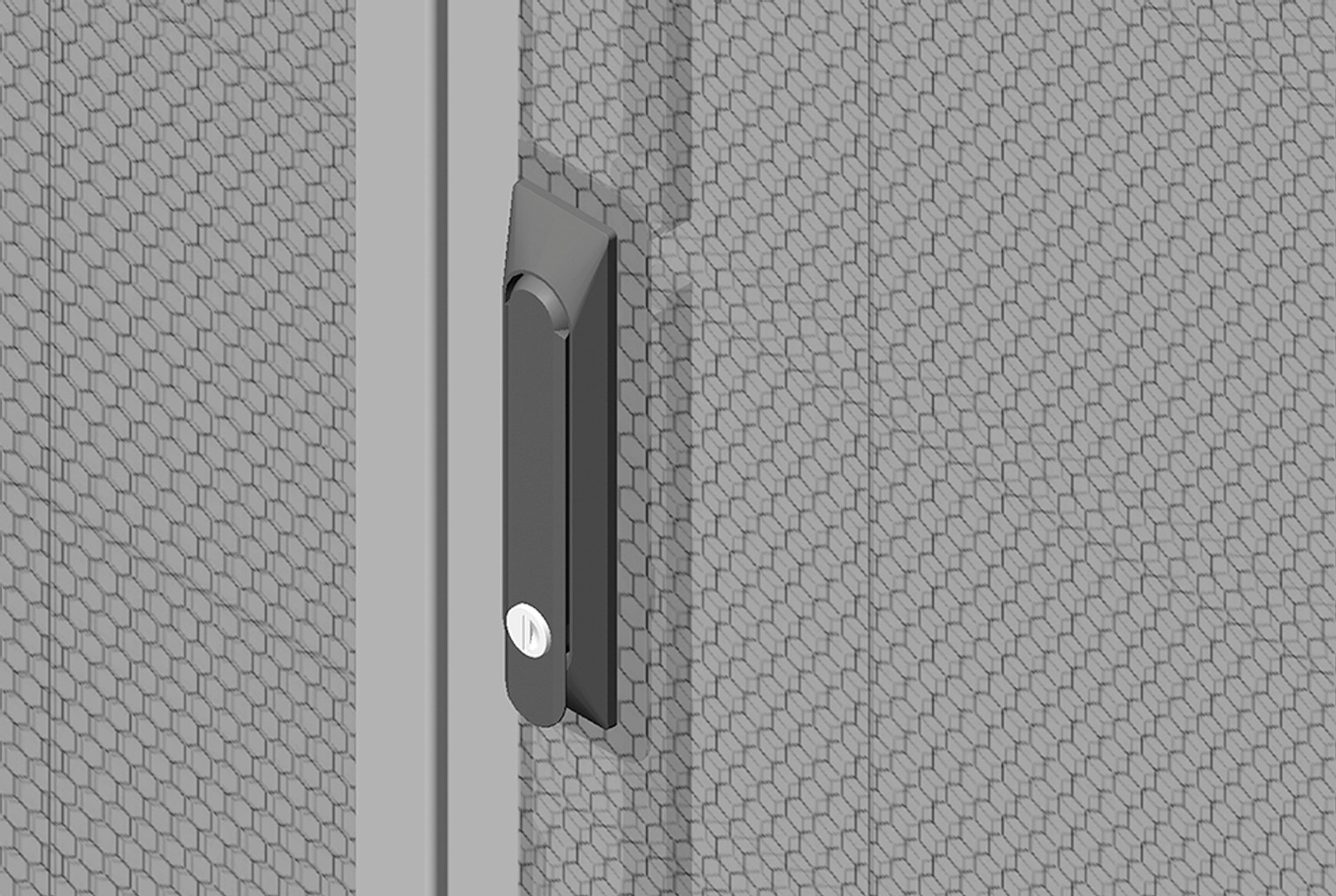

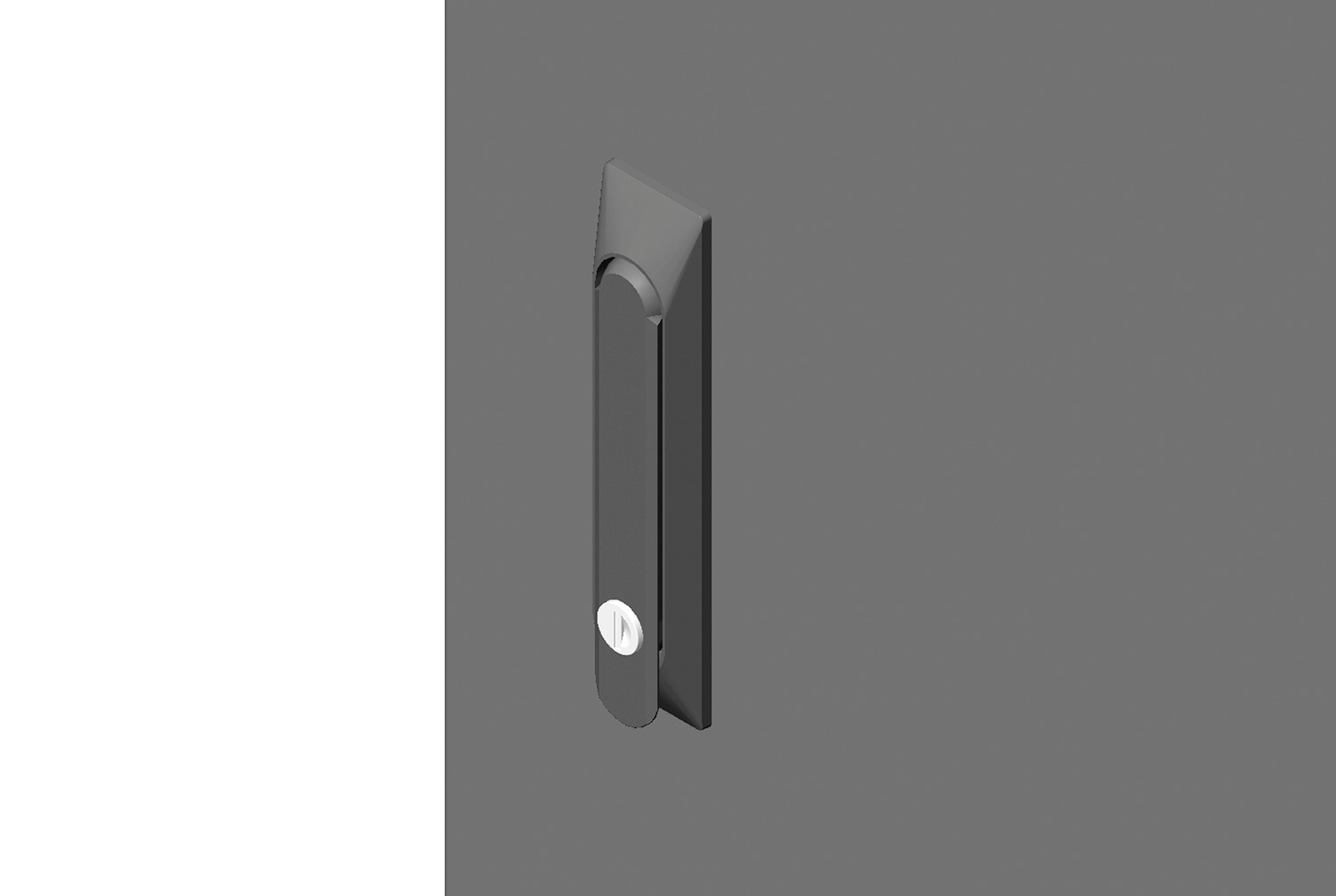

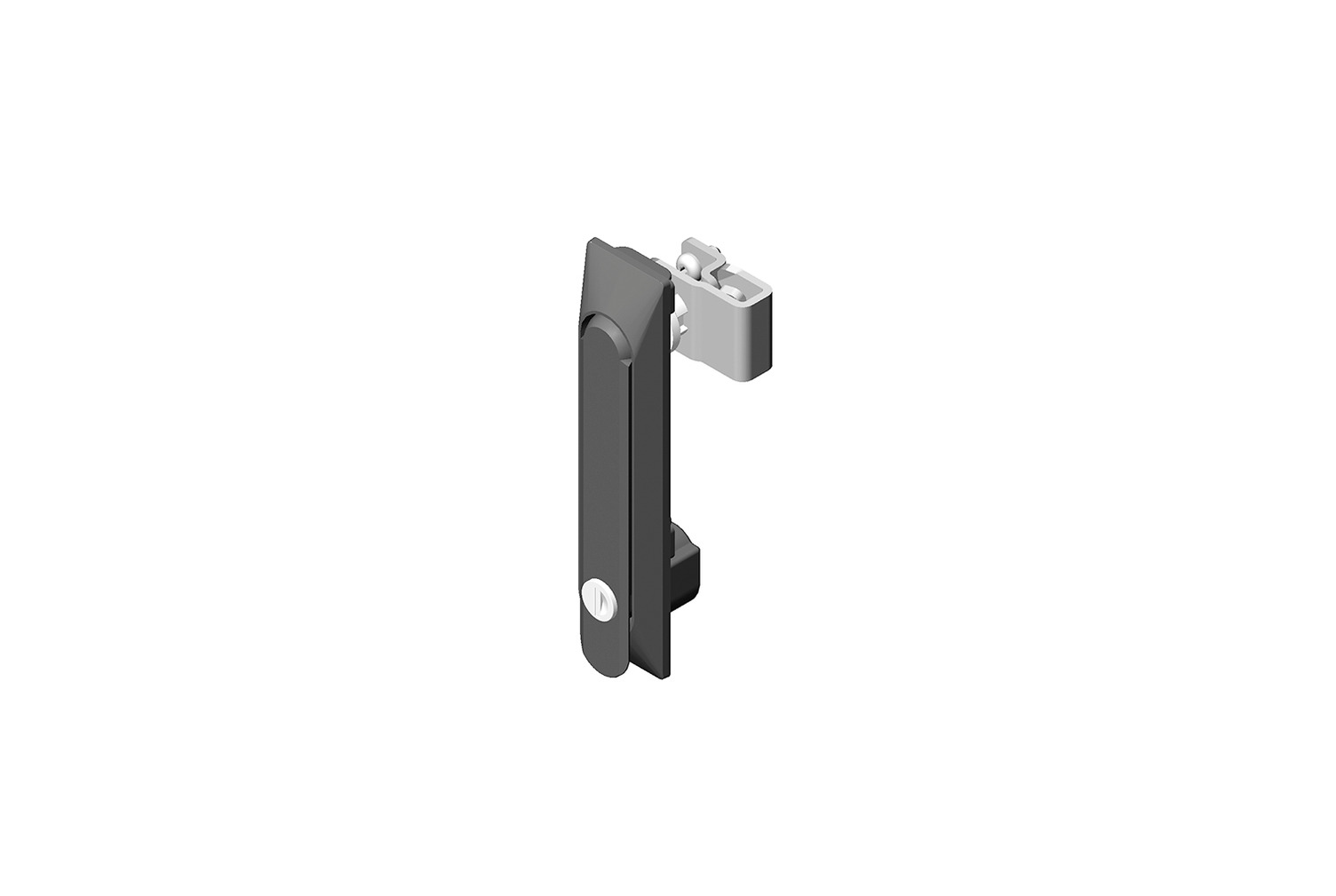

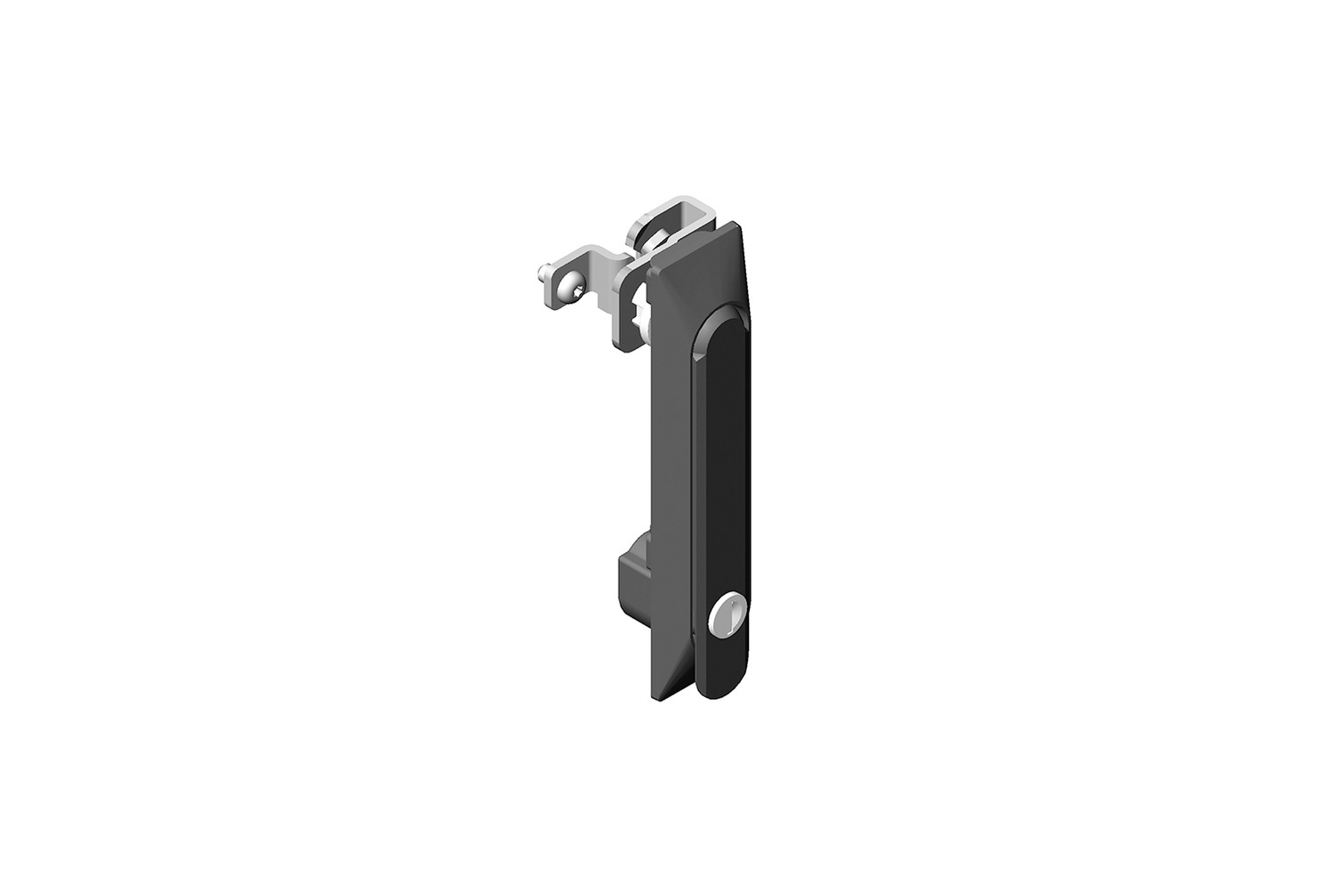

Latch Kit for Single Perforated Metal Front Door for ZetaFrame®Cabinet; Single-Point; Keyed Lock; Black

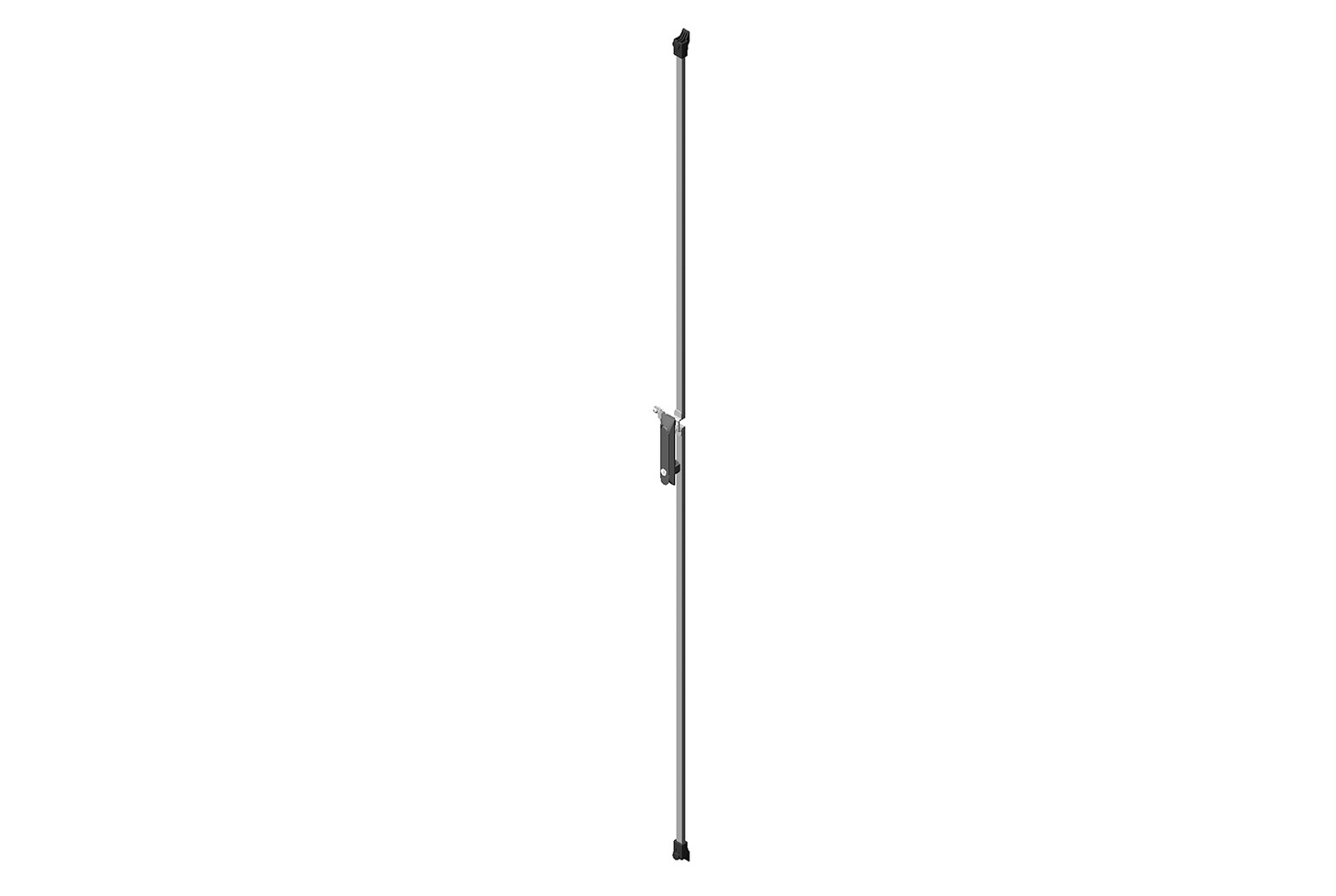

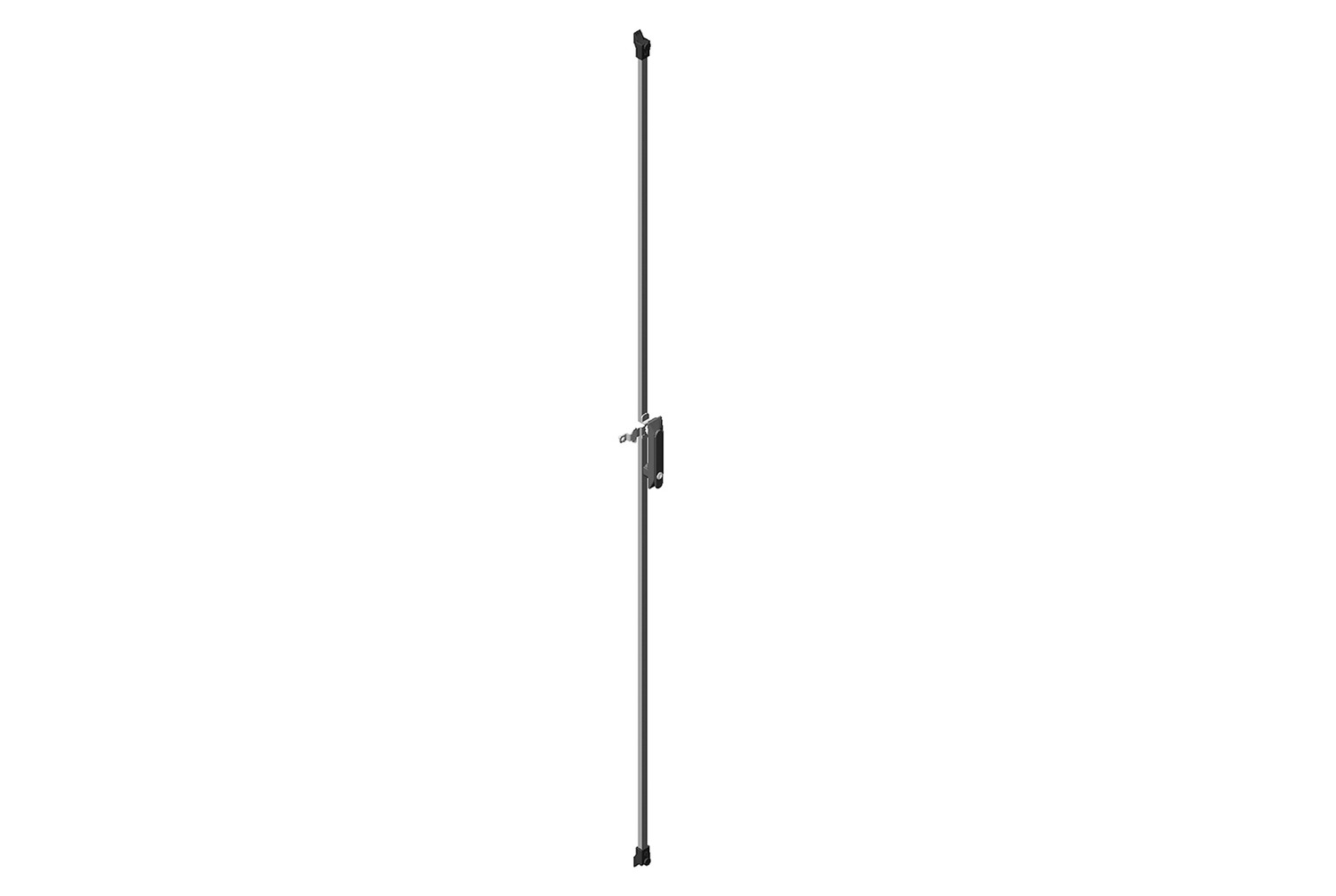

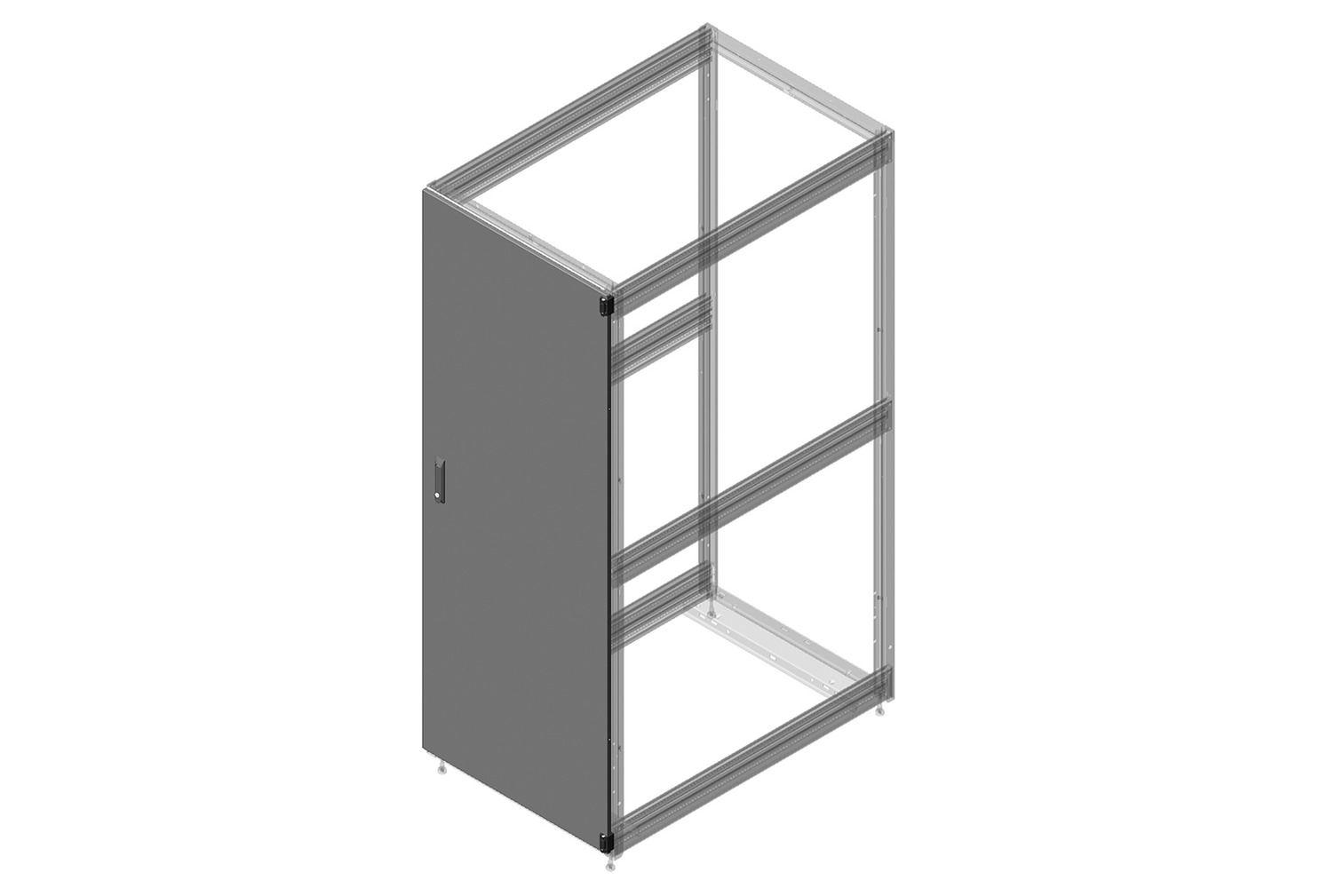

Latch Kit for Single Solid Metal Rear Door with Seal for ZetaFrame® Cabinet

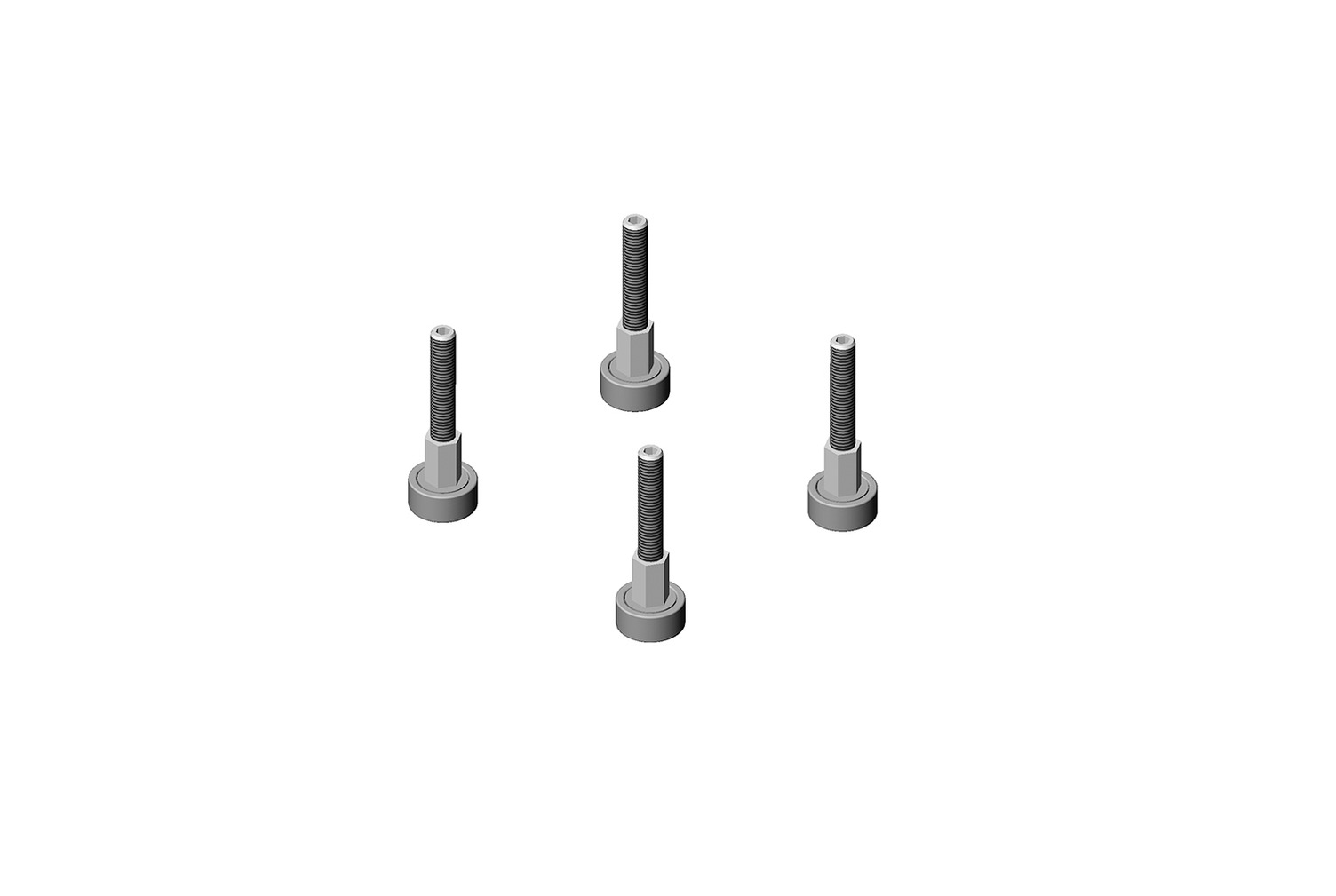

Leveling Feet for ZetaFrame®Cabinet; 4 Each; Zinc
To optimize cooling performance in your facility, you must isolate conditioned and exhaust air, guide conditioned air to equipment and remove exhaust air from equipment.
Cabinet Frame Depth, Color, Height RMU

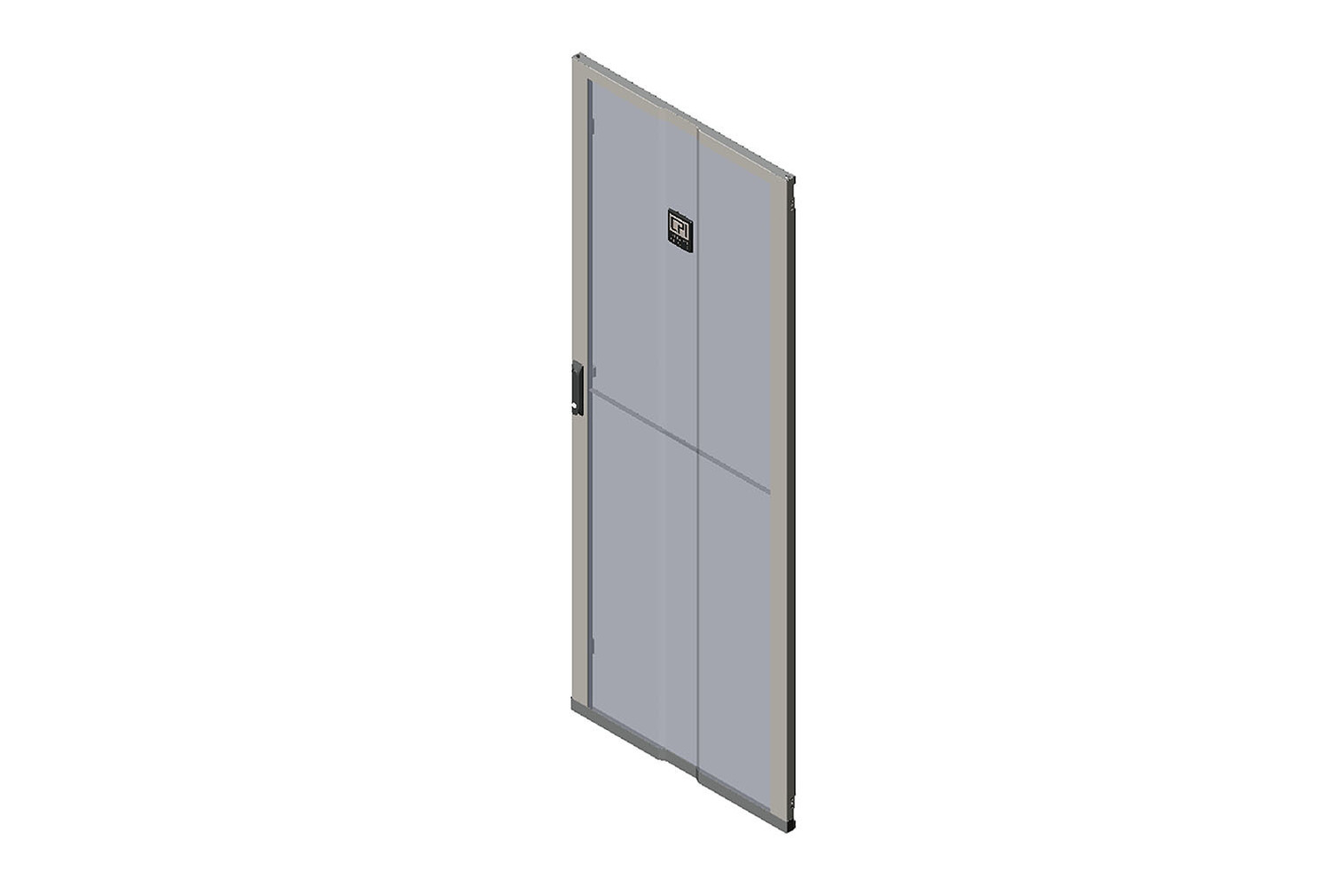

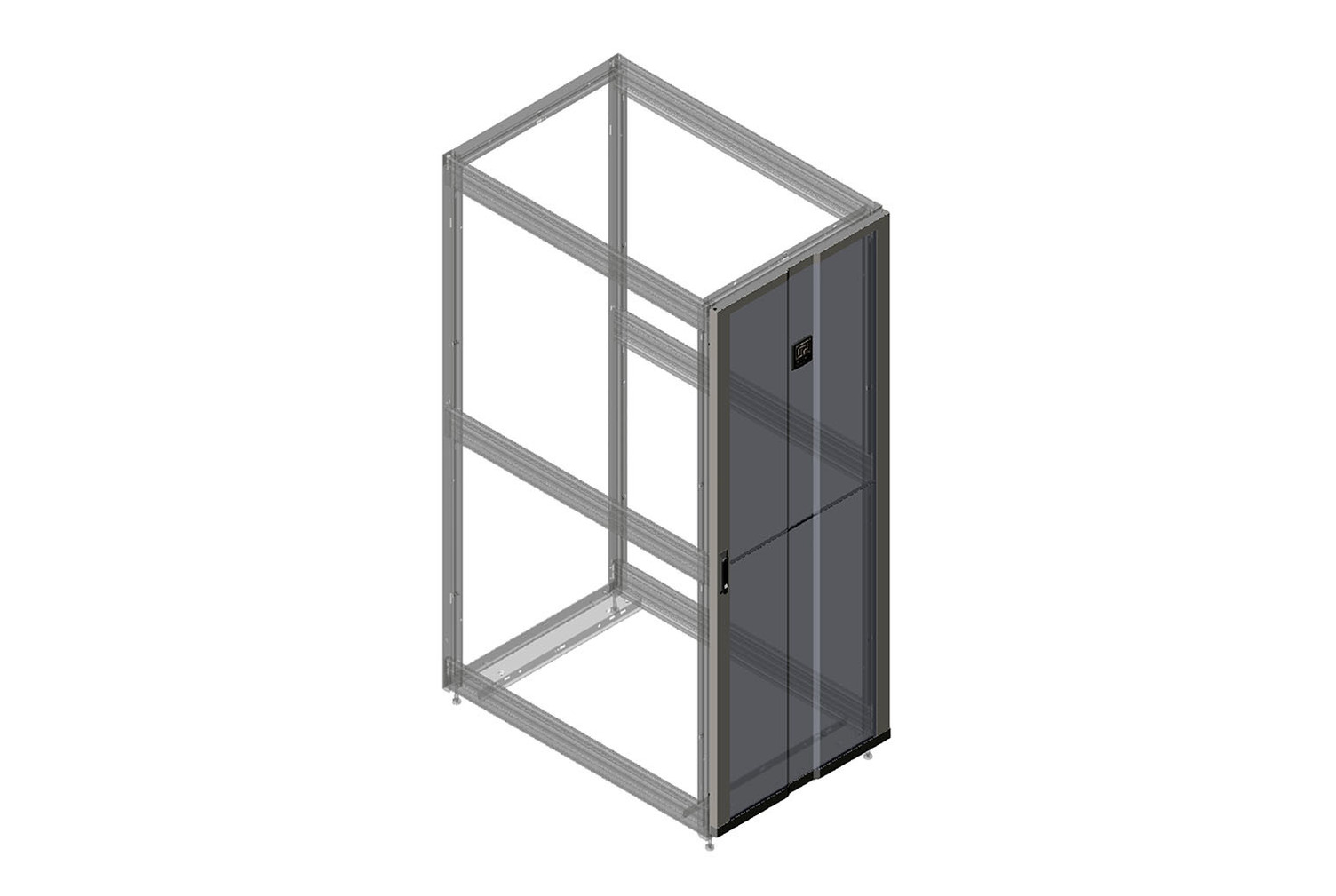

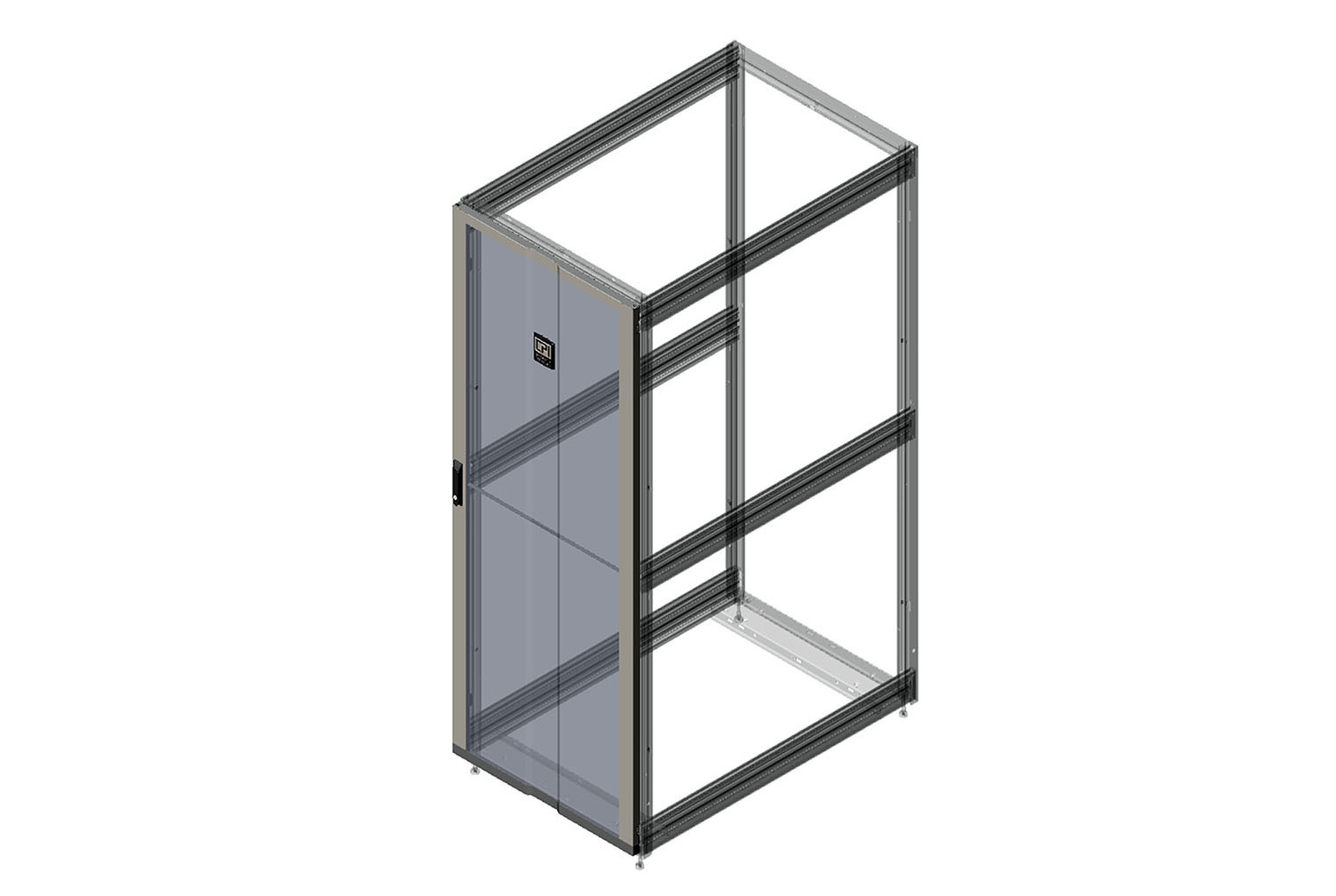

Single Perforated Metal Front Door for ZetaFrame® Cabinet

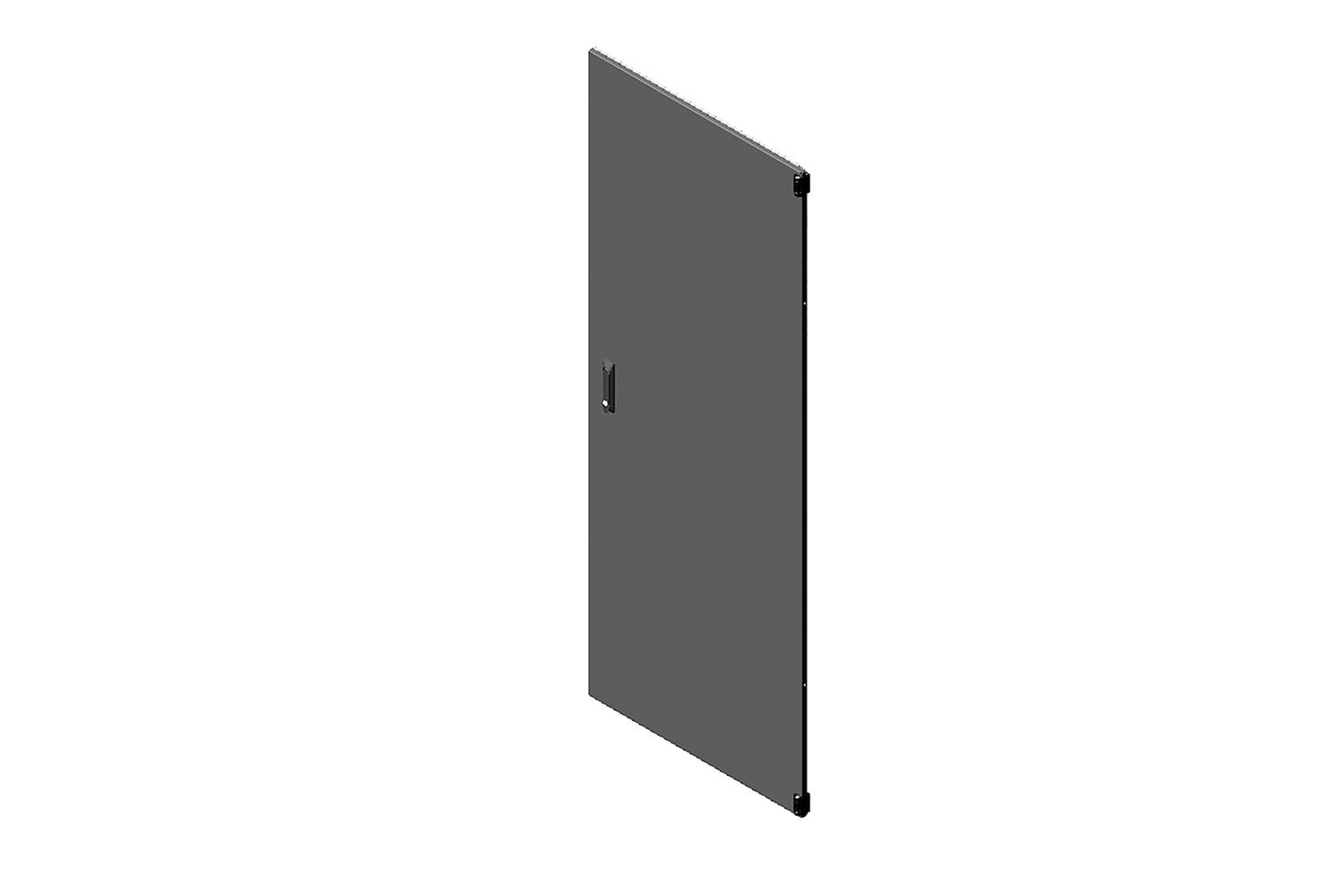

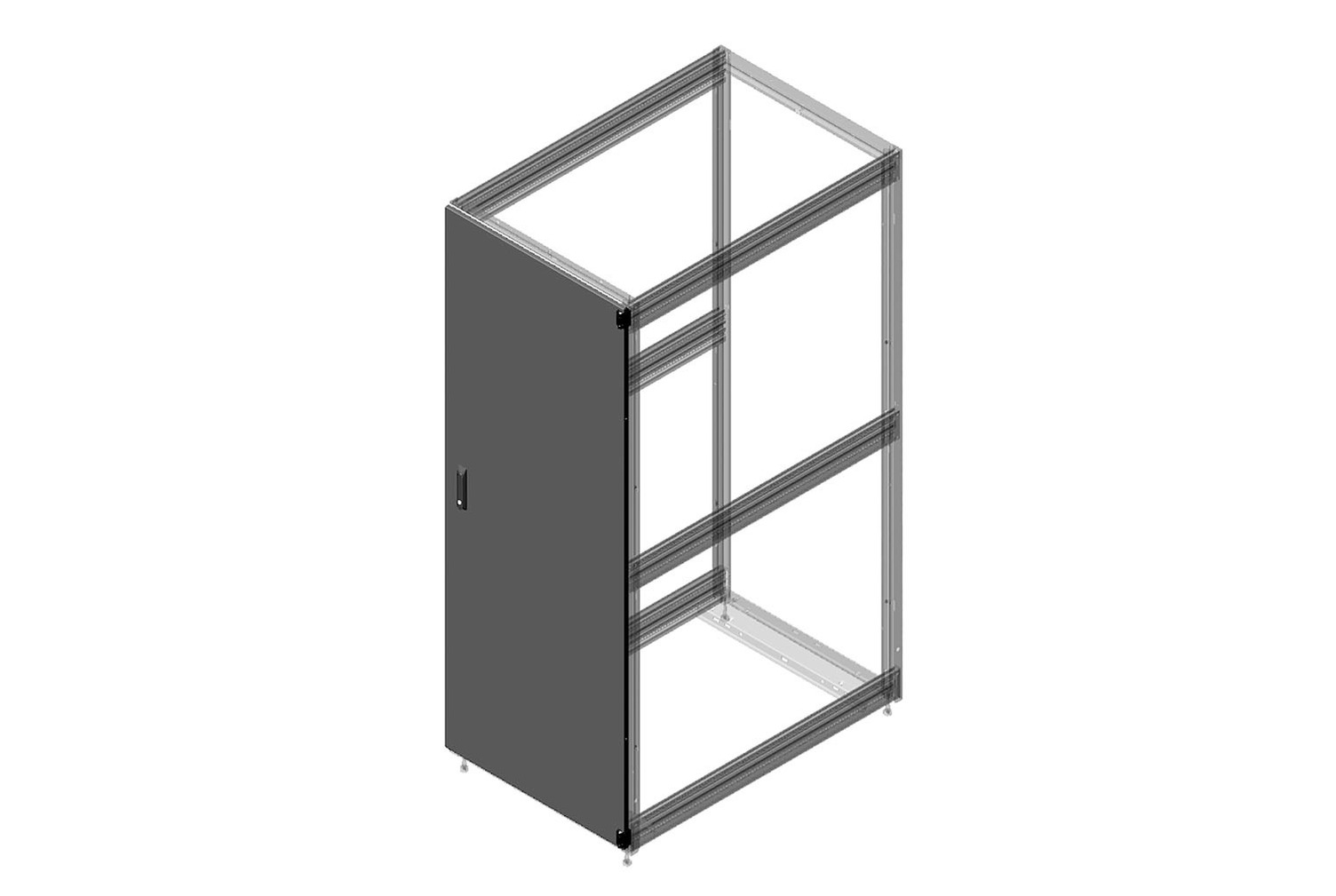

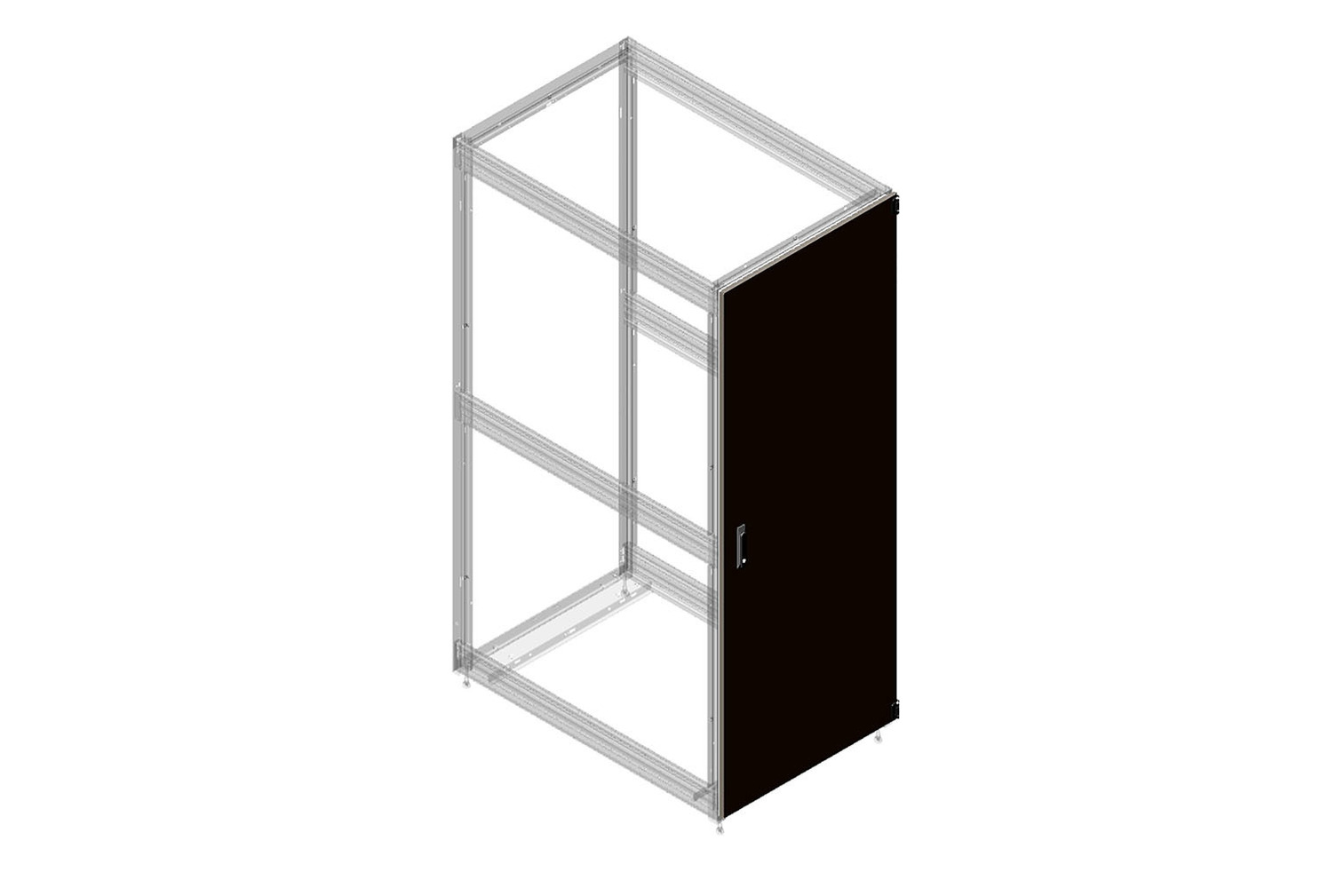

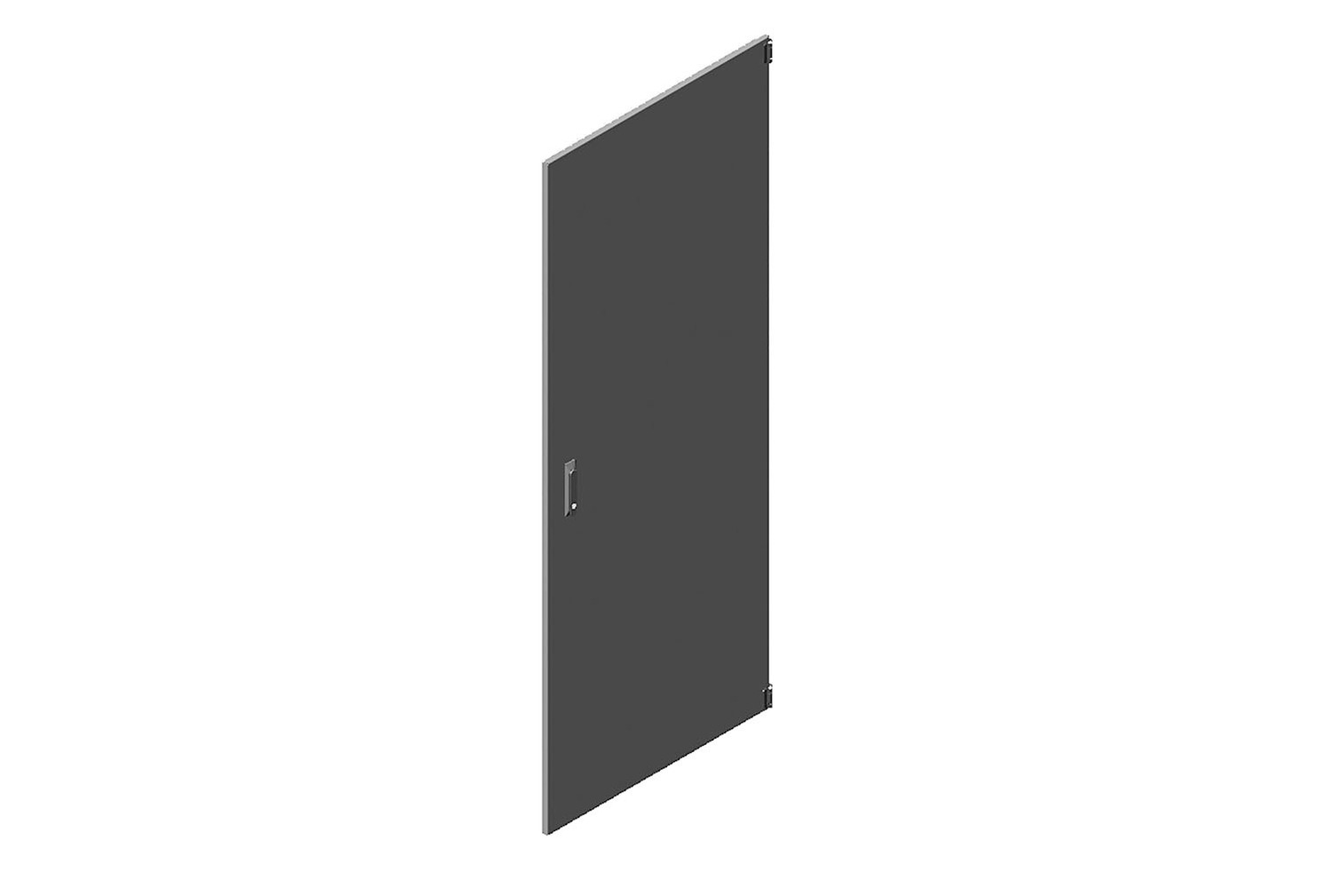

Single Solid Metal Rear Door with Seal for ZetaFrame® Cabinet

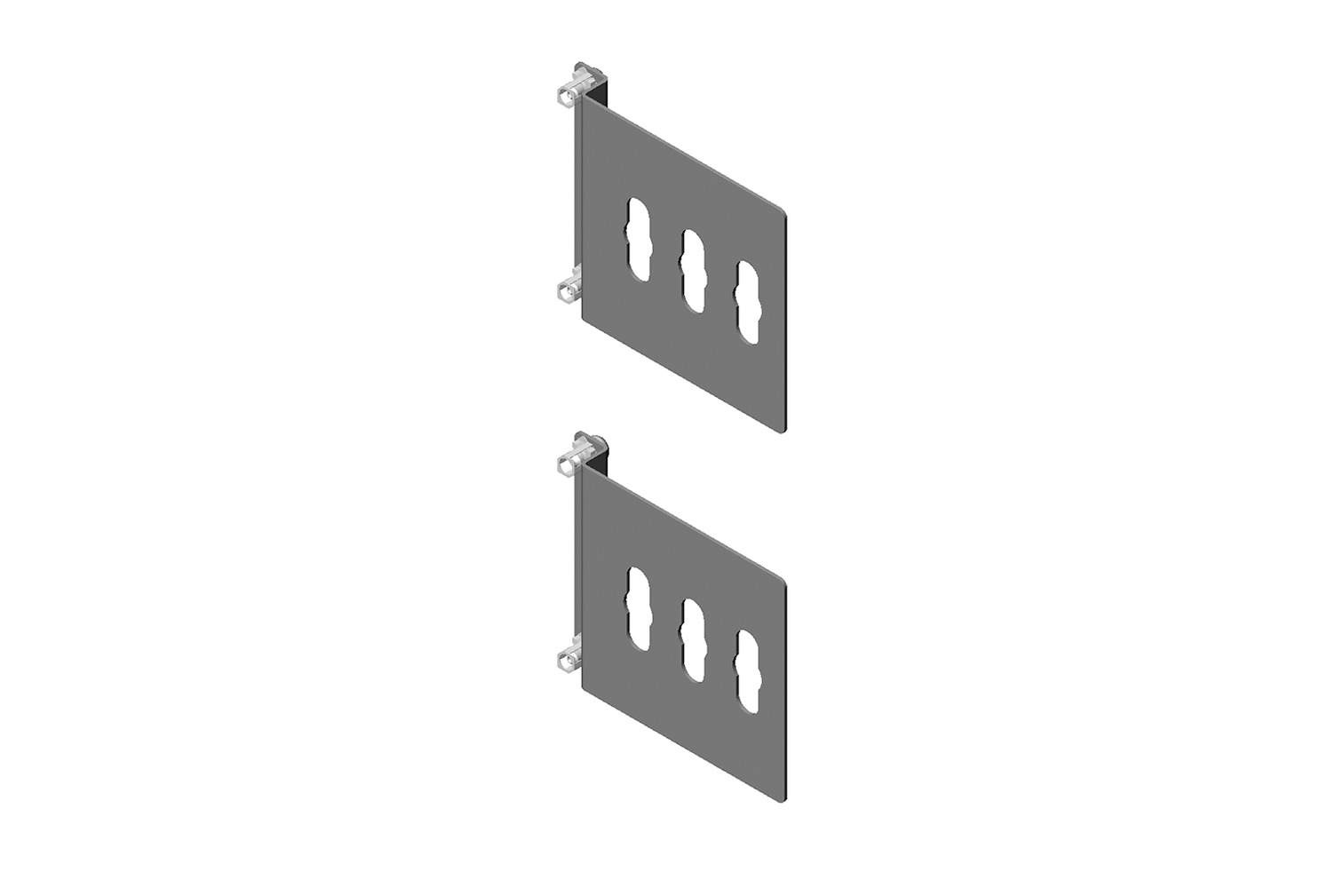

Standard PDU Bracket Kit for ZetaFrame®Cabinet, 2-Piece, Black

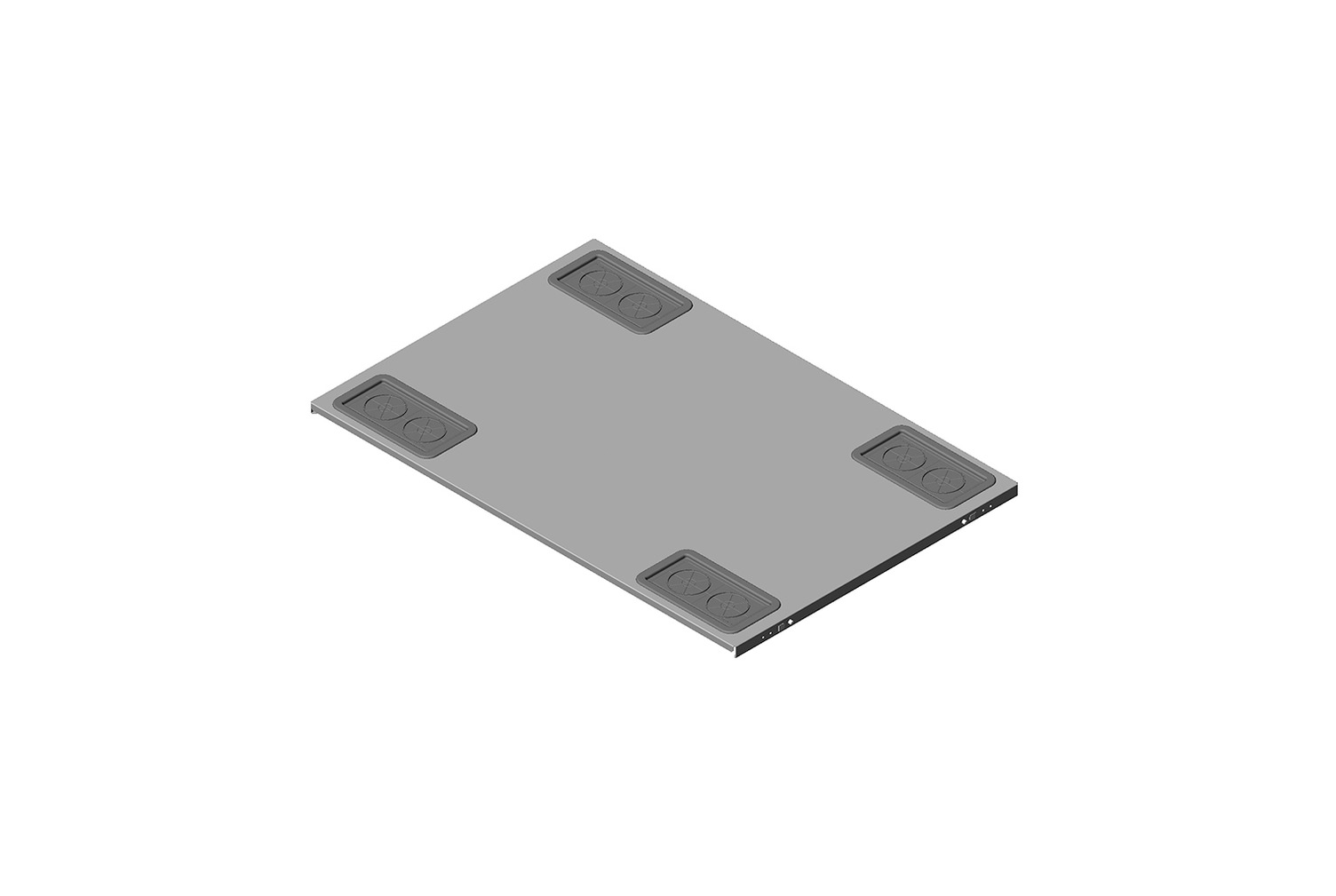

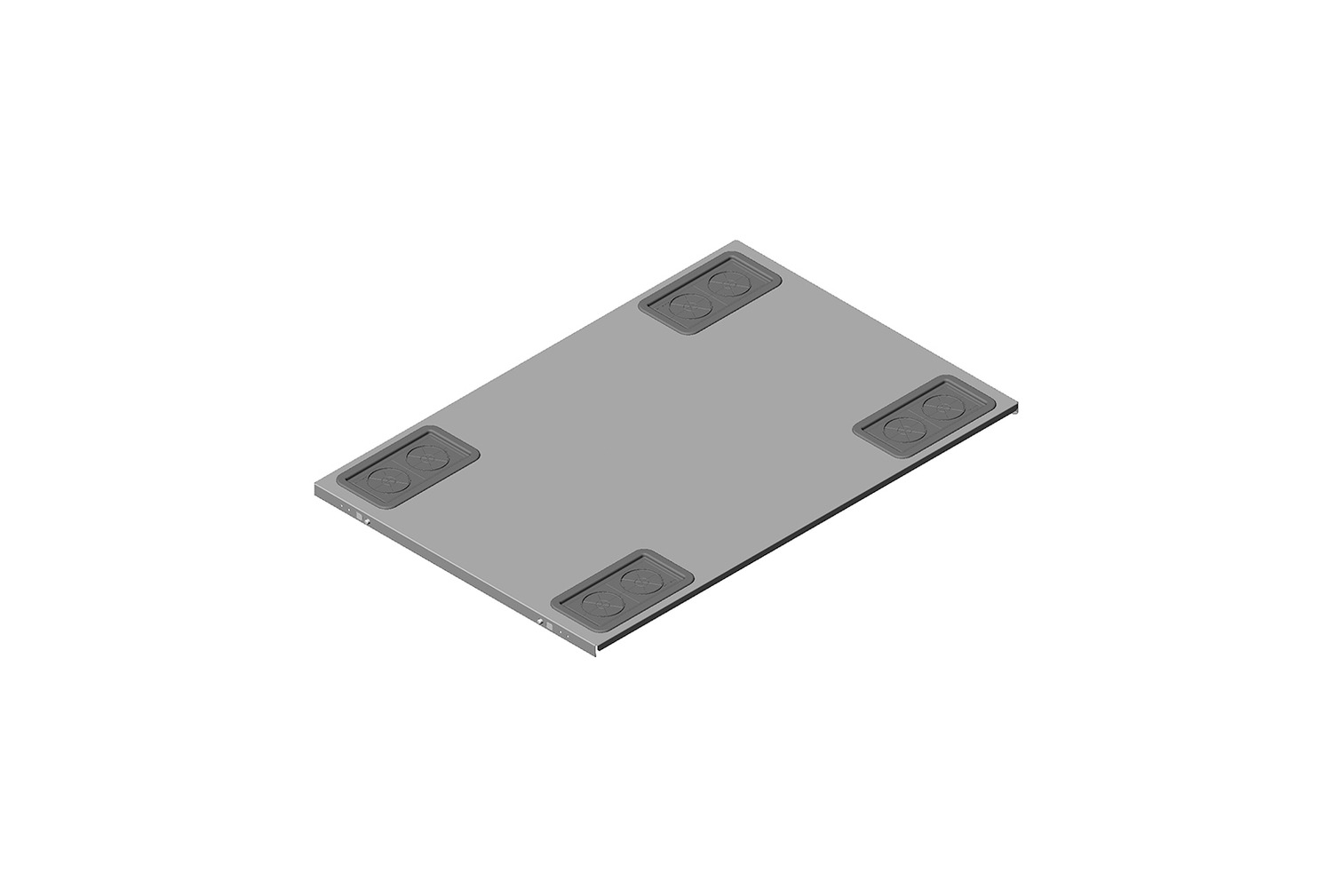

Solid single-piece top panel with large grommet-sealed cable openings in each corner contains airflow within the cabinet while allowing cables to
enter/exit the top panel.
Cabinet Width, Color, Depth

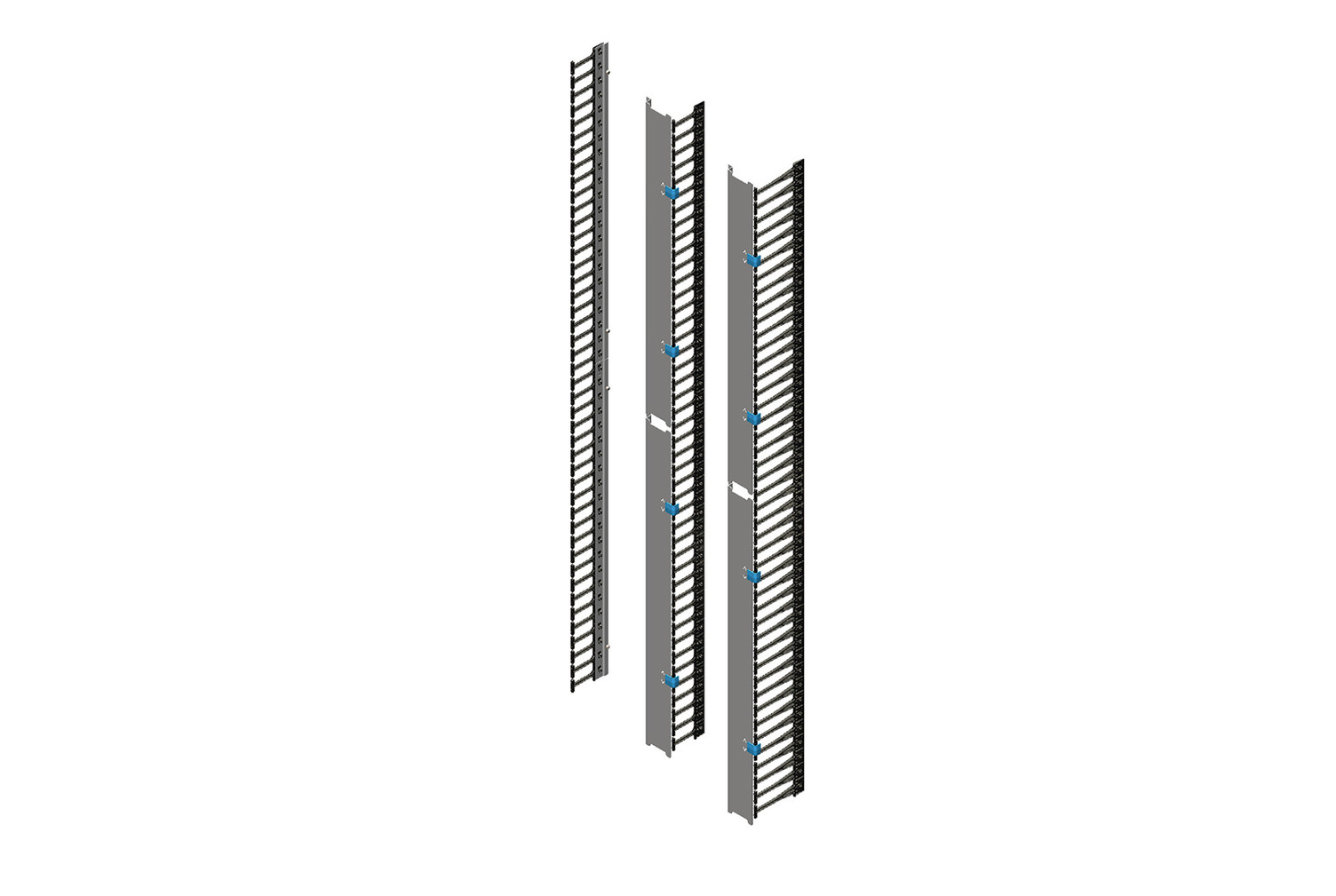

Keep network cables separate and organized using the following cable management accessories.
Cabinet Width, Height RMU, Type

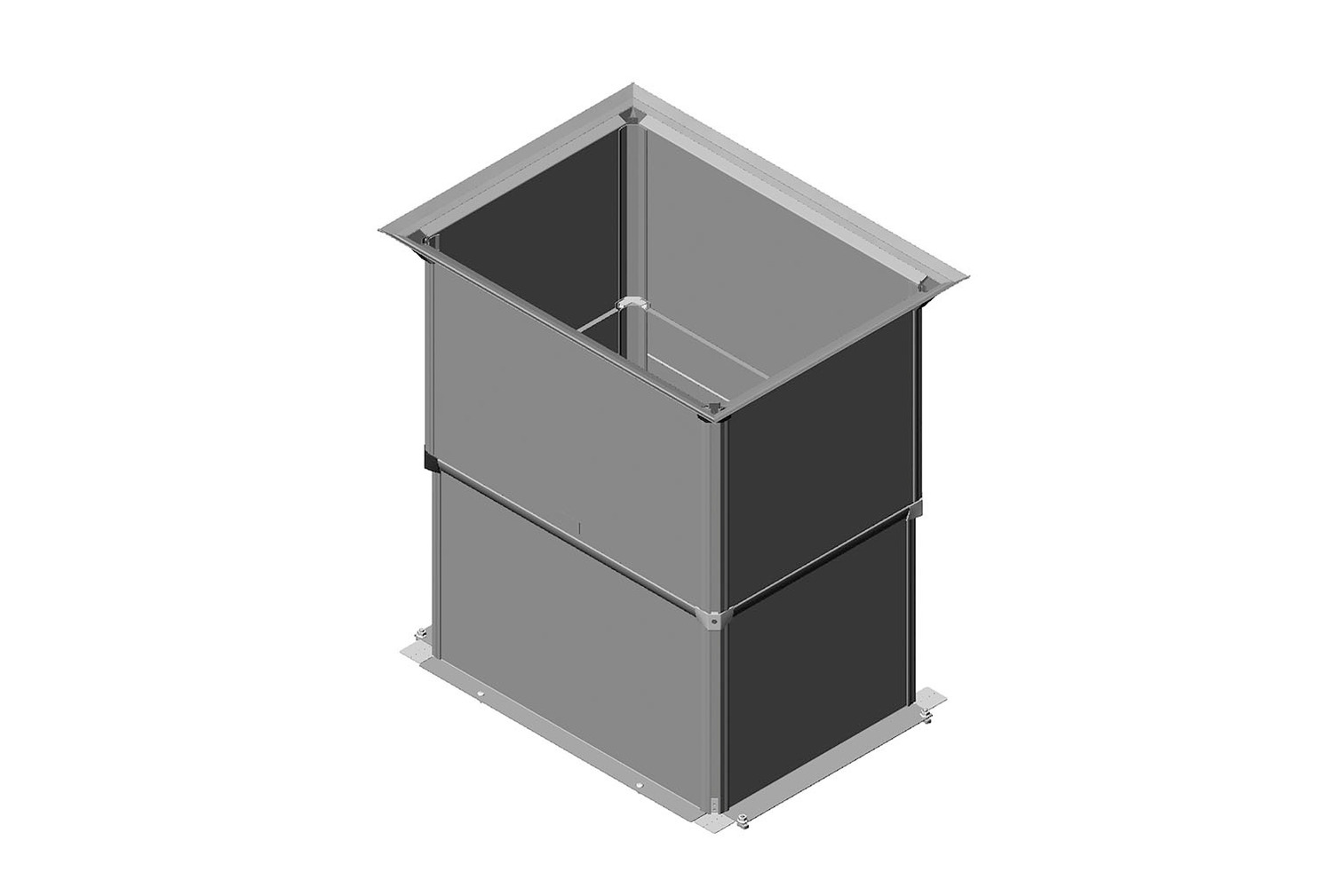

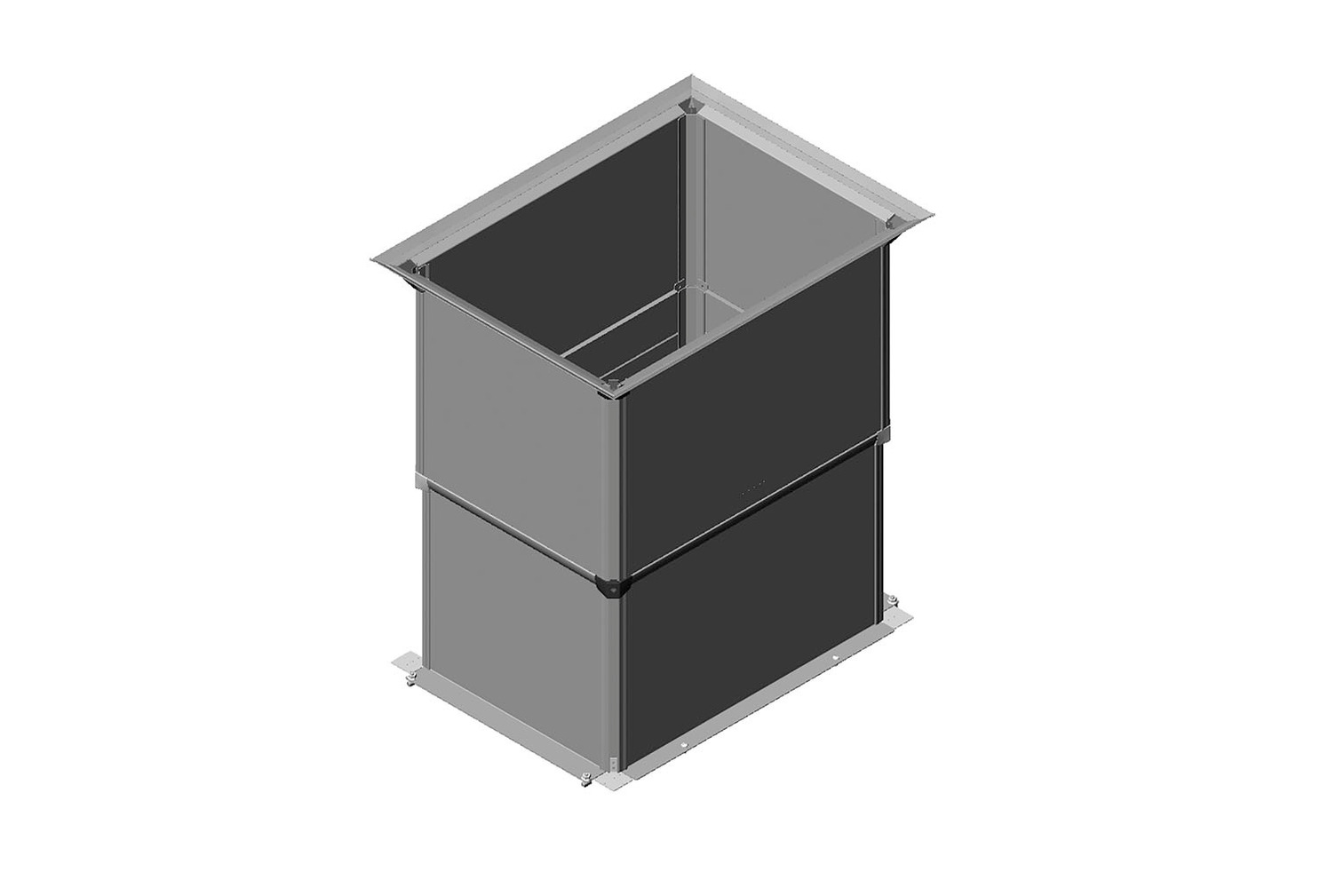

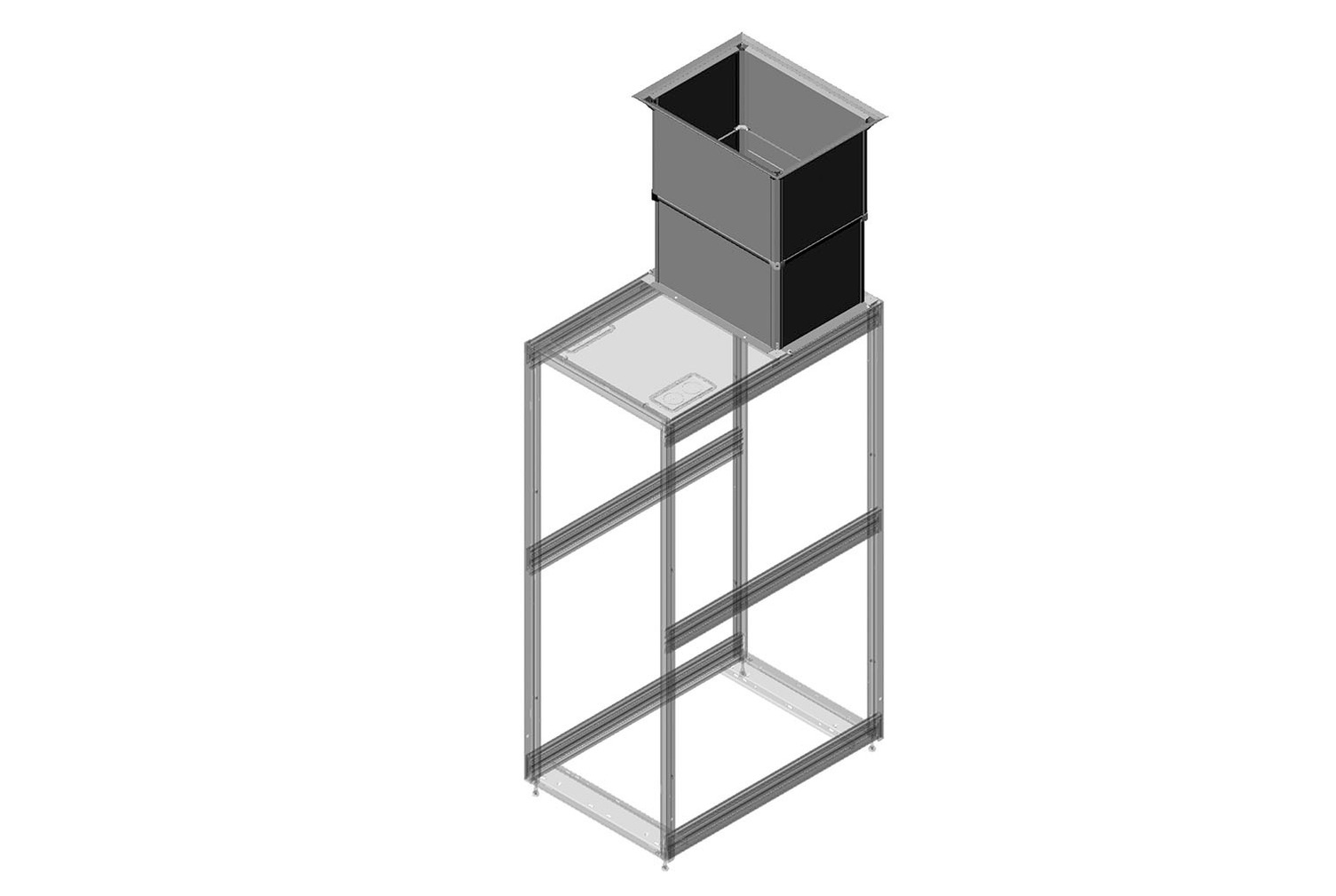

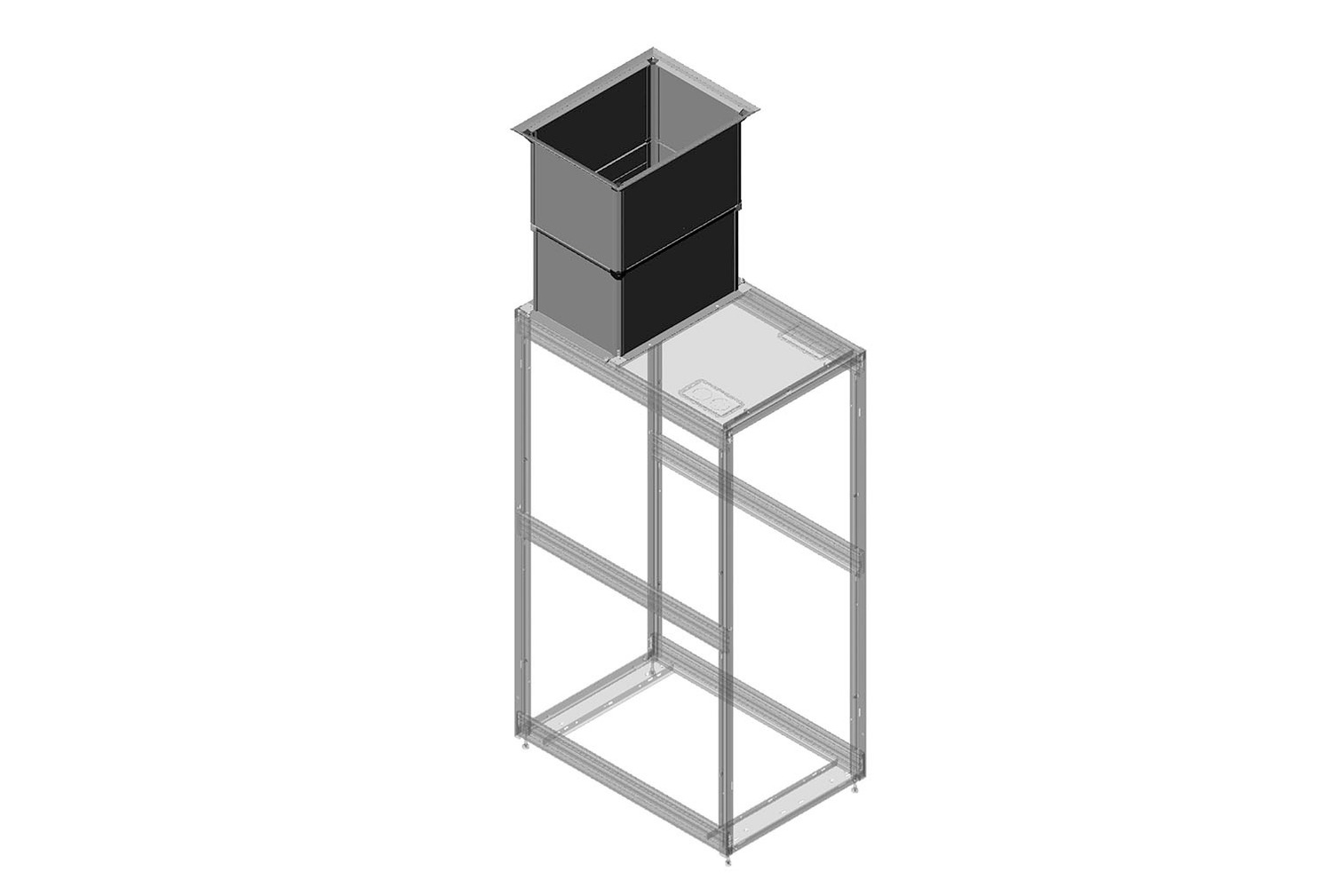

The Vertical Exhaust Duct attaches to the top of the cabinet to provide a sealed pathway for exhaust air from the top of the cabinet to an overhead drop ceiling as part of a closed hot air return.
Cabinet Width, Duct Height, Color

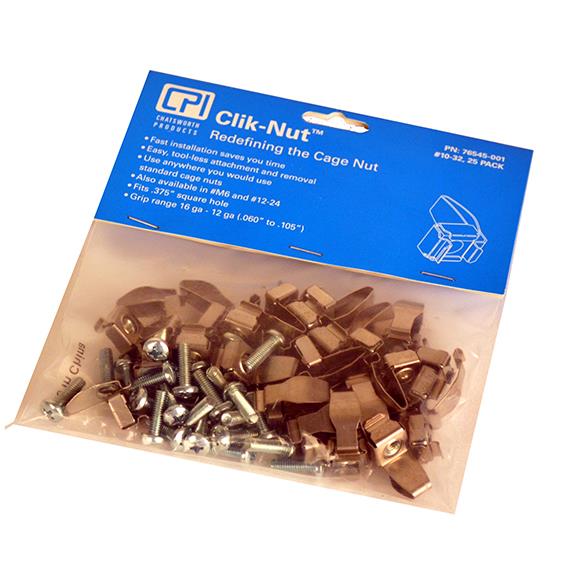

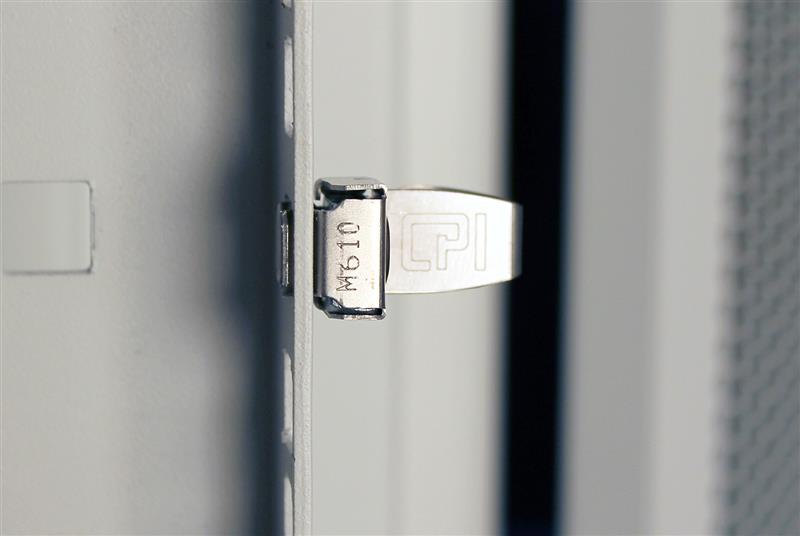

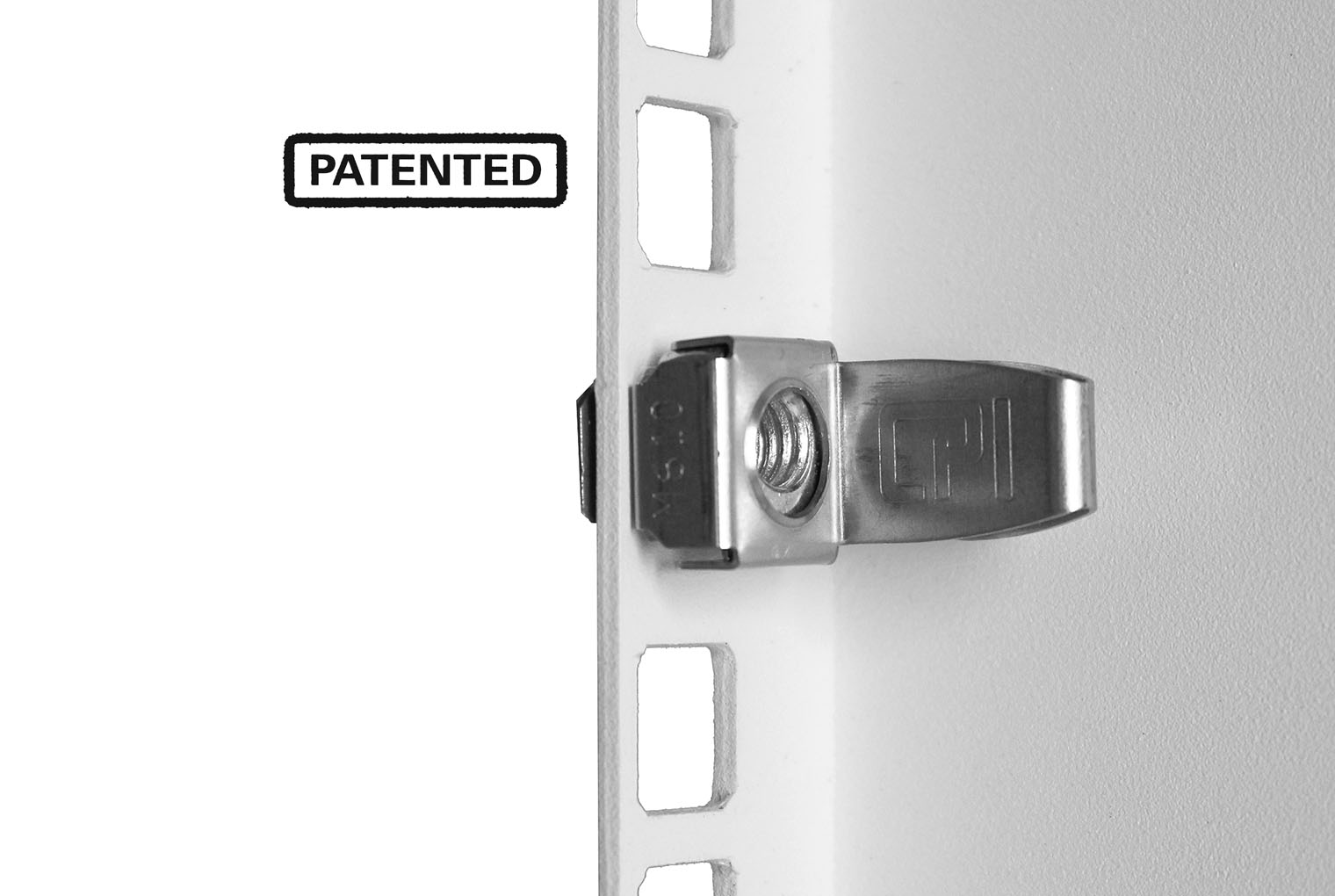

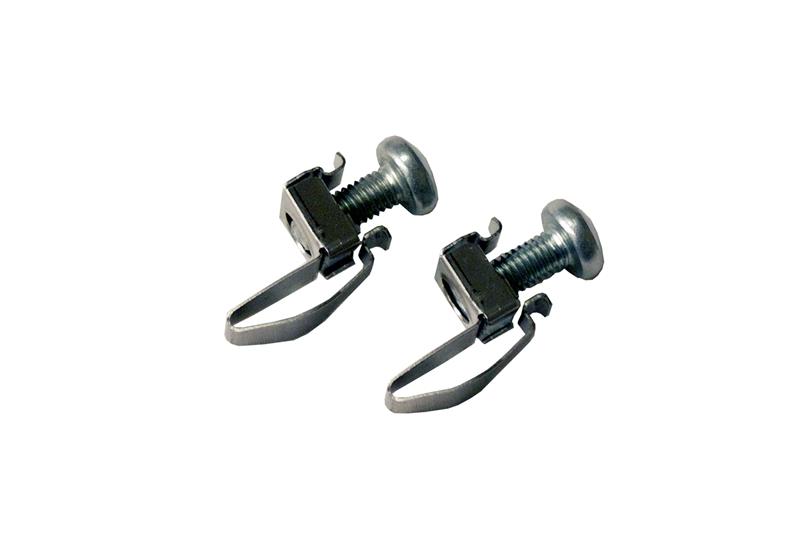

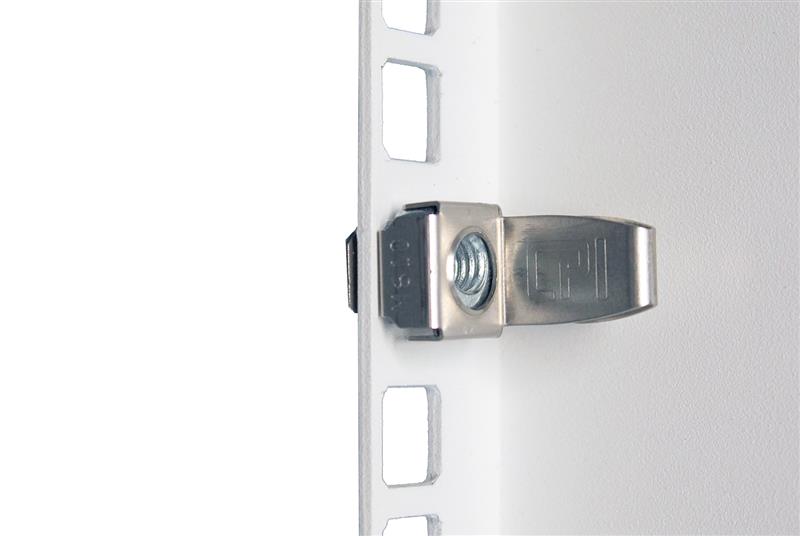

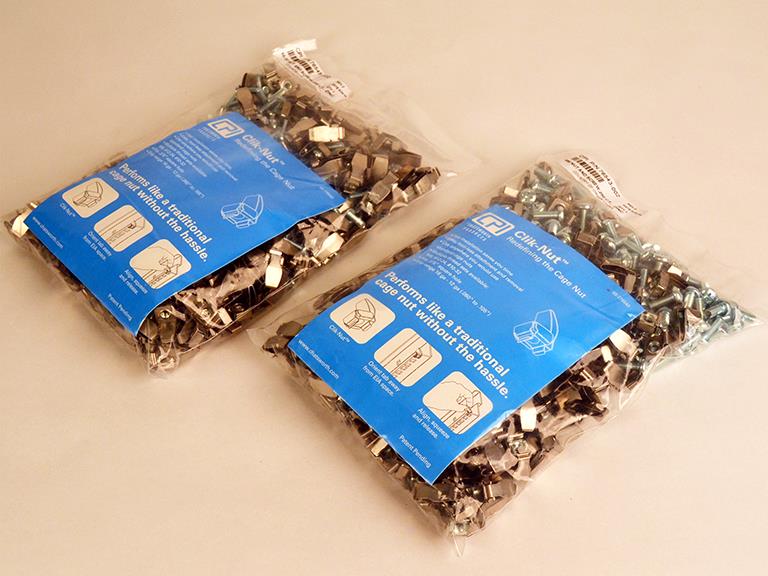

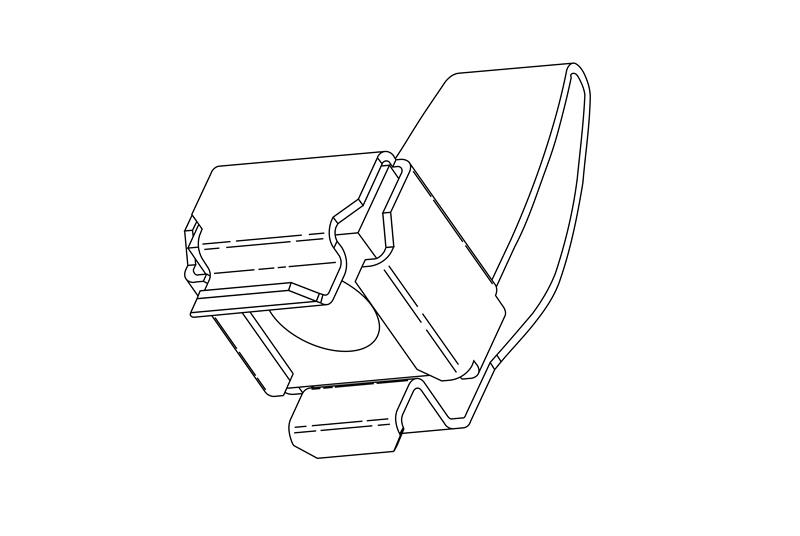

Clik-Nut® Hardware Kit by Chatsworth Products (CPI) solves the fundamental issues with standard cage nuts. The innovative design eliminates the need for tools, resulting in easier and faster installation, while maintaining load-bearing strength. Clik-Nut reduces labor and installation time by at least 70%.
Type, Quantity, Color

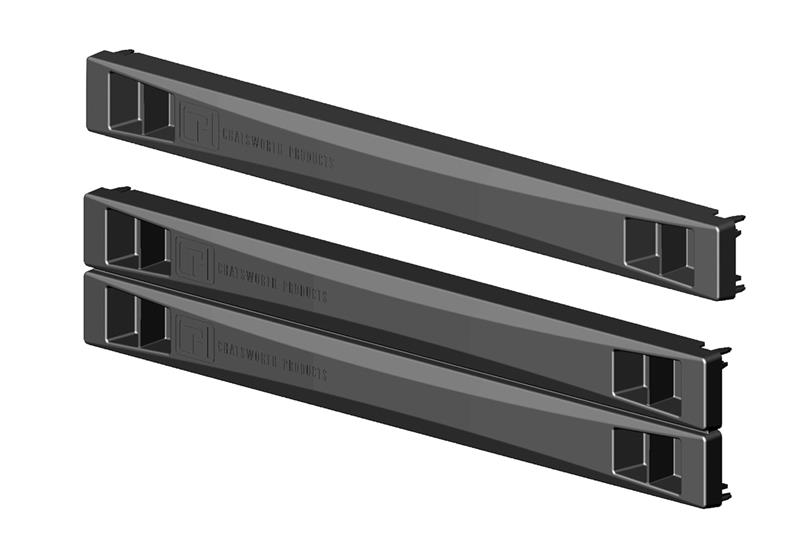

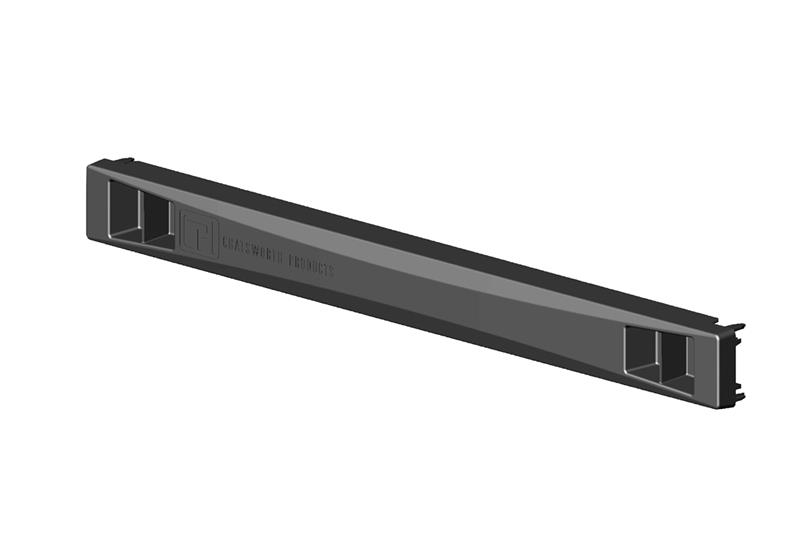

Snap-In Filler Panel by Chatsworth Products (CPI) greatly reduces bypass airflow and blocks recirculation of hot exhaust air from the back of equipment to the front of equipment, helping to improve on cooling costs.
Advantages:
Complete Sealing - Reduces bypass airflow in between equipment by sealing unused rack-mount spaces (U) in cabinets
Tool-less Installation - Snaps into square-punched or tapped mounting holes on equipment rails. Integrated finger grips provide easy installation and removal
Two Options - Available for square punched or tapped equipment mounting rails
Height, Type, Quantity, Color

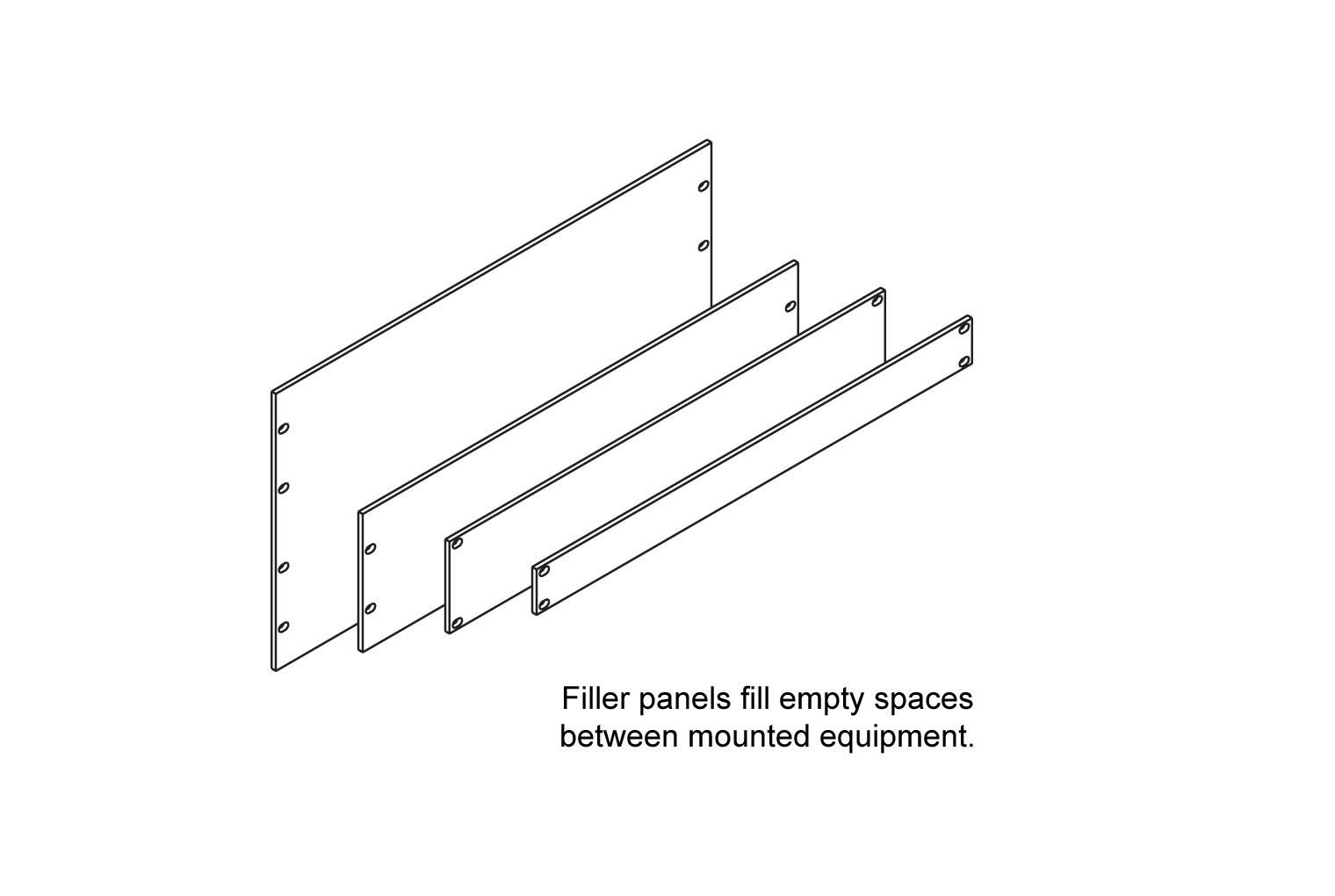

For airflow control and/or equipment mounting, fill empty spaces between mounted equipment.
Height, Width, Type, Color

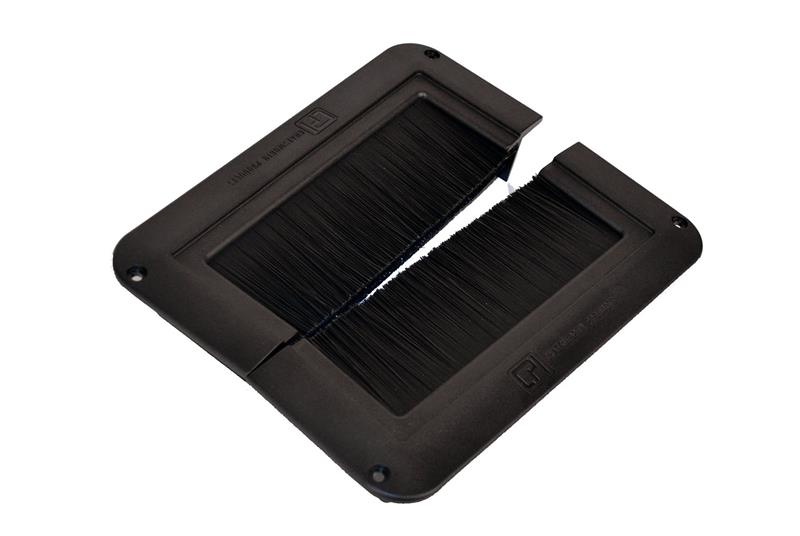

Chatsworth Products (CPI) Raised Floor Grommet is designed to seal new or existing cable penetrations in data center raised floor environments. The split two-piece design allows for installation along the edge of a raised floor tile. This approach does not “capture” cables and allows for quick tile removal without disrupting your network.

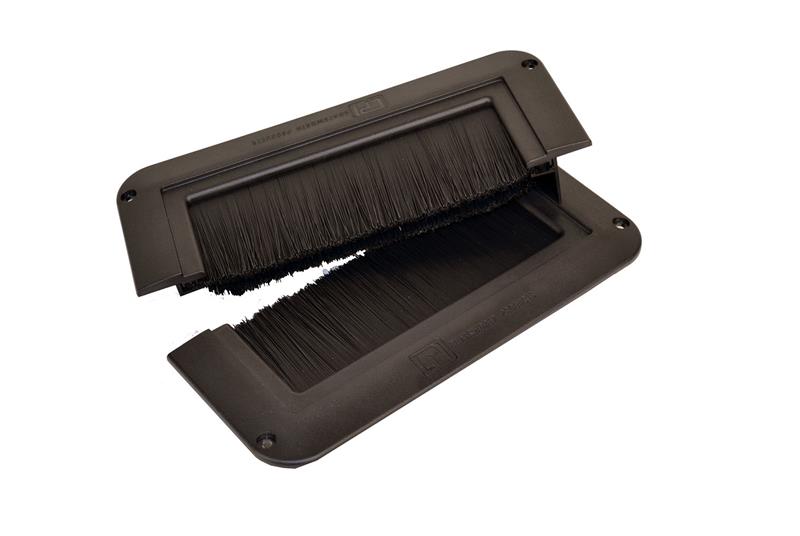

Durable nylon brushes provide a seal around cables to reduce bypass airflow. The rectangular grommet includes a dual-layer of brush and integrated EPDM flexible membrane that provides a superior level of sealing effectiveness.

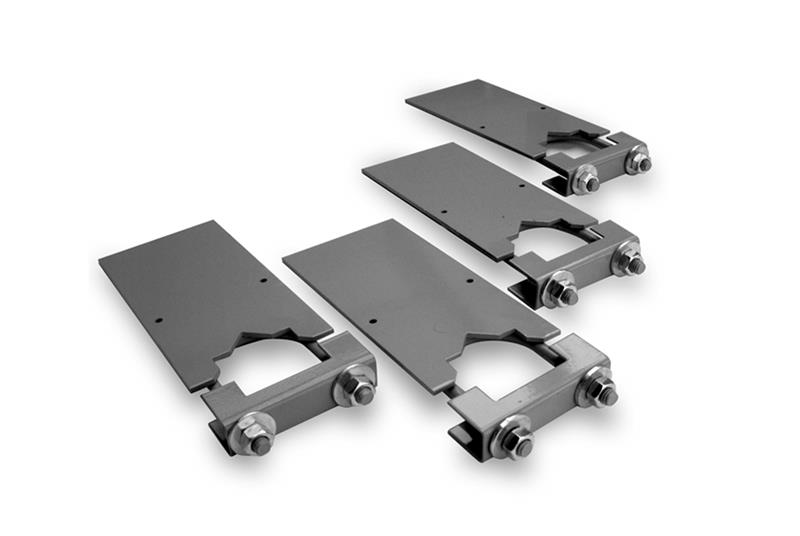

Additional brackets used to support Raised Floor Enclosures from access floor support pedestals. Kit includes four brackets.

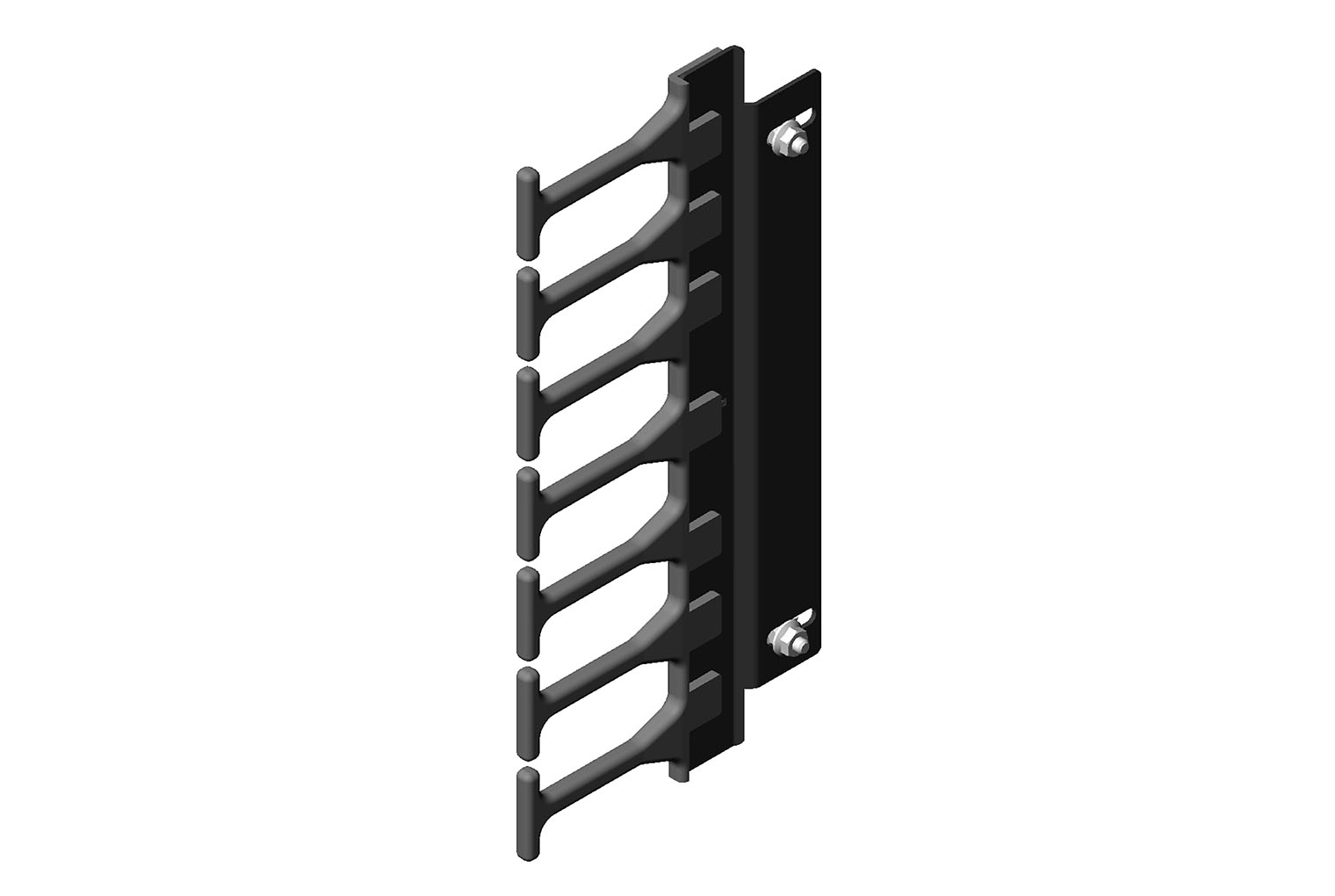

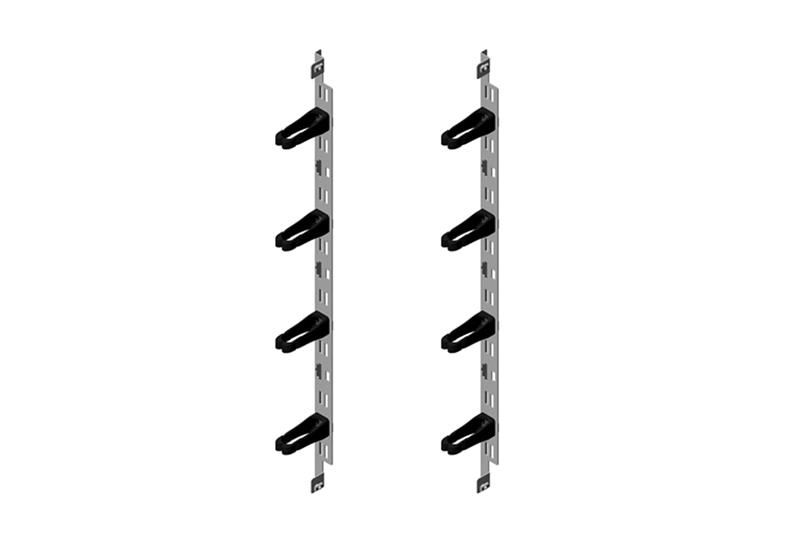

Ring Cable Manager is independent of the equipment mounting rails, creating a separate vertical pathway for cables and includes plastic cable rings to organize cables.
Width, Rack Height, Color

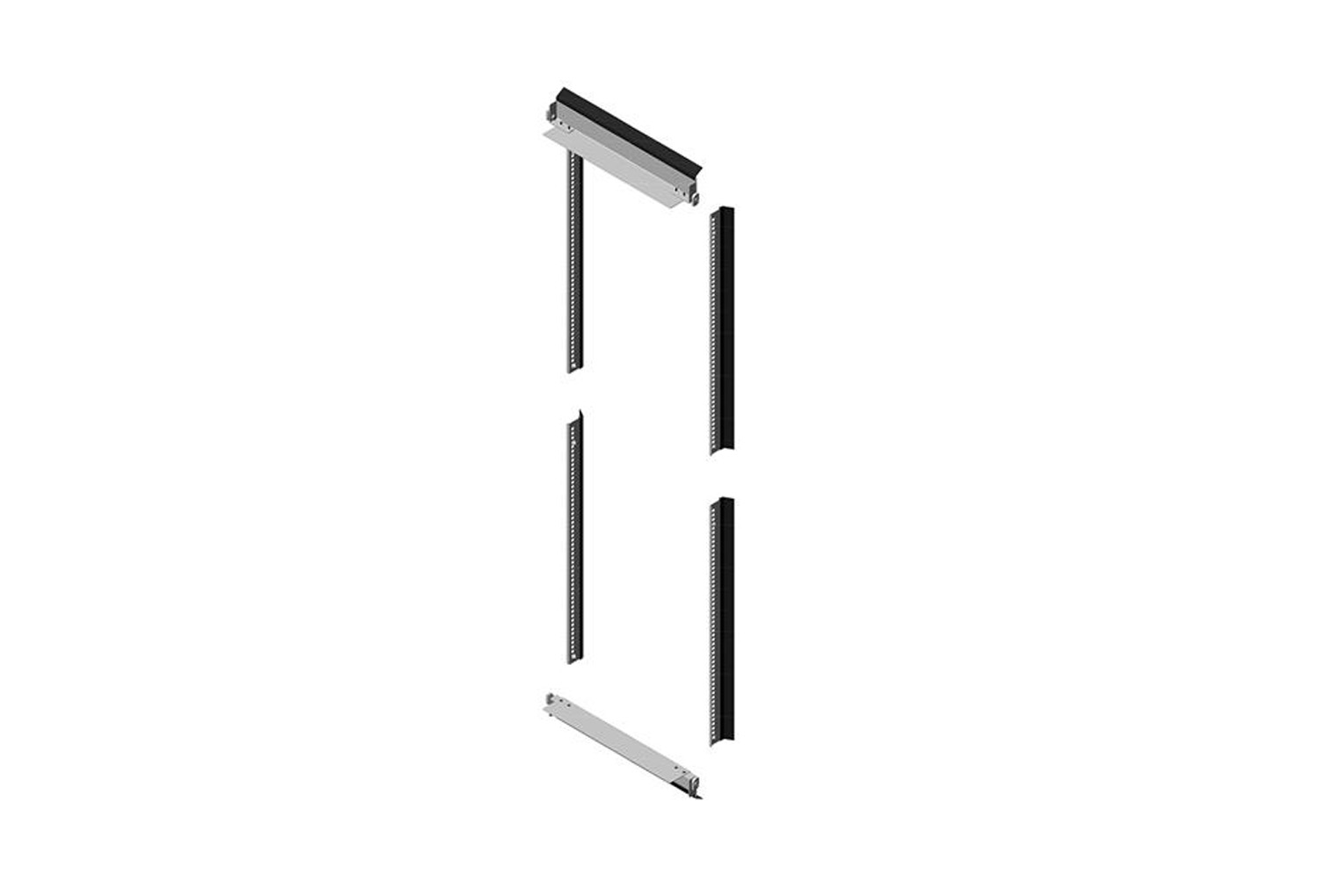

Air Dam blocks airflow around the sides and top of the equipment mounting space in Z4-Series SeismicFrame® Cabinets, so cold air passes through equipment, and hot air does not recirculate around equipment.
Width, Height, Color

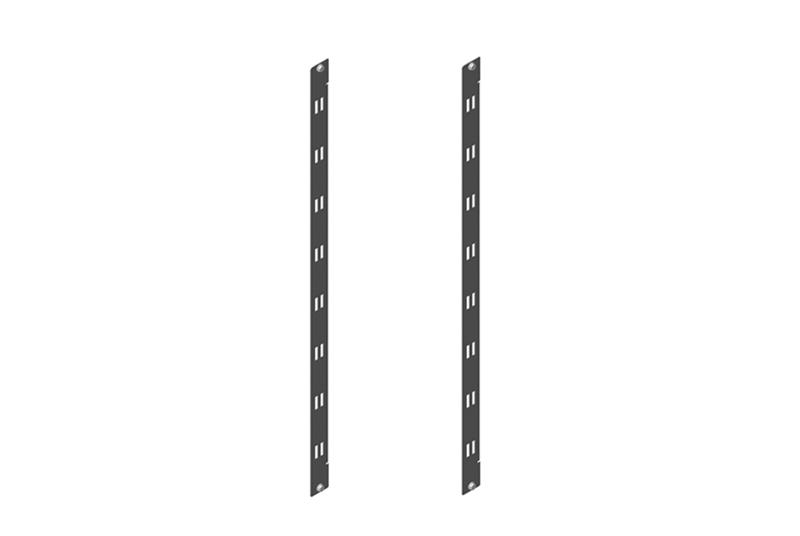

Cable Lashing Bracket creates a simple, separate vertical pathway for a small bundle of cable and has multiple slots for CPI Saf-T-Grip® Straps or tie wraps to secure cables to the bracket. For use with Z4-Series SeismicFrame® Cabinets.
Height, Rack Height, Color

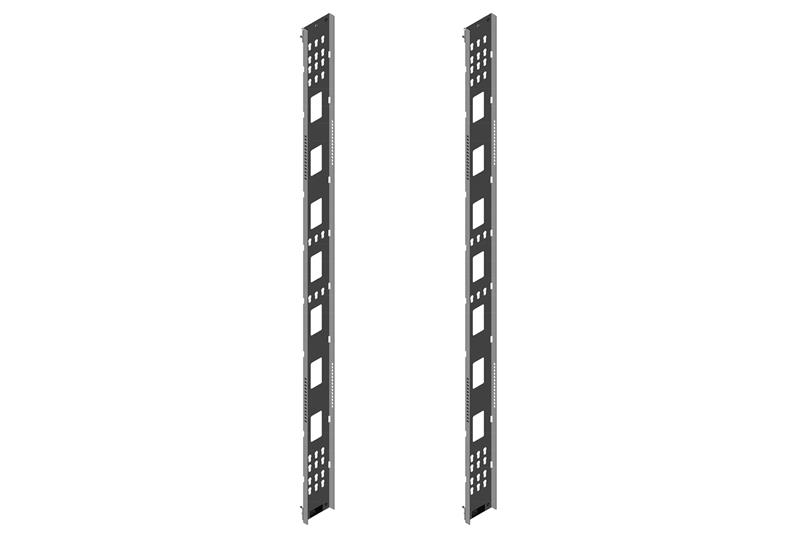

Full Height PDU Bracket supports two vertical PDUs side-by-side and has multiple slots for CPI Saf-T-Grip® Straps or tie wraps to secure cords to the bracket. For use with Z4-Series SeismicFrame® Cabinets.
Color
Cable Port Brush Kit for CUBE-iT®Wall-Mount Cabinet; 0.8"H x 10.6"W x 2.9"D (20 mm x 268 mm x 74 mm); Black; Pair

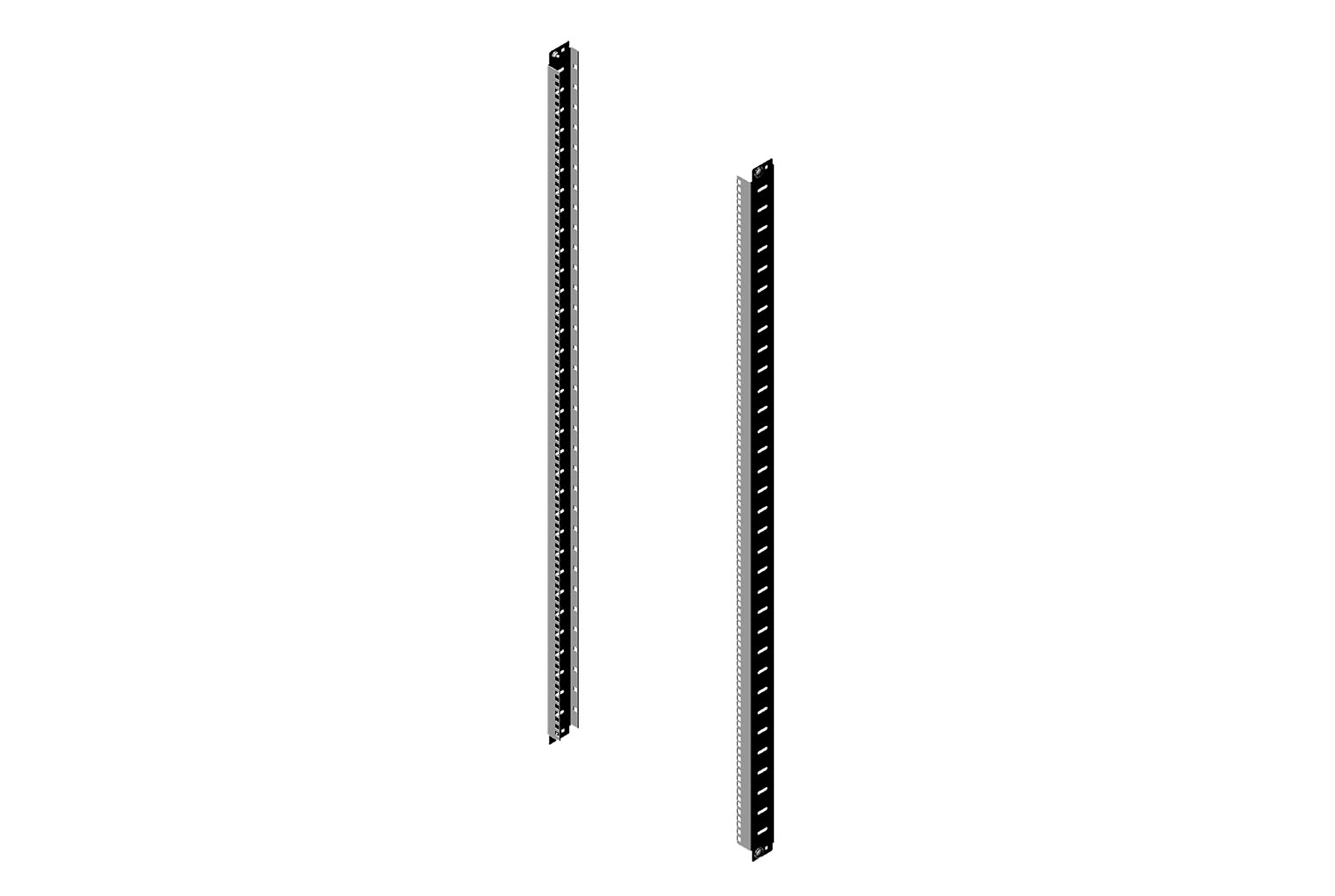

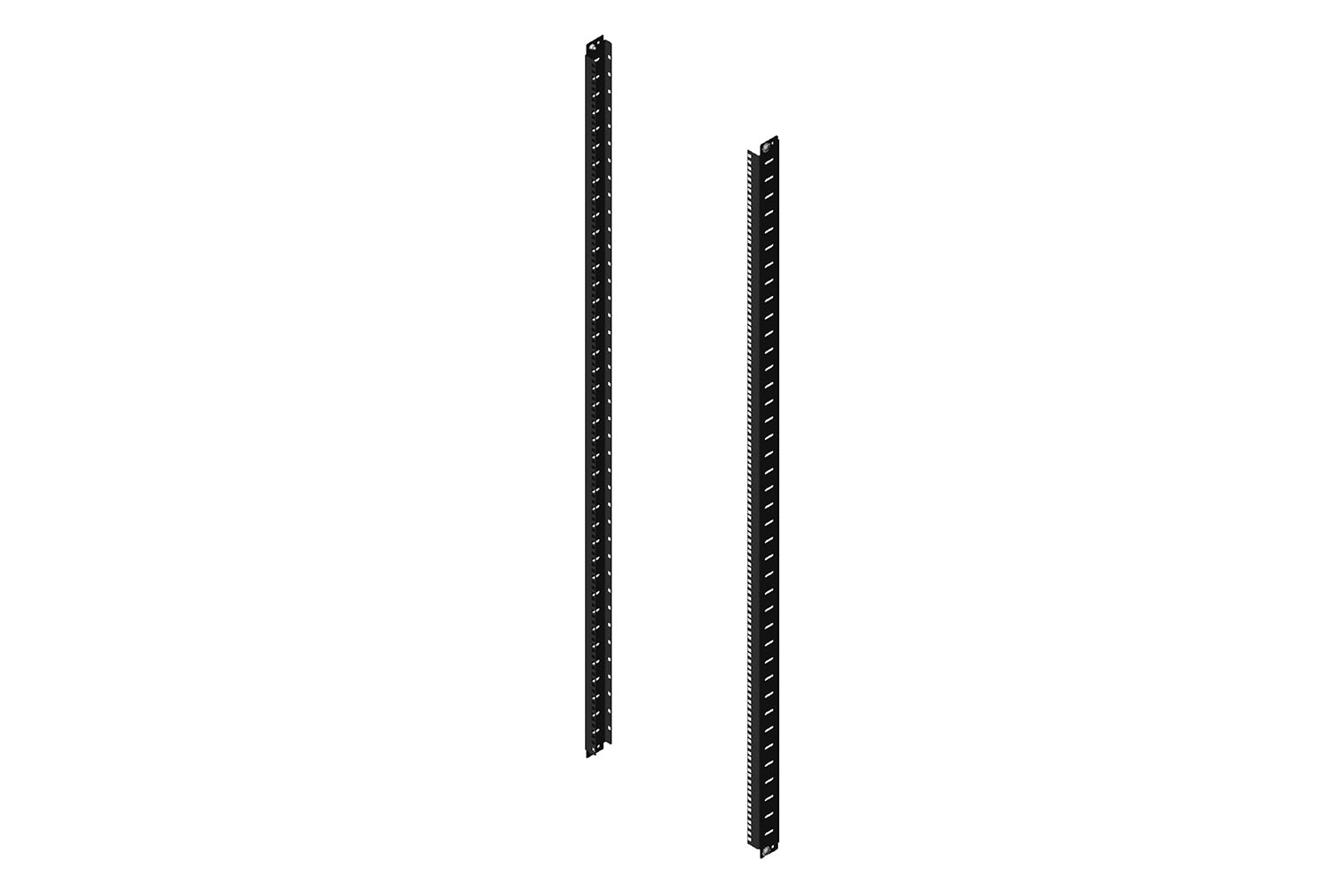

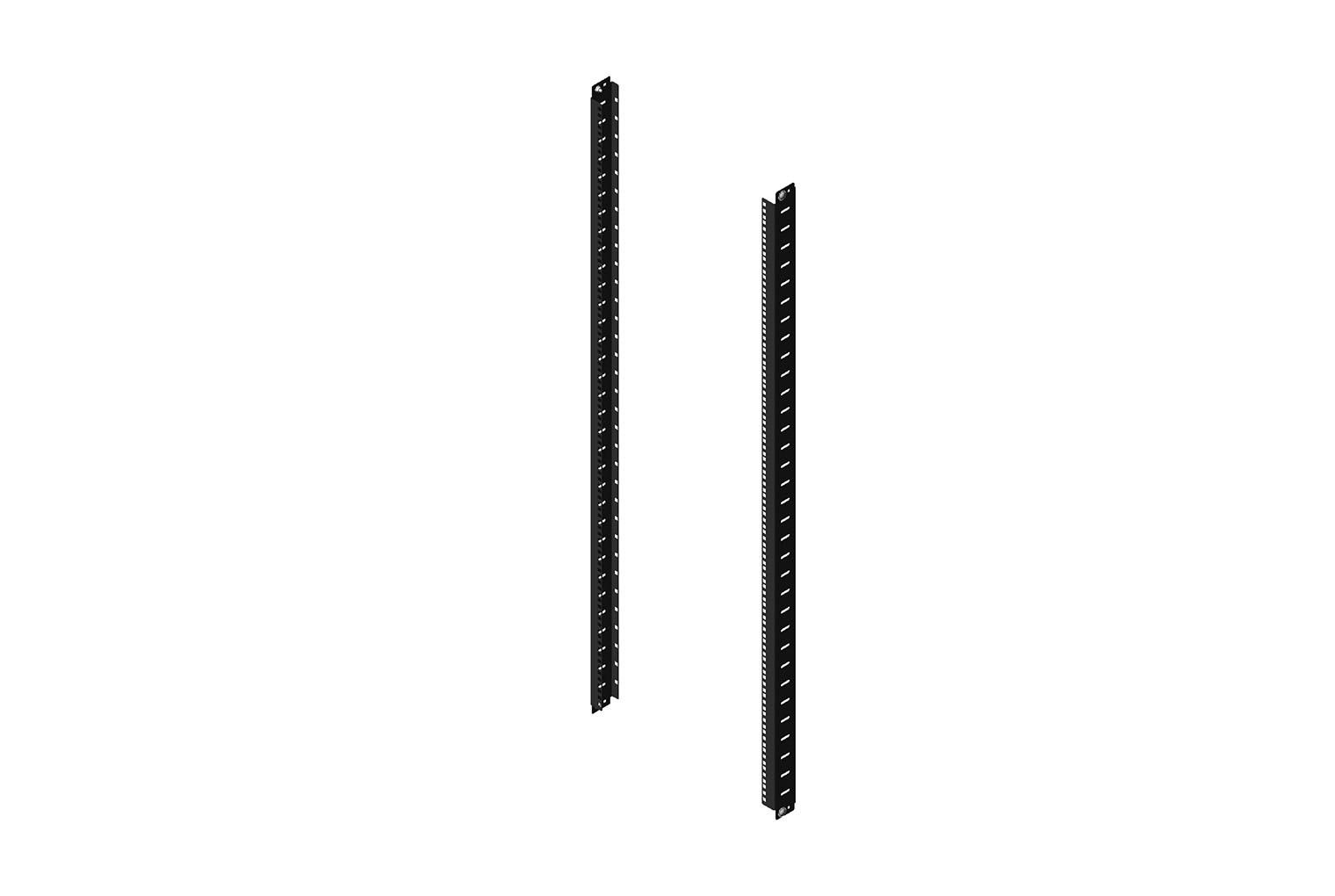

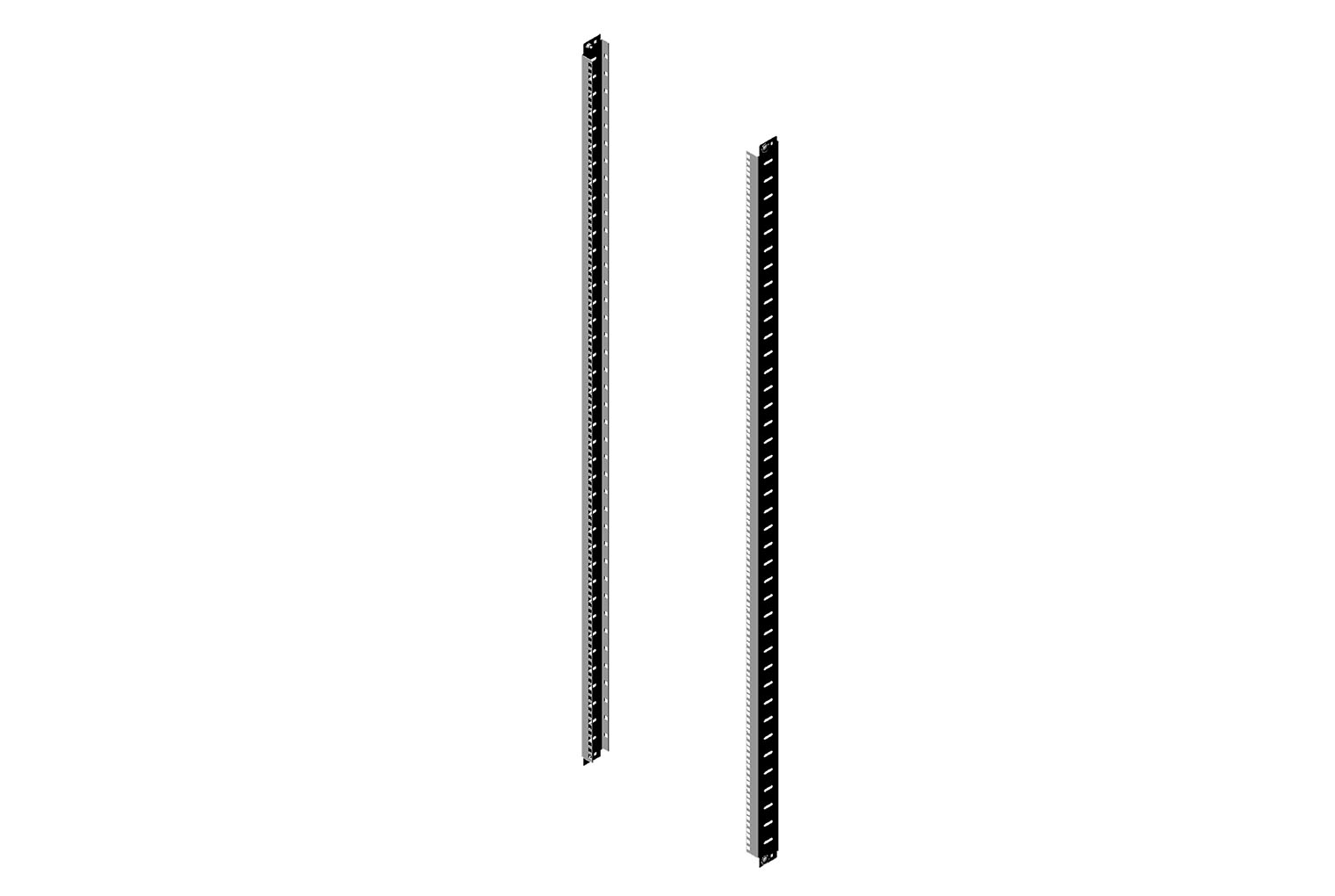

Equipment Mounting Rail Kit for CUBE-iT Cabinet for use with equipment that needs front and rear support
Color, Height
Foot Kit for CUBE-iT Wall-Mount Cabinet for use on desktops or floor when not installed on a wall

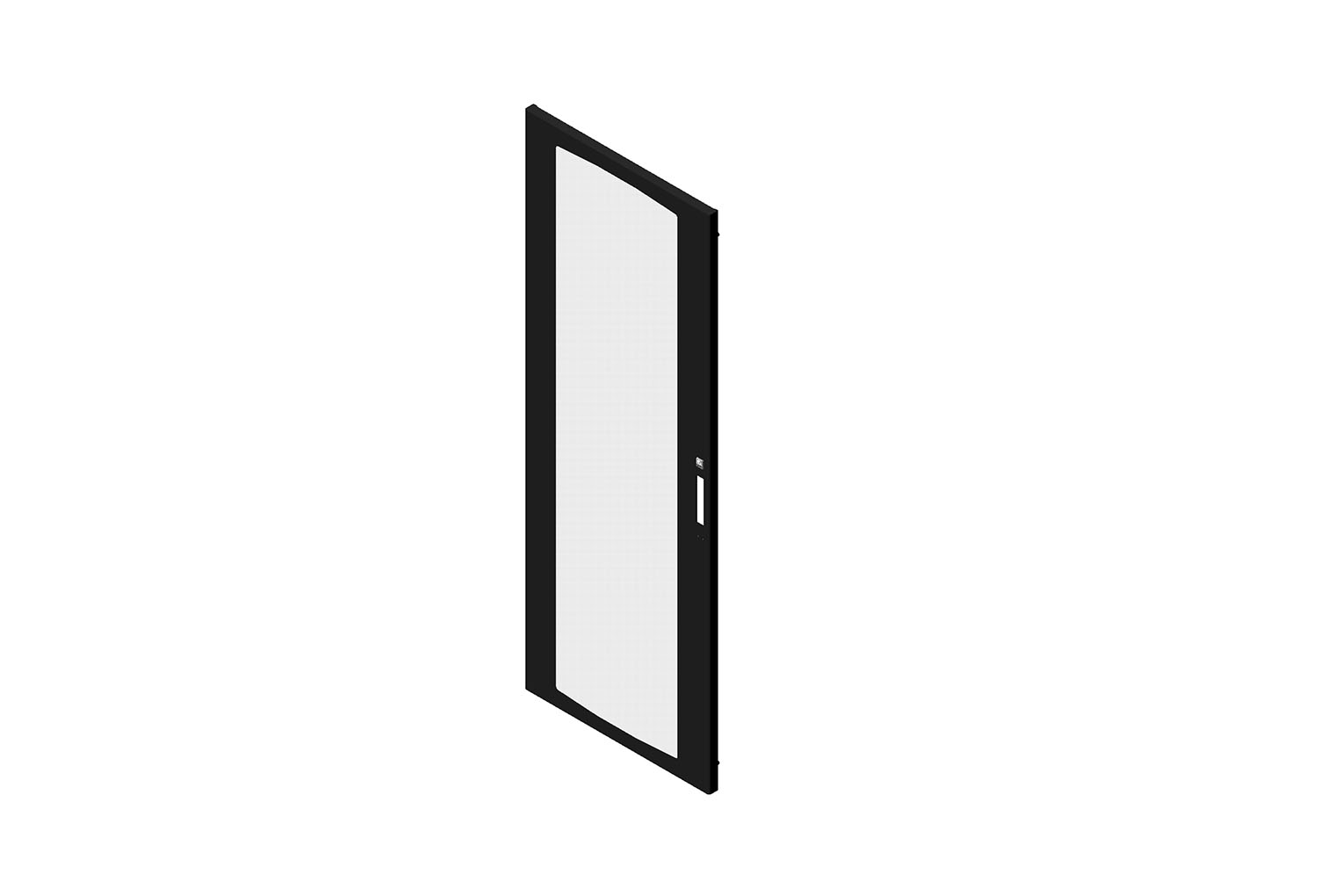

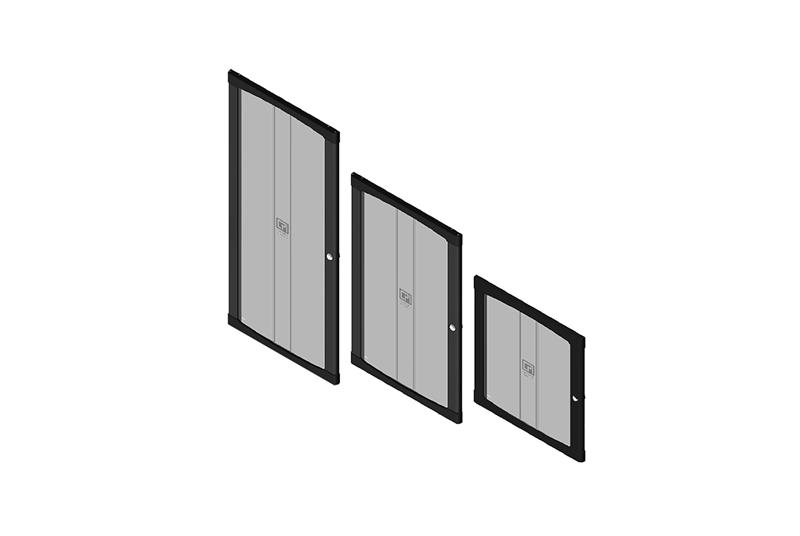

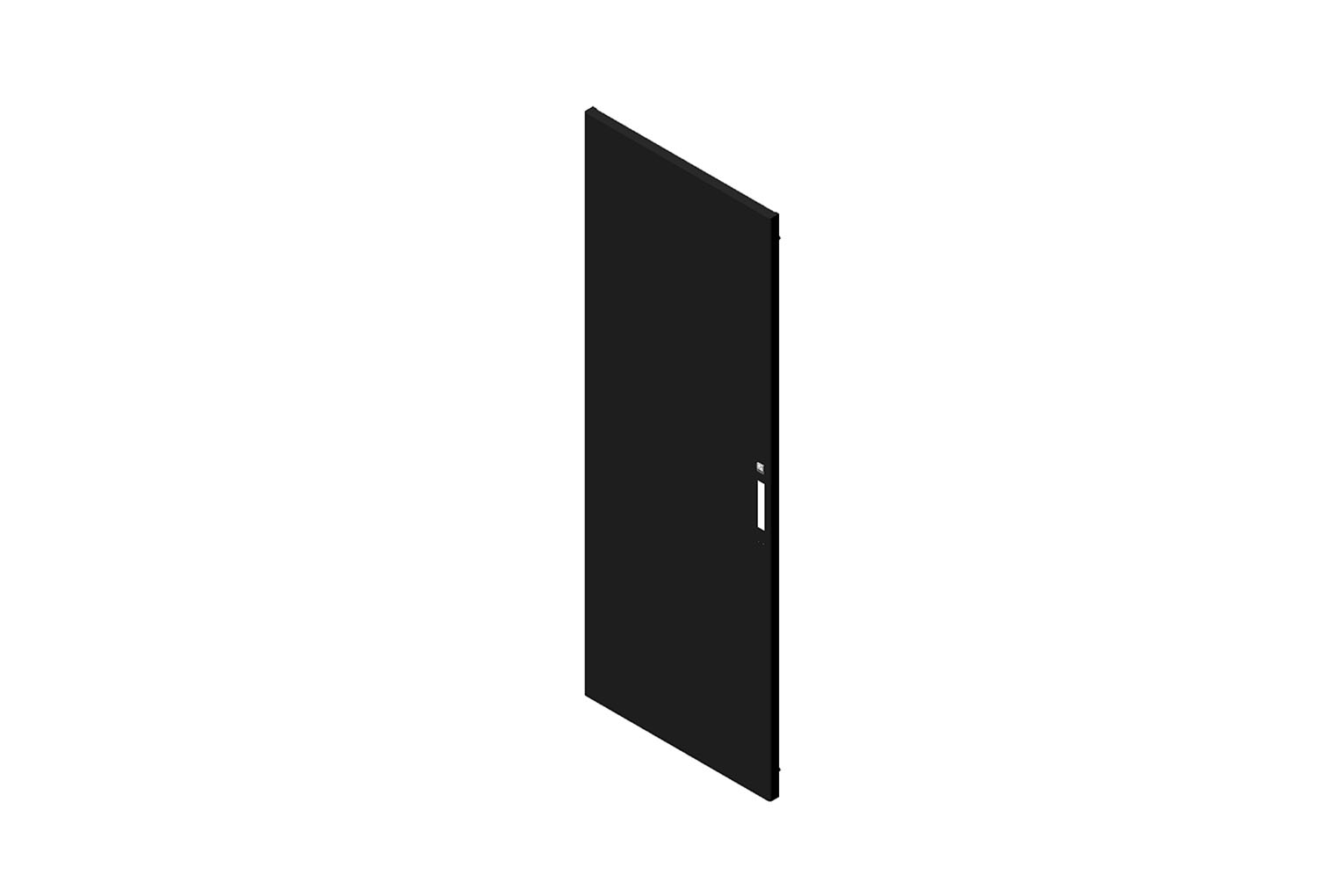

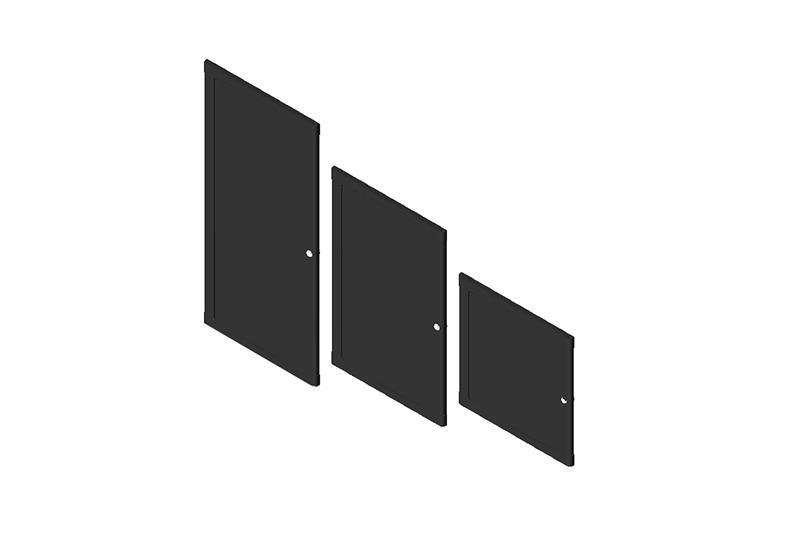

Replacement doors for CUBE-iT™ Wall-Mount Cabinet
Height, Color, Door Style
Attaches to the rear of the equipment mounting rails
LED Light Kit for CUBE-iT Wall-Mount Cabinet, Power Switch, 5W, 120 VAC, NEMA 1-15P Power Cord; White

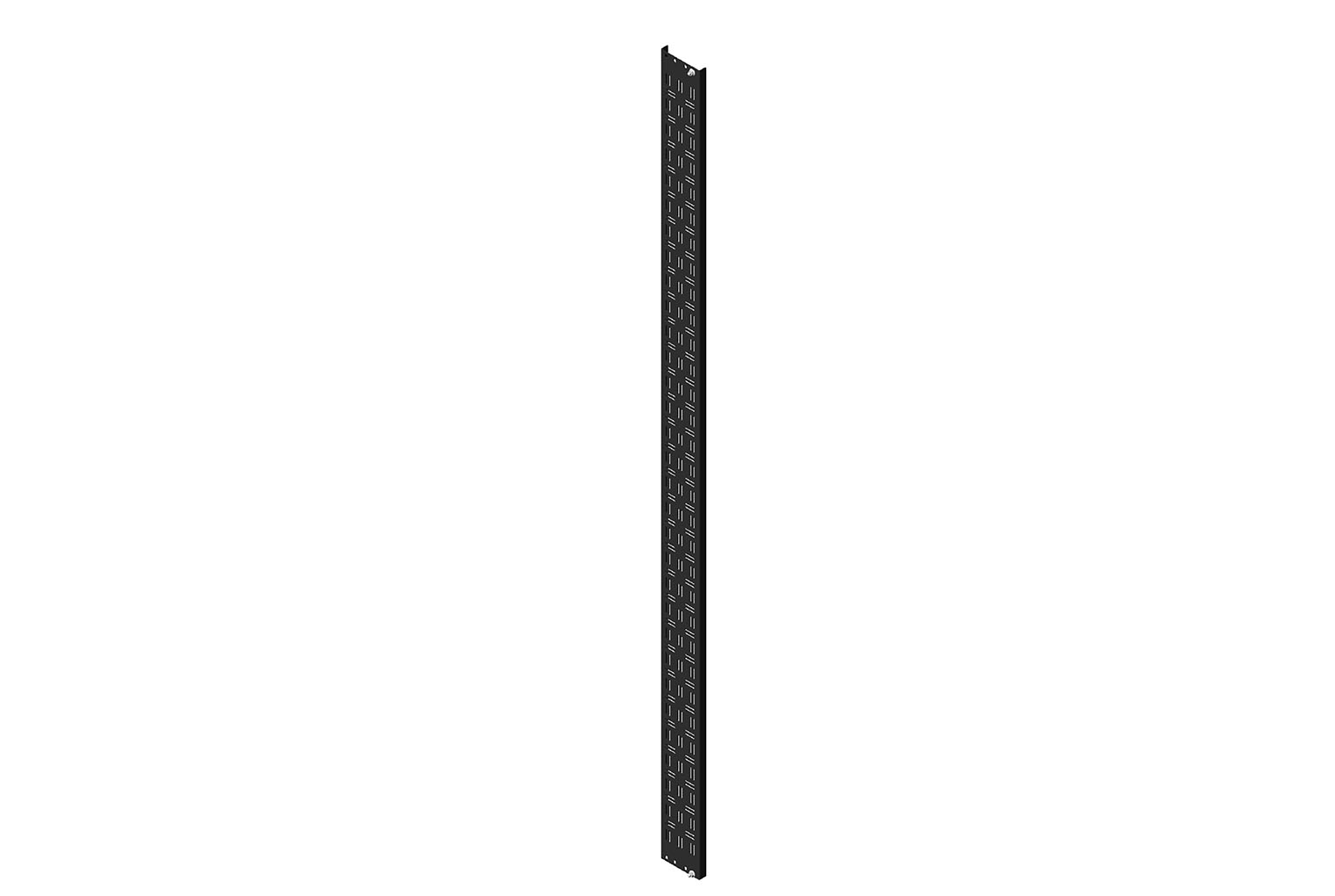

Vertical Lashing Bracket for CUBE-iT Cabinets provides multiple point for premise cables.
Height, Color

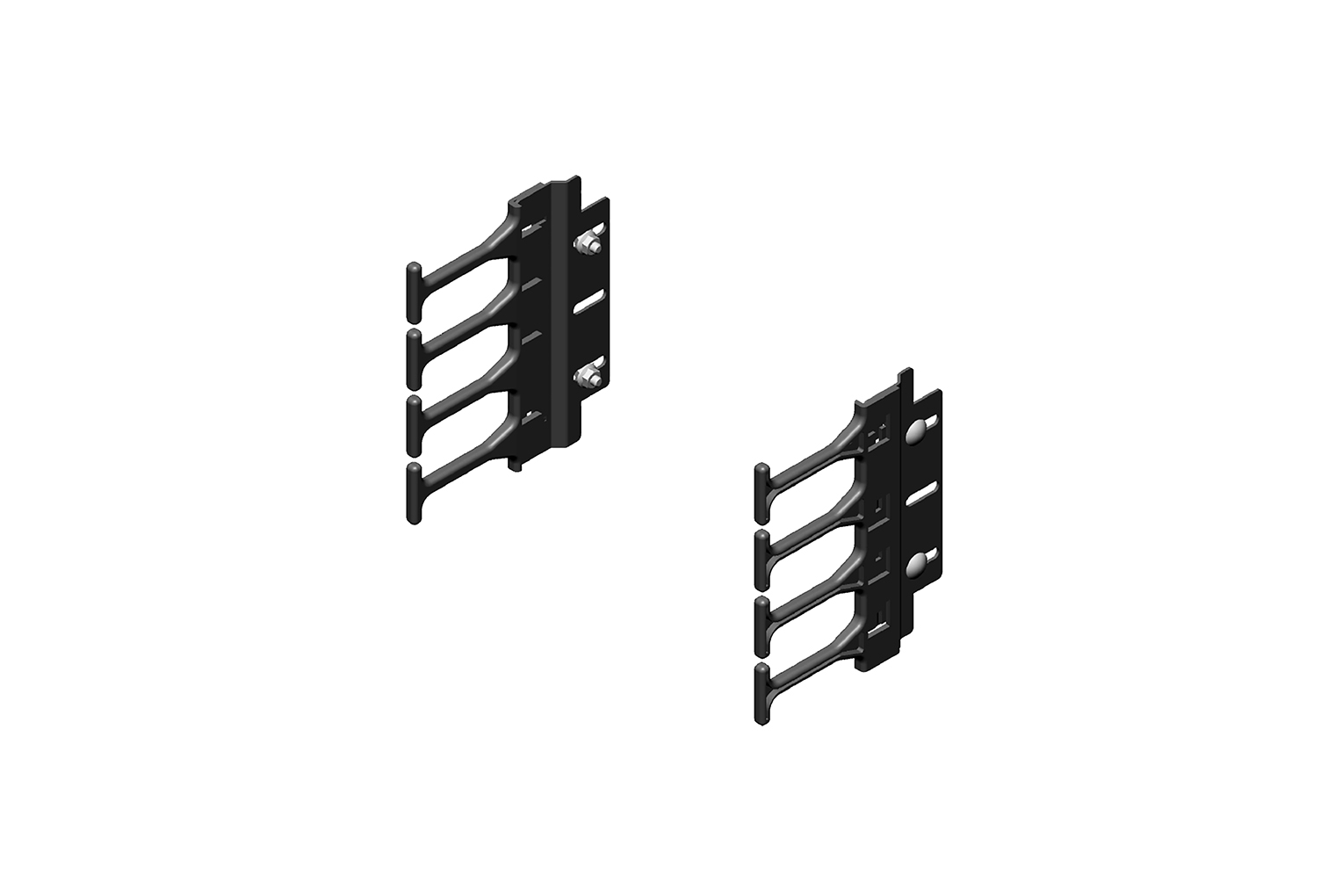

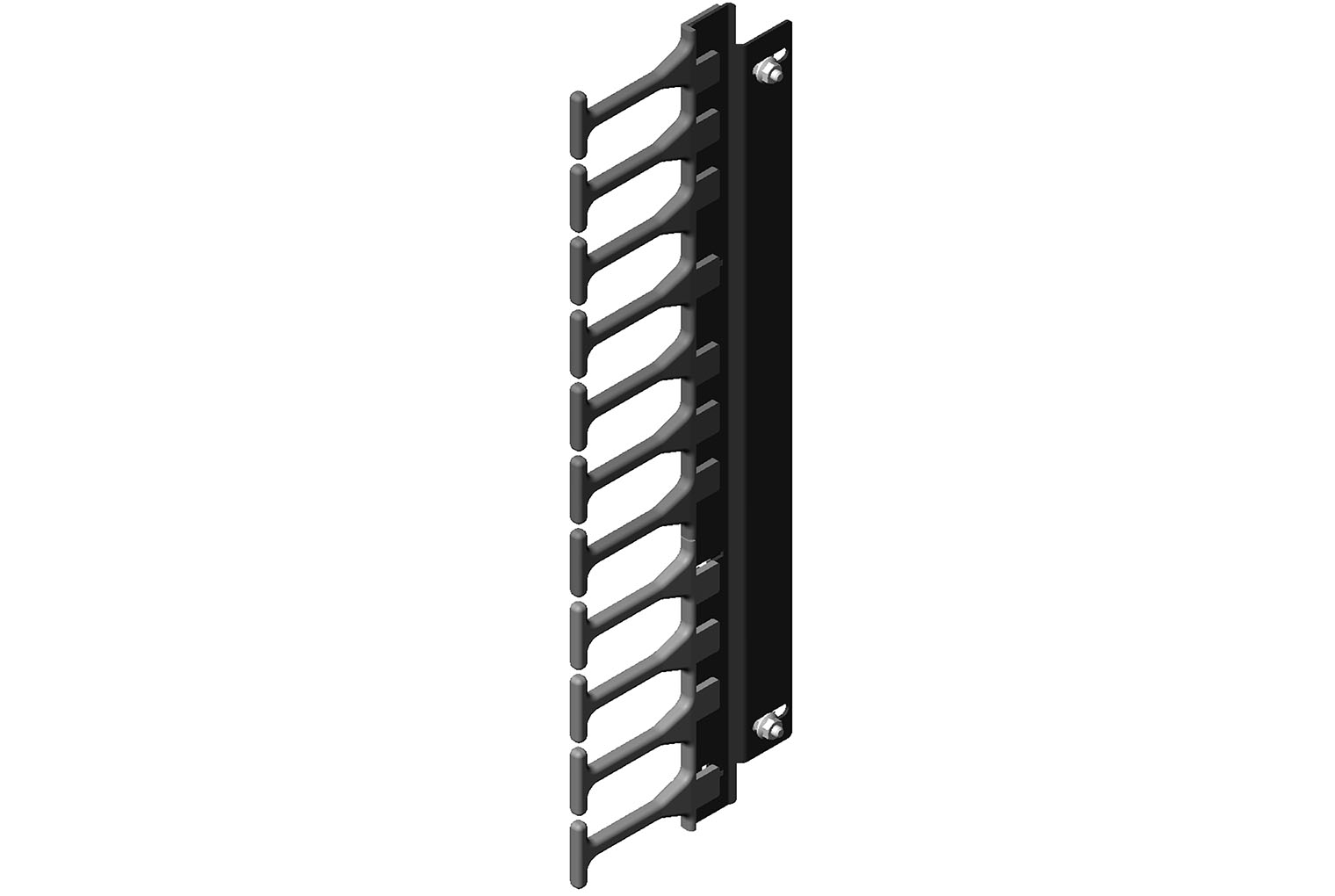

Vertical Cabling Section for CUBE-iT Cabinets attaches to the outside edge of equipment rails
Height

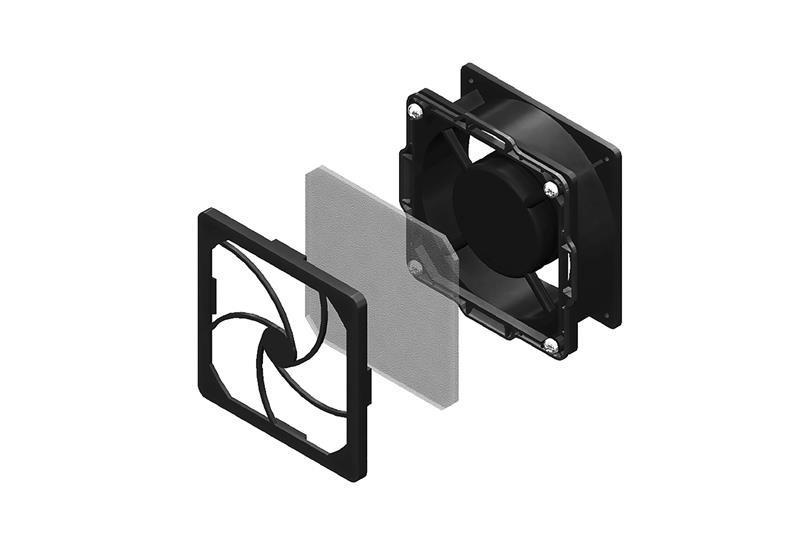

Low-decibel (31 dB), dual-fan option provides quiet operation while keeping active equipment cool
Volts, Plug

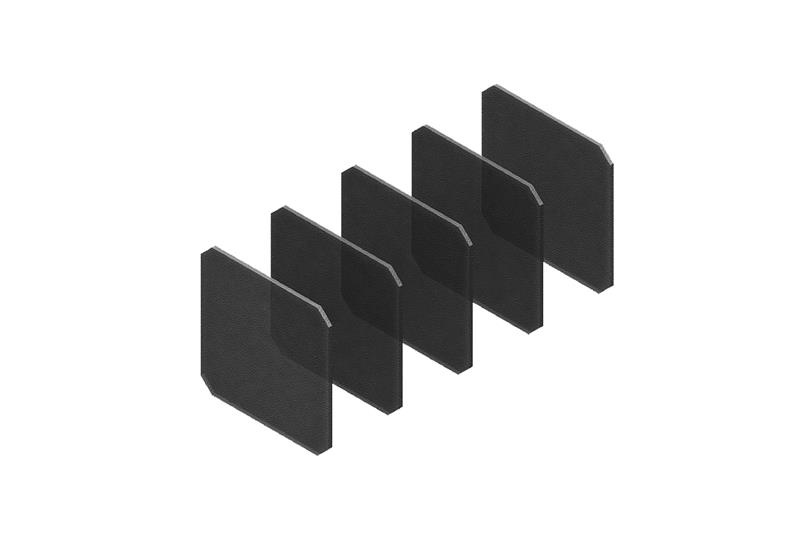

Replacement Filter Kit for CUBE-iT®Wall-Mount Cabinet; 5”H x 0.5”W x 5”D (127mm x 13mm x 127mm); Polyurethane; Gray; Pack of 5
Pressurizes interior of the cabinet, forcing warm air out of open vents
90 Degree Mounting Bracket for CUBE-iT Cabinet attaches to rear panel on CUBE-iT Cabinets. Creates a 19" EIA x 2U vertical rack-mount space.

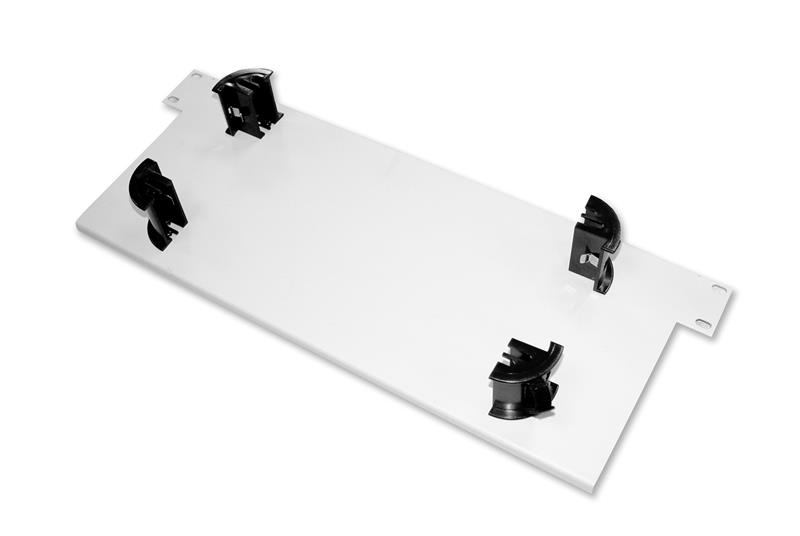

The Fiber Slack Manager Panel provides both fiber slack management and a mounting surface for a small fiber manager. Secured under the outermost mounting units, the panel takes up no mounting space within the cabinet. It attaches to the cabinet with standard #12-24 rack screws.

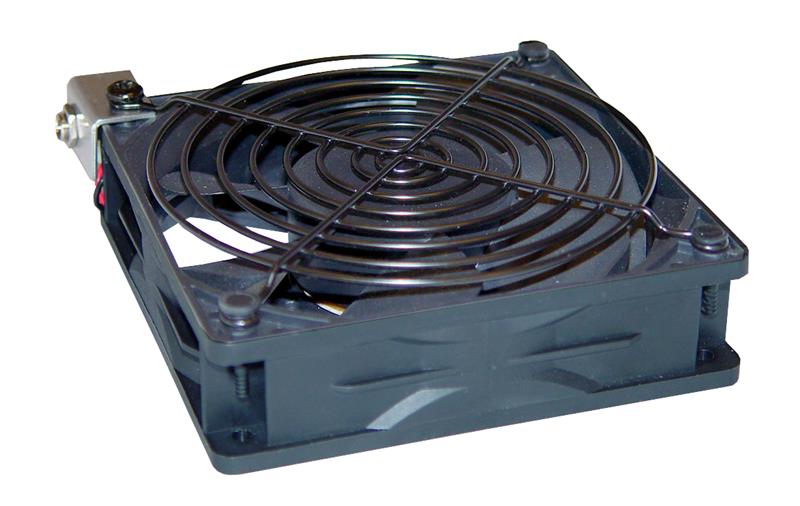

The ThinLine II Intelligent Fan Kit uses a solid state temperature control to vary fan speed from an ultra quiet low speed to low air temperature through increasingly higher speeds as temperature rises.
Cabinet Style

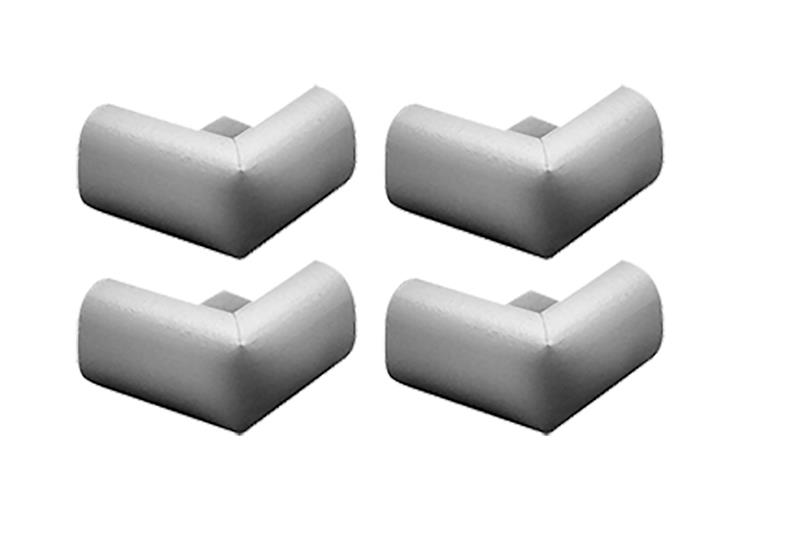

Corner Cushions; Gray; Set of 4

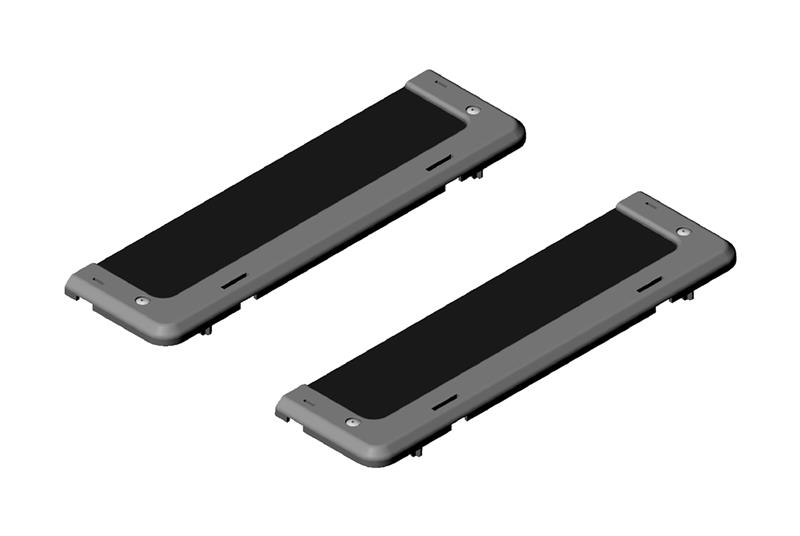

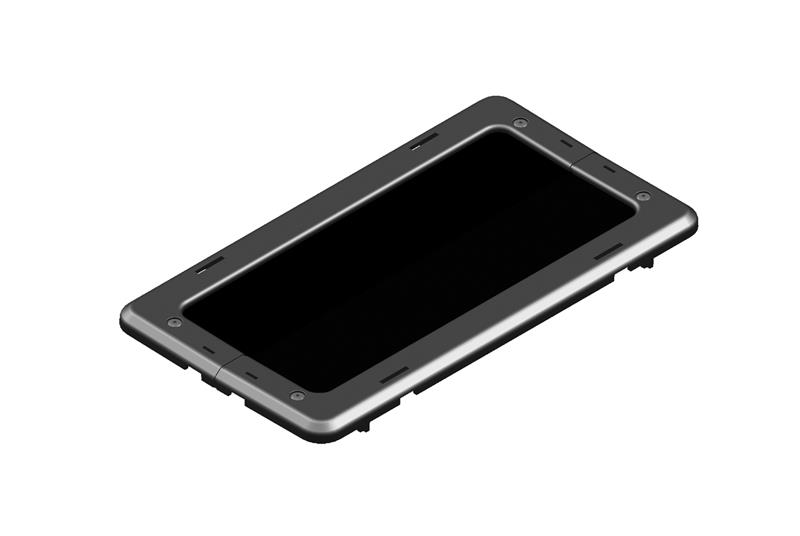

Cable Port Brush Kit; Top Panel; 2 Ports; GlobalFrame Cabinet; Black; 5.8'' (148 mm) W x 10.6'' (268 mm) D x 0.8'' (20 mm) H
Set of plastic grommets that cover cable openings in the equipment mounting rails in the wider cabinets to block airflow around equipment. Use with 27.6"W (700 mm) or 31.5"W (800 mm) rails.

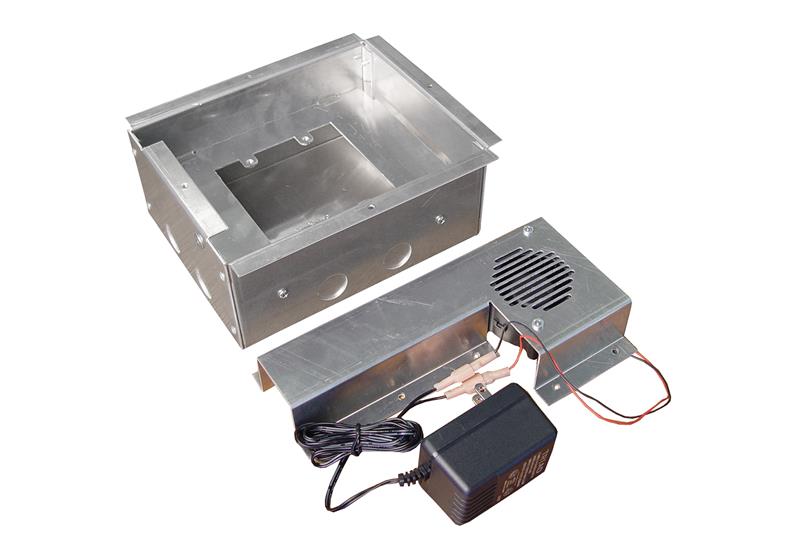

Ceiling Enclosure Fan Kit/Junction Box; for use with 13812-002 or 13812-003

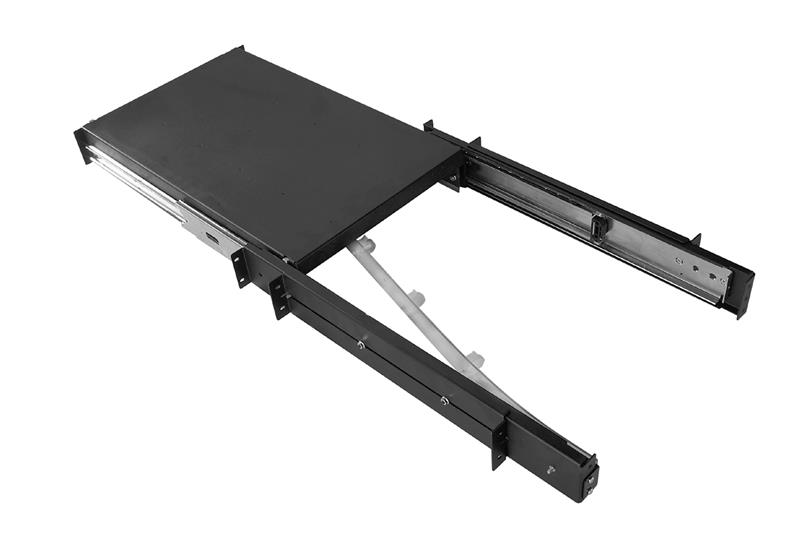

Specially designed to support heavy equipment. 2U x 19”W x 26”D (660 mm) sliding shelf, extends 24” (610 mm), adjusts between 20” and 34”
(510 mm and 860 mm) mounting depth. Supports up to 300 lb (136.1 kg).
Width, Color

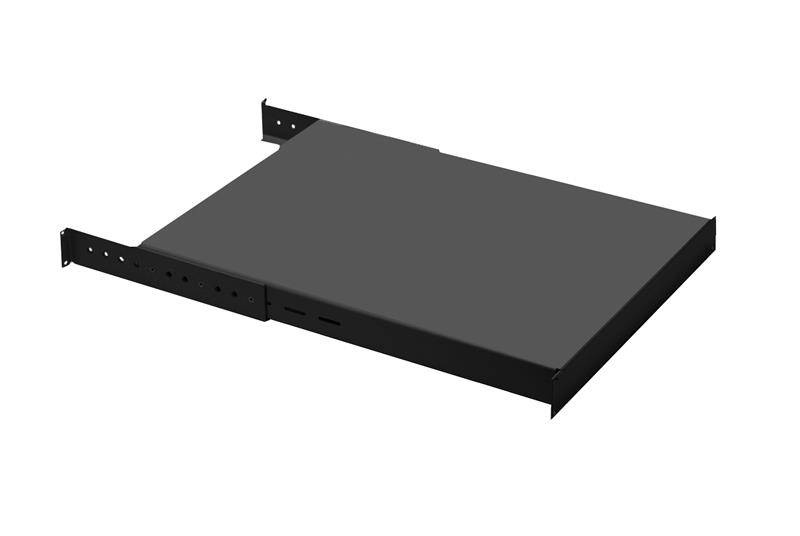

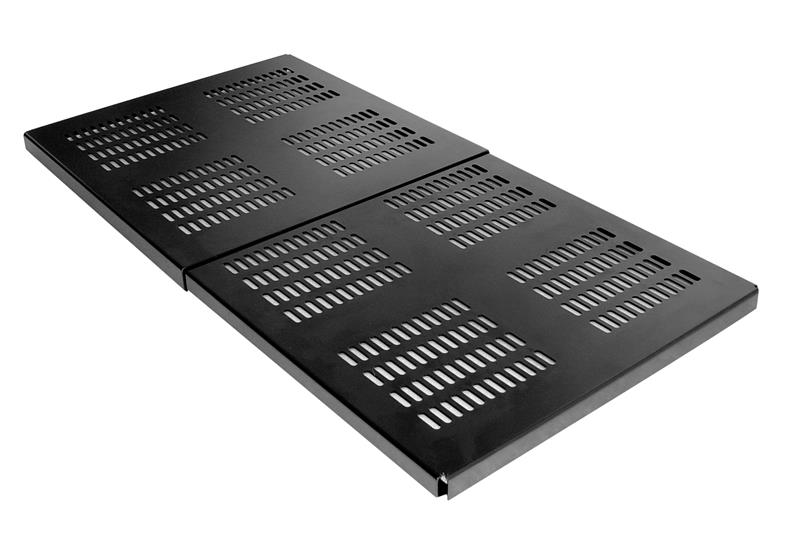

Use fixed shelves to support equipment without rack-mounted brackets such as modems, CPUs, small power supplies and monitors. Shelves mount to the Universal EIA 5/8”- 5/8”-1/2” (15.9 mm -15.9 mm -12.7 mm) alternating hole pattern of the four vertical mounting rails, and three depths are offered in 18”, 24” and 29” (460 mm, 610 mm and 740 mm). Shelves have adjustable mounting depths of 13” to 24” (330 mm to 610 mm) for the 18” (460 mm) shelf, 17” to 28” (430 mm to 710 mm) for the 24” (610 mm) shelf and 24” to 38” (610 mm to 970 mm) for the 29” (740 mm) shelf.
Width, Type, Color, Depth

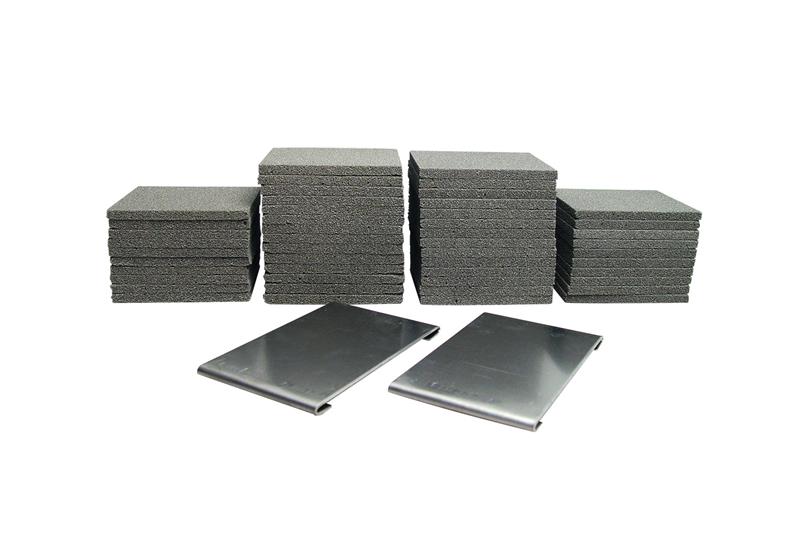

Replacement plenum rated foam kits for use with Raised Floor and Ceiling Zone Enclosures
Type

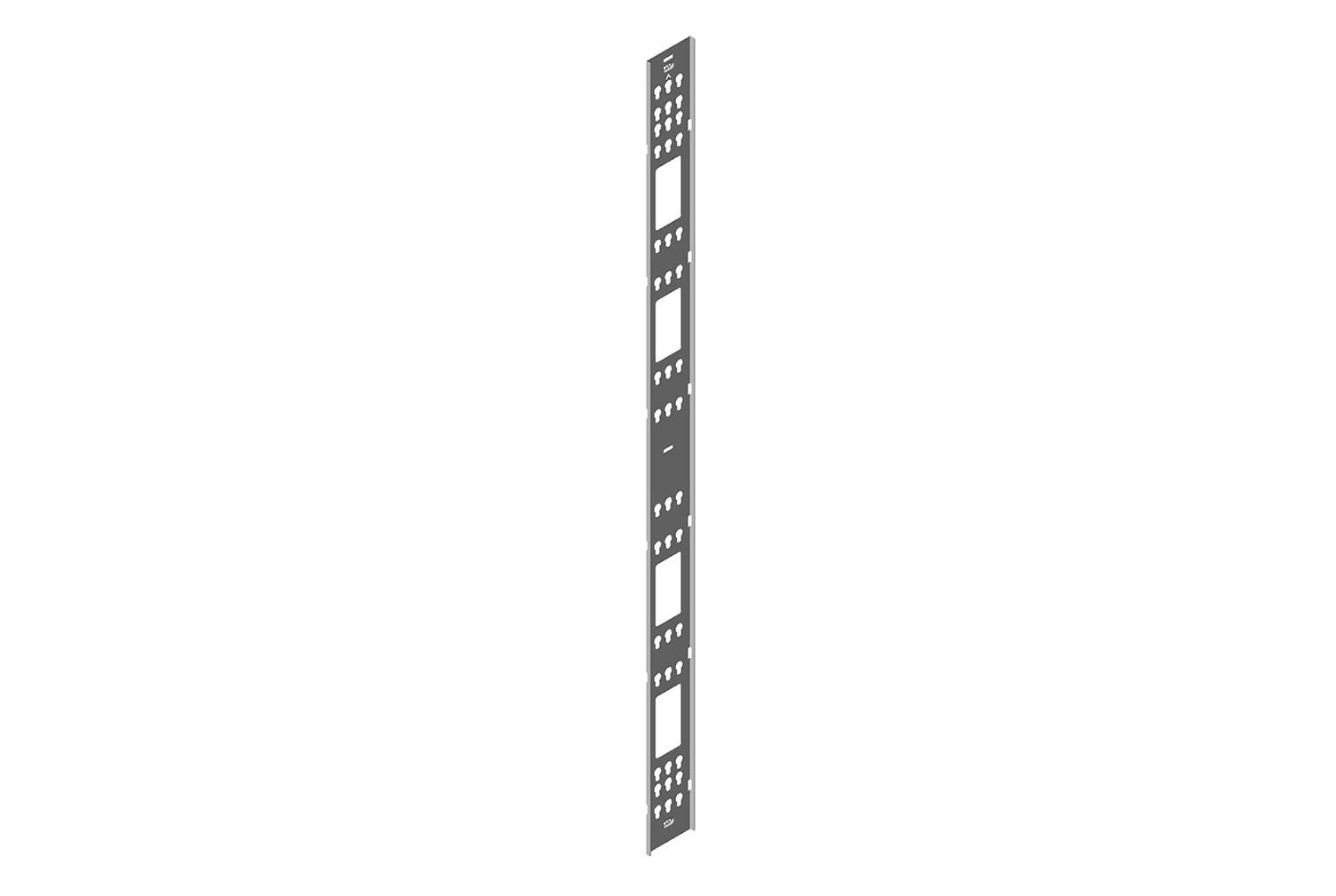

Full Height Dual PDU Bracket supports two vertical PDUs side-by-side and has multiple slots for CPI Saf-T-Grip® Straps or tie wraps to secure cords to the bracket. Two sizes available. For use with GF-Series GlobalFrame Gen 2 or F-Series TeraFrame Gen 3 Cabinets.

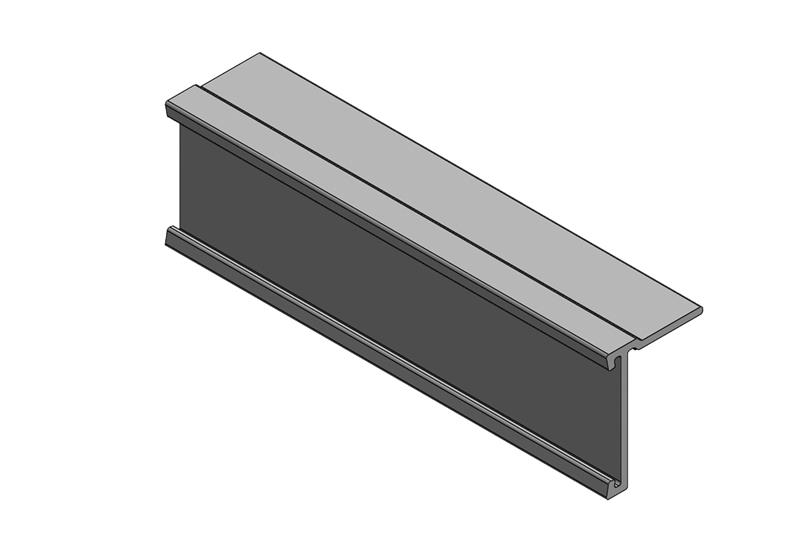

Convenient cabinet labeling provided with a dedicated holder to provide cabinet ID and IP address. Package of 12, Black

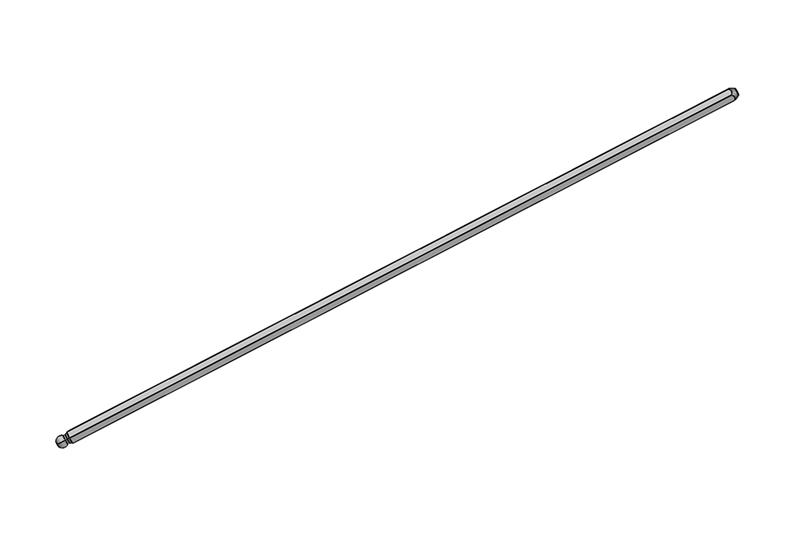

Accessible from inside the cabinet frame, the tooled hex drive leveling feet allow adjustment with 5 mm hex ball driver, which is attached to drill/driver, and is outside of the EIA path.

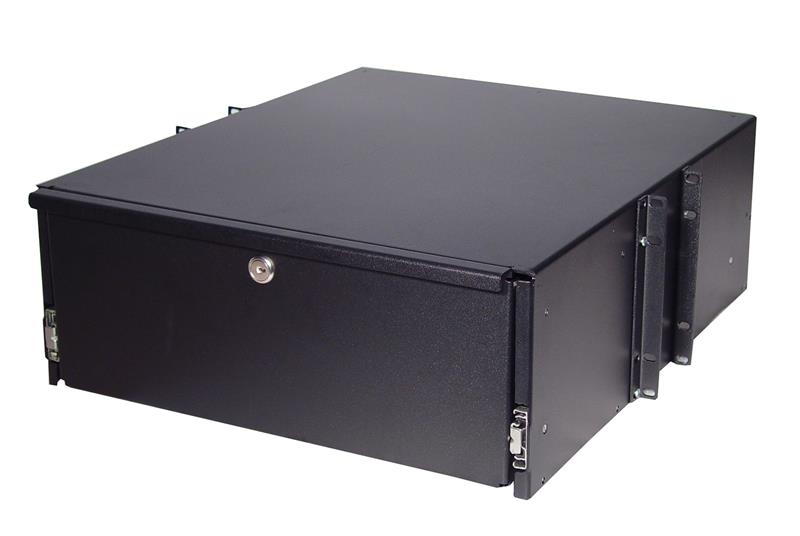

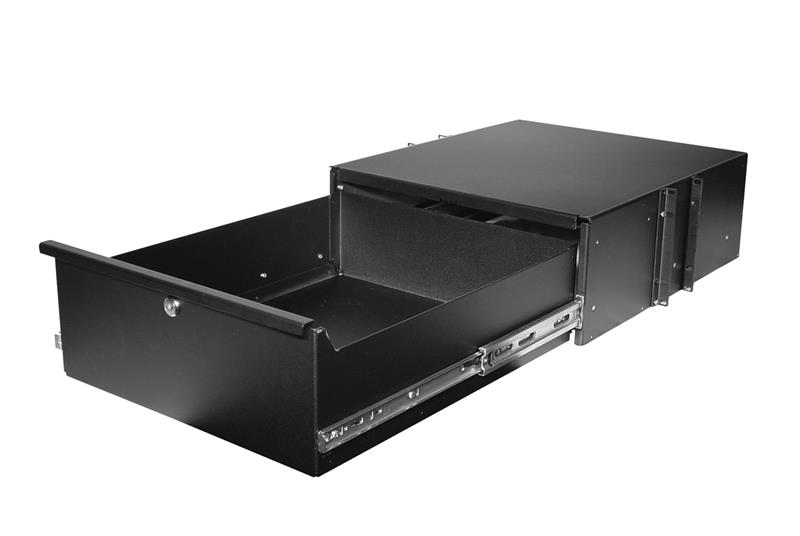

Lockable Storage Drawer is available for 19”W or 23”W racks and cabinets. It includes attachment brackets that allow center mounting on two-post racks with 3” or 6”D (80 mm or 150 mm) equipment channels, or front and rear attachment to four-post racks and cabinet systems with mounting rails that are adjusted between 24” and 39”D (610 mm and 990 mm).
Shelf provides a space-saving and money-saving alternative for storing non-rack mounted equipment without sacrificing CPI Style. This unique telescoping design delivers between 20" and 36" of continuous support for up to 100 pounds of equipment in less than 1 RMU of rack-mount space!
Width, Type, Color
Cover unused holes in the frame for hinges and installation brackets to prevent bypass airflow.

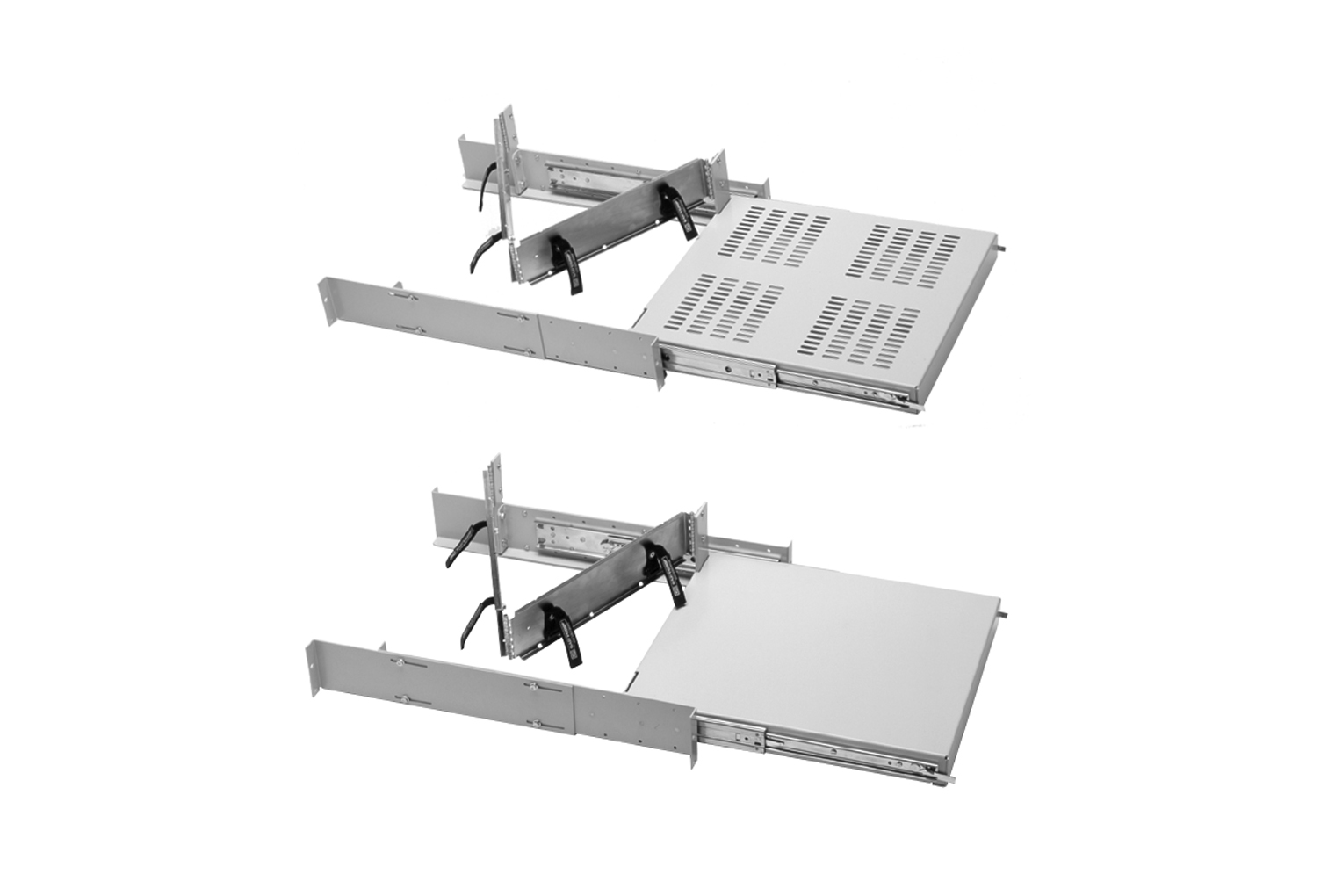

These specially designed shelves are suitable for applications where there is a need to access installed equipment for maintenance, upgrading, cleaning, etc. The pre-assembled cable management arm prevents tangles, twists and damage from cuts, kinks, etc. during shelf extension or retraction as well as maintaining proper bend radius of cable. Shelves mount to the four vertical mounting rails. Two depths are offered (18” and 24”) to provide clearance for cables, ventilation, power strips, etc. Shelves have adjustable mounting depths of 14” to 24” for the 18” shelf and 18” to 30” for the 24” shelf. Offered in either vented or non-vented styles. Vented shelves are designed to optimize air flow. Sold individually.
Width, Type, Depth, Color

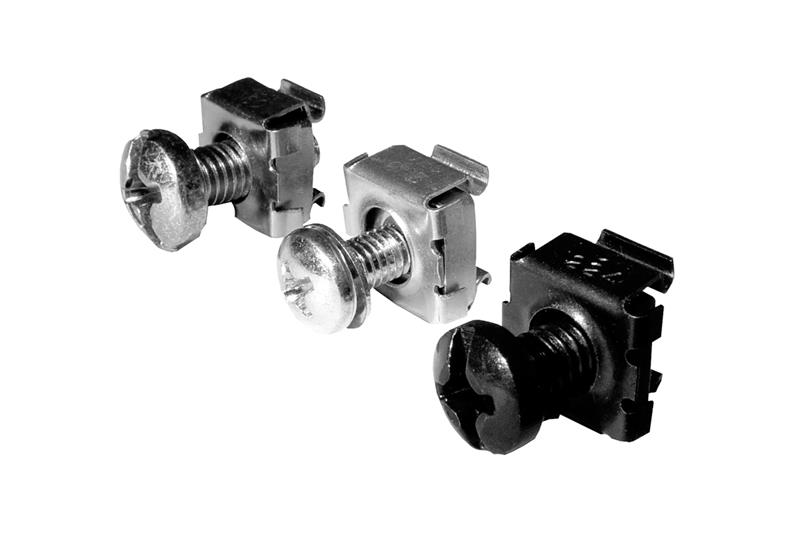

Square-Punched Hardware Kits; Several sizes available; M-6, 10-32, or 12-24; Package of 25
Used to attach Vertical PDUs to CPI Cabinet and Rack Systems.

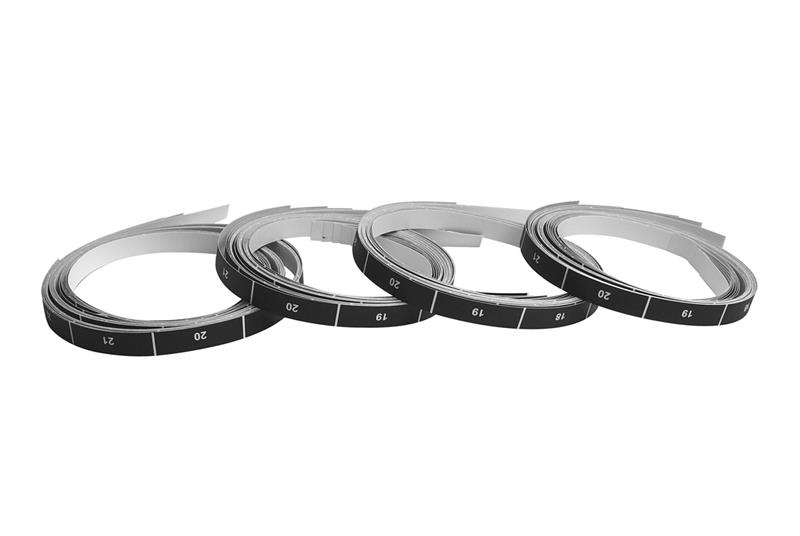

Kit contains four individual label packs, enough for four racks and four cabinets. Labels are constructed of 1/2' W (10 mm) durable polyester film with adhesive backing.
Height, Depth, Color, Door Style

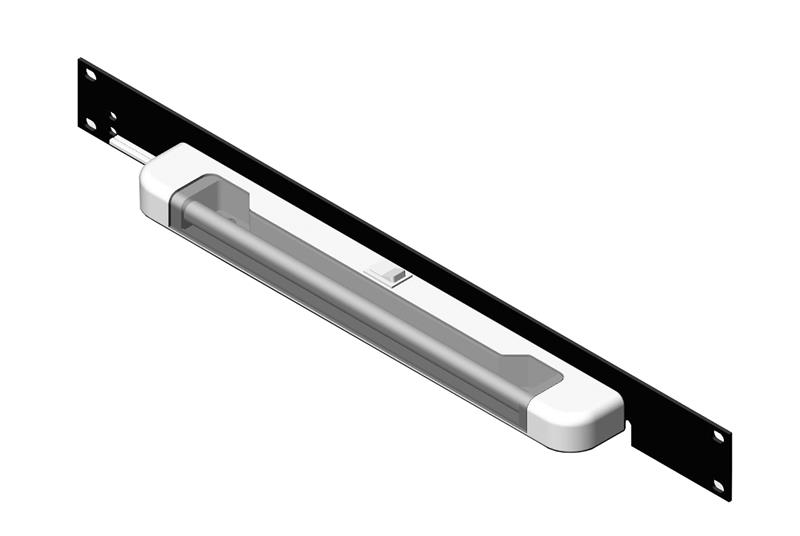

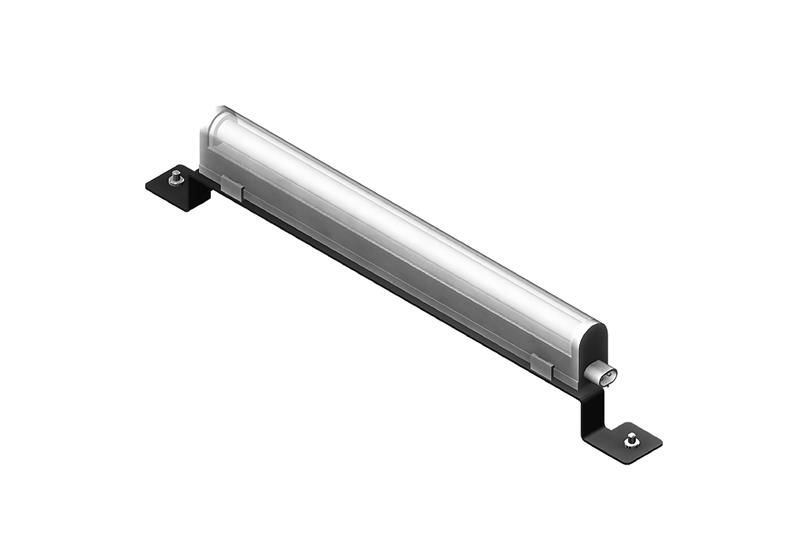

The Universal Cabinet Light fits any 19" or 23" EIA rack or cabinet. The 5 Watt LED Light Kit can be mounted in various orientations to direct additional illumination where it is most needed.
Front-to-Rear Cable Manager attaches to the back of equipment mounting rails creating a front-to-rear pathway between the front and rear mounting rails for cables. For use with GF-Series GlobalFrame Gen 2 or F-Series TeraFrame Gen 3 Cabinets.
Door Style, Color, Height
This 19 wide x 1 RMU shelf extends 22 (558 mm) to 40 (1016 mm) and has brush openings for cables along the front panel. Use with Air Dam Kit or Internal Air Duct to create a front-to-back pathway for cables without compromising the critical one way airflow through the cabinet. The shelf also provides slack management for fiber patch cords.
